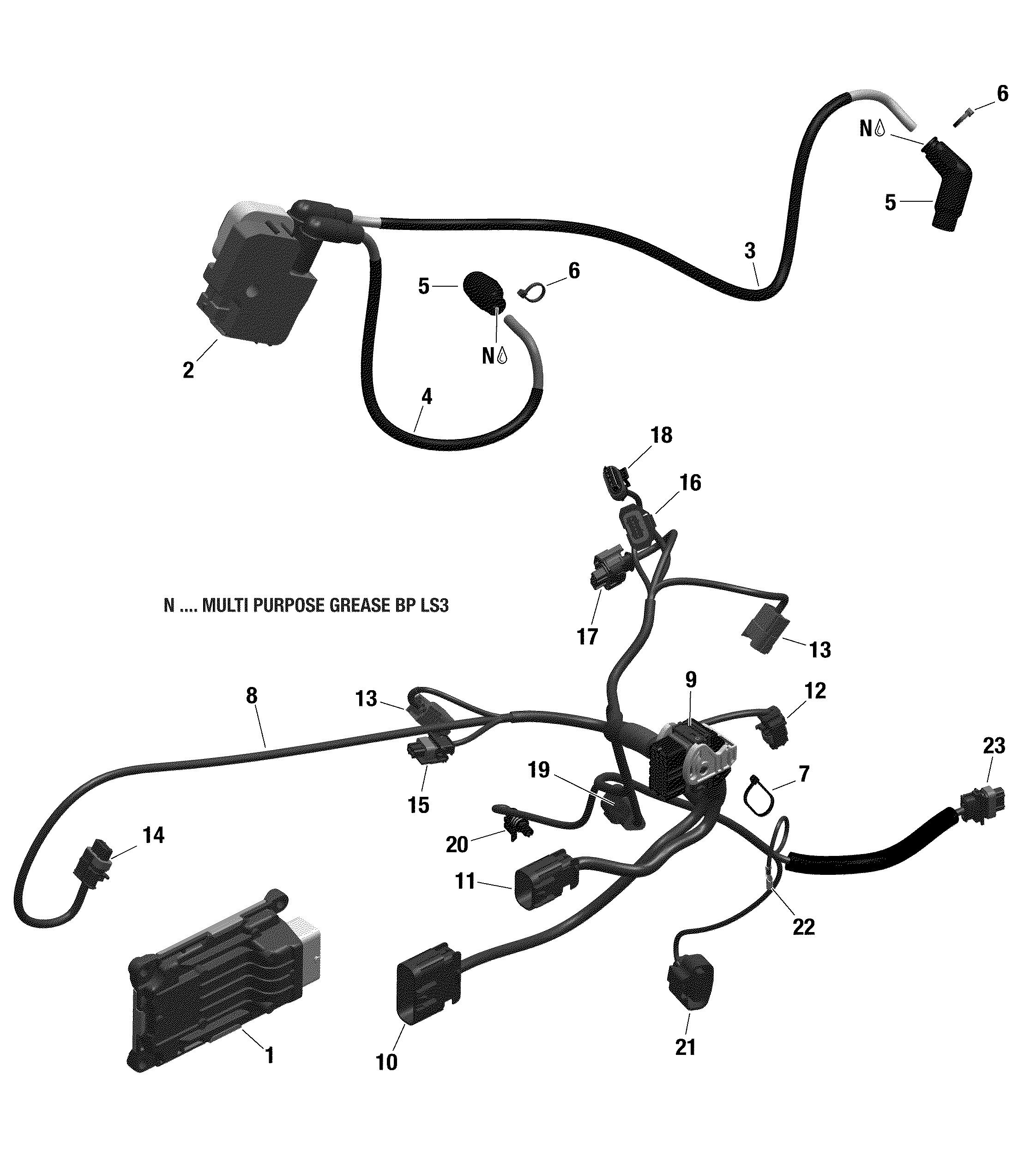

10- Engine Harness And Electronic Module Version 1 для BRP 003 - Outlander MAX 6X6 - 1000 EFI - North America - 2019
-
№АртикулНазвание
-
1420464033 Electronic ModuleElectronic Module
-
2>2a278001546 Ignition CoilIgnition Coil
-
2a710000568 HousingHousing
-
3420464150 Ignition Cable Ass'y 315MM MagIgnition Cable Ass'y 315MM Mag
-
4420464160 Ignition Cable Ass'y 570MM PTOIgnition Cable Ass'y 570MM PTO
-
5420265248 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie RapTie Rap
-
7293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
8>23420265951 Engine Wiring HarnessEngine Wiring Harness
-
10710001227 HousingHousing
-
11710001927 HousingHousing
-
12278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
14278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
15278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
16278001829 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
17515176410 Male ConnectorMale Connector
-
19278002378 Male HousingMale Housing
-
20278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
21710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
22278001009 Female TerminalFemale Terminal
-
22278001007 Insulated SheathInsulated Sheath
-
23278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
