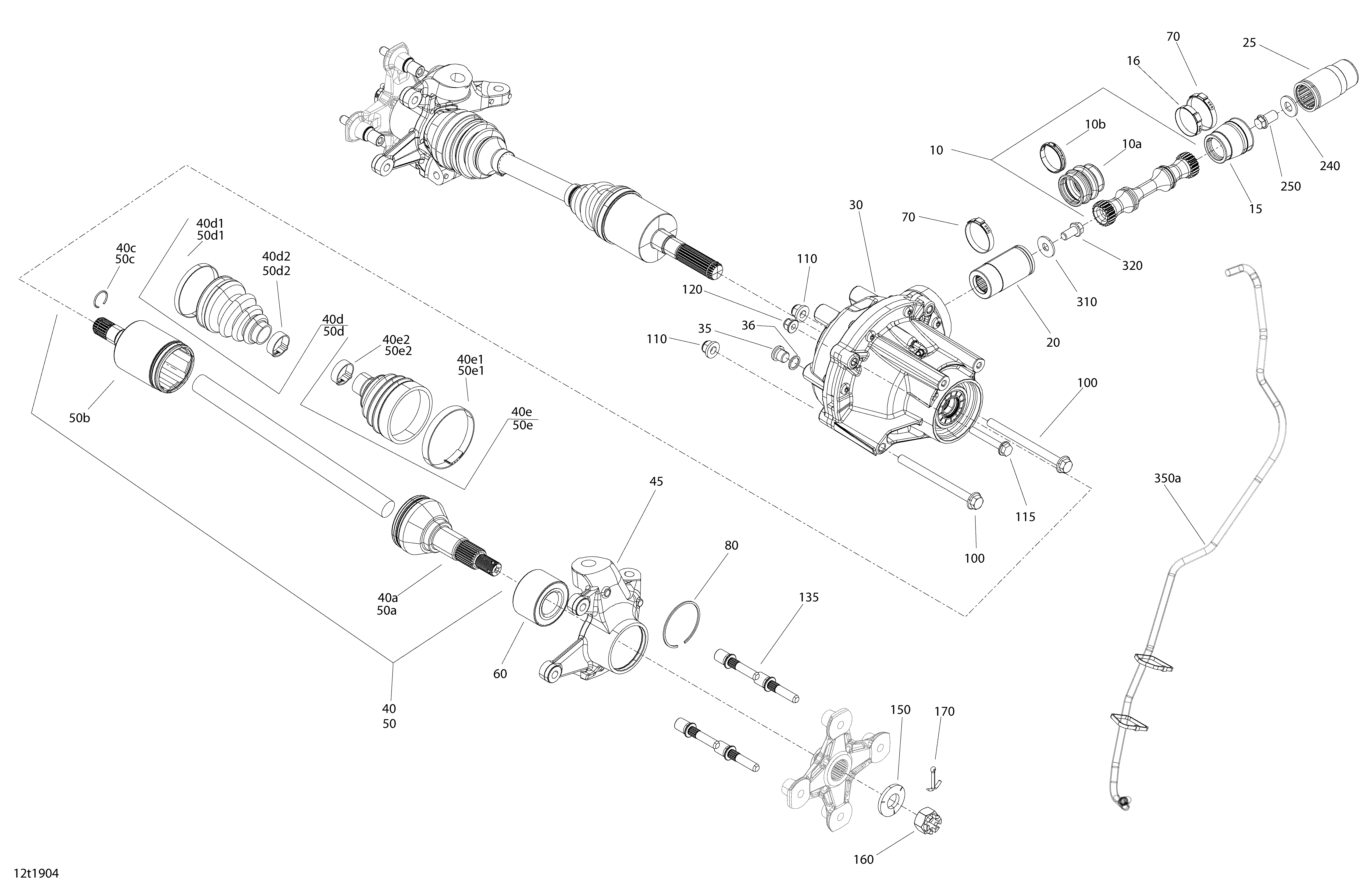

07- Front Drive - 6X6 - Common Parts для BRP 002 - Outlander MAX 6X6 - 650 EFI - North America - 2019
-
№АртикулНазвание
-
10705400913 Front Drive Axle Ass'y. Includes 10 to 10bFront Drive Axle Ass'y. Includes 10 to 10b
-
10a715900118 Rubber BootRubber Boot
-
10b509000045 Oetiker Gear ClampOetiker Gear Clamp
-
15705401093 Rubber BootRubber Boot
-
16293650199 Oetiker Gear ClampOetiker Gear Clamp
-
20705401969 Coupling-SleeveCoupling-Sleeve
-
25703500678 Front Bushing Shaft Kit. Includes 25 to 25aFront Bushing Shaft Kit. Includes 25 to 25a
-
25a705400036 Wear RingWear Ring
-
30703500908 Front Differential. Includes 30 to 30yFront Differential. Includes 30 to 30y
-
35705500504 Fill Level PlugFill Level Plug
-
36705500506 Copper WasherCopper Washer
-
40705402236 RH CV Joint. Includes 40 to 40e2RH CV Joint. Includes 40 to 40e2
-
40a705401344 CV JointCV Joint
-
40b705401348 RH Plunging JointRH Plunging Joint
-
40c705401349 Circlip JointCirclip Joint
-
40d705401345 Boot Kit, Wheel Side. Includes 40d to 40d2Boot Kit, Wheel Side. Includes 40d to 40d2
-
40d1715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
40d2715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
40e705401346 Boot Kit, Differential Side. Includes 40e to 40e2Boot Kit, Differential Side. Includes 40e to 40e2
-
40e1715900284 Oetiker Clamp, LargeOetiker Clamp, Large
-
40e2715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
45705401290 LH KnuckleLH Knuckle
-
46705401291 RH KnuckleRH Knuckle
-
50705402235 LH CV Joint. Includes 50 to 50jLH CV Joint. Includes 50 to 50j
-
50a705401344 CV JointCV Joint
-
50b705401350 LH Plunging JointLH Plunging Joint
-
50c705401349 Circlip JointCirclip Joint
-
50d705401345 Boot Kit, Wheel Side. Includes 50d to 50d2Boot Kit, Wheel Side. Includes 50d to 50d2
-
50d1715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
50d2715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
50e705401346 Boot Kit, Differential Side. Includes 50e to 50e2Boot Kit, Differential Side. Includes 50e to 50e2
-
50e1715900284 Oetiker Clamp, LargeOetiker Clamp, Large
-
50e2715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
60293350118 Cone BearingCone Bearing
-
70293650138 Oetiker Gear ClampOetiker Gear Clamp
-
80293370019 CirclipCirclip
-
100230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
110233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
115207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
120233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
135250300643 Wheel StudWheel Stud
-
150250200171 Conical Spring Washer M18Conical Spring Washer M18
-
160250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
170250400071 Cotter PinCotter Pin
-
240250200102 Flat Washer M12Flat Washer M12
-
250250001042 Hex Flanged Screw M12 X 20Hex Flanged Screw M12 X 20
-
310250200014 Flat Washer M10Flat Washer M10
-
320250001046 Hex Flanged Screw M10 X 20 S.GRIPHex Flanged Screw M10 X 20 S.GRIP
-
350a293830193 Polyurethane HosePolyurethane Hose
