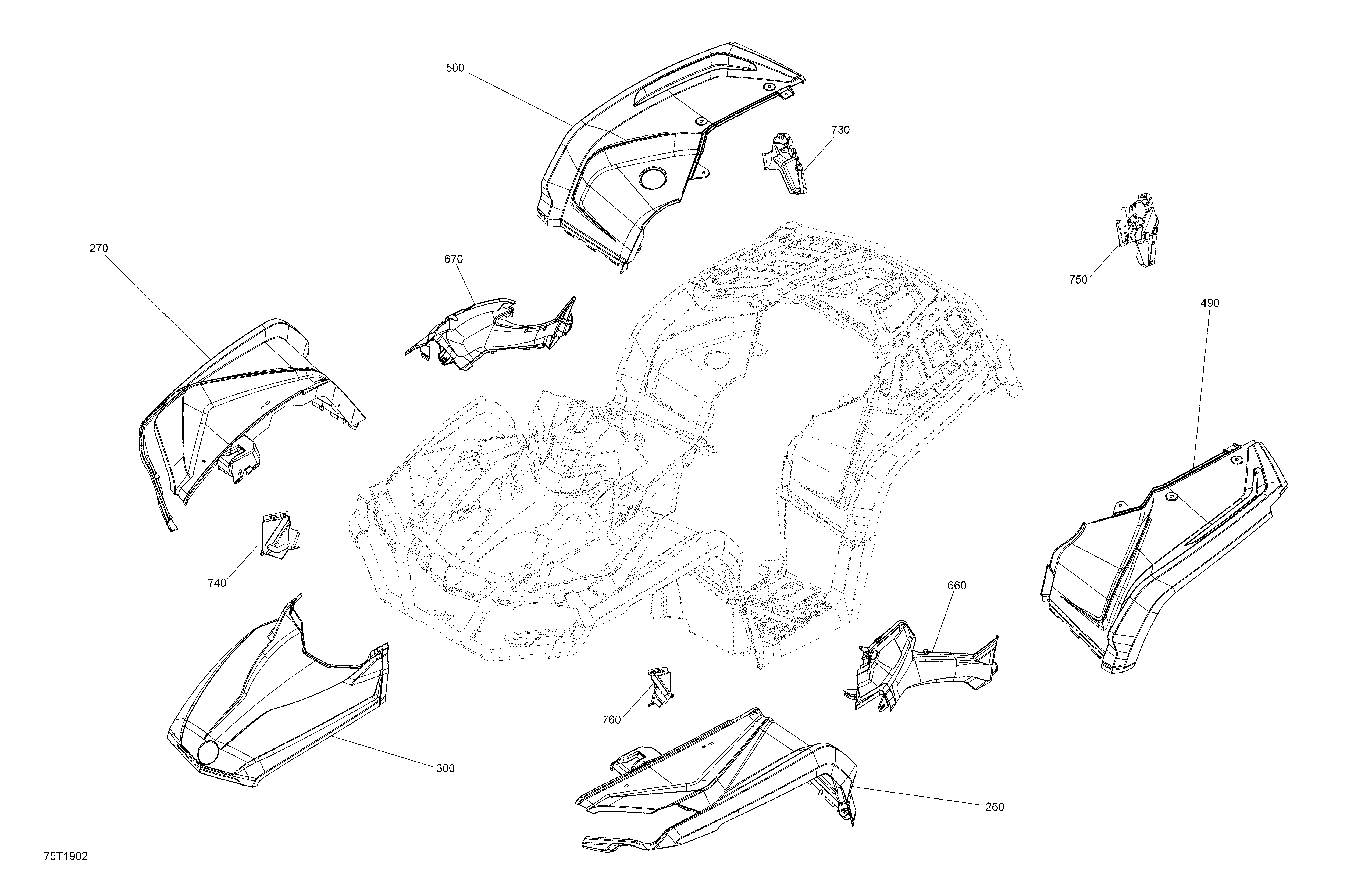

09- Fender And Central Panel Kit - Package XT для BRP 002 - Outlander 850 EFI - North America - 2019
-
№АртикулНазвание
-
260715005614 Timeless Back LH Front Fender Kit. Timeless BlackTimeless Back LH Front Fender Kit. Timeless Black
-
260715005645 Camo, LH Front Fender Kit. CamoCamo, LH Front Fender Kit. Camo
-
260715005637 Intense Red, LH Front Fender Kit. Intense RedIntense Red, LH Front Fender Kit. Intense Red
-
270715005661 Timeless Black RH Front Fender Kit. Timeless BlackTimeless Black RH Front Fender Kit. Timeless Black
-
270715005686 Camo, RH Front Fender Kit. CamoCamo, RH Front Fender Kit. Camo
-
270715005681 Intense Red, RH Front Fender Kit. Intense RedIntense Red, RH Front Fender Kit. Intense Red
-
290705004565 Lower Fender SupportLower Fender Support
-
300715005796 Breakup Country, Hood Kit . CamoBreakup Country, Hood Kit . Camo
-
300715004655 Intense Red, Hood Kit. Intense RedIntense Red, Hood Kit. Intense Red
-
300715004679 Black, Hood Kit. Timeless BlackBlack, Hood Kit. Timeless Black
-
490715005725 Timeless Black LH Rear Fender Kit. Timeless BlackTimeless Black LH Rear Fender Kit. Timeless Black
-
490715005767 Camo, LH Rear Fender Kit. CamoCamo, LH Rear Fender Kit. Camo
-
490715005755 Intense Red, LH Rear Fender Kit. Intense RedIntense Red, LH Rear Fender Kit. Intense Red
-
500705013850 Black, RH Rear Fender Kit. Timeless BlackBlack, RH Rear Fender Kit. Timeless Black
-
500705013852 Camo, RH Rear Fender Kit . CamoCamo, RH Rear Fender Kit . Camo
-
500705013848 Intense Red, RH Rear Fender Kit. Intense RedIntense Red, RH Rear Fender Kit. Intense Red
-
660705009903 Camo, LH Lateral Pannel. CamoCamo, LH Lateral Pannel. Camo
-
660705012043 Intense Red, LH Lateral Pannel. Intense RedIntense Red, LH Lateral Pannel. Intense Red
-
660705012116 Black, LH Lateral Pannel. Timeless BlackBlack, LH Lateral Pannel. Timeless Black
-
670705009912 Camo, RH Lateral Pannel. CamoCamo, RH Lateral Pannel. Camo
-
670705012044 Intense Red, RH Lateral Pannel. Intense RedIntense Red, RH Lateral Pannel. Intense Red
-
670705012117 Black, RH Lateral Pannel. Timeless BlackBlack, RH Lateral Pannel. Timeless Black
-
730705011462 RH Rear Inner FenderRH Rear Inner Fender
-
740705011463 RH Front Inner FenderRH Front Inner Fender
-
750705013111 LH Rear Inner FenderLH Rear Inner Fender
-
760705011465 LH Front Inner FenderLH Front Inner Fender
