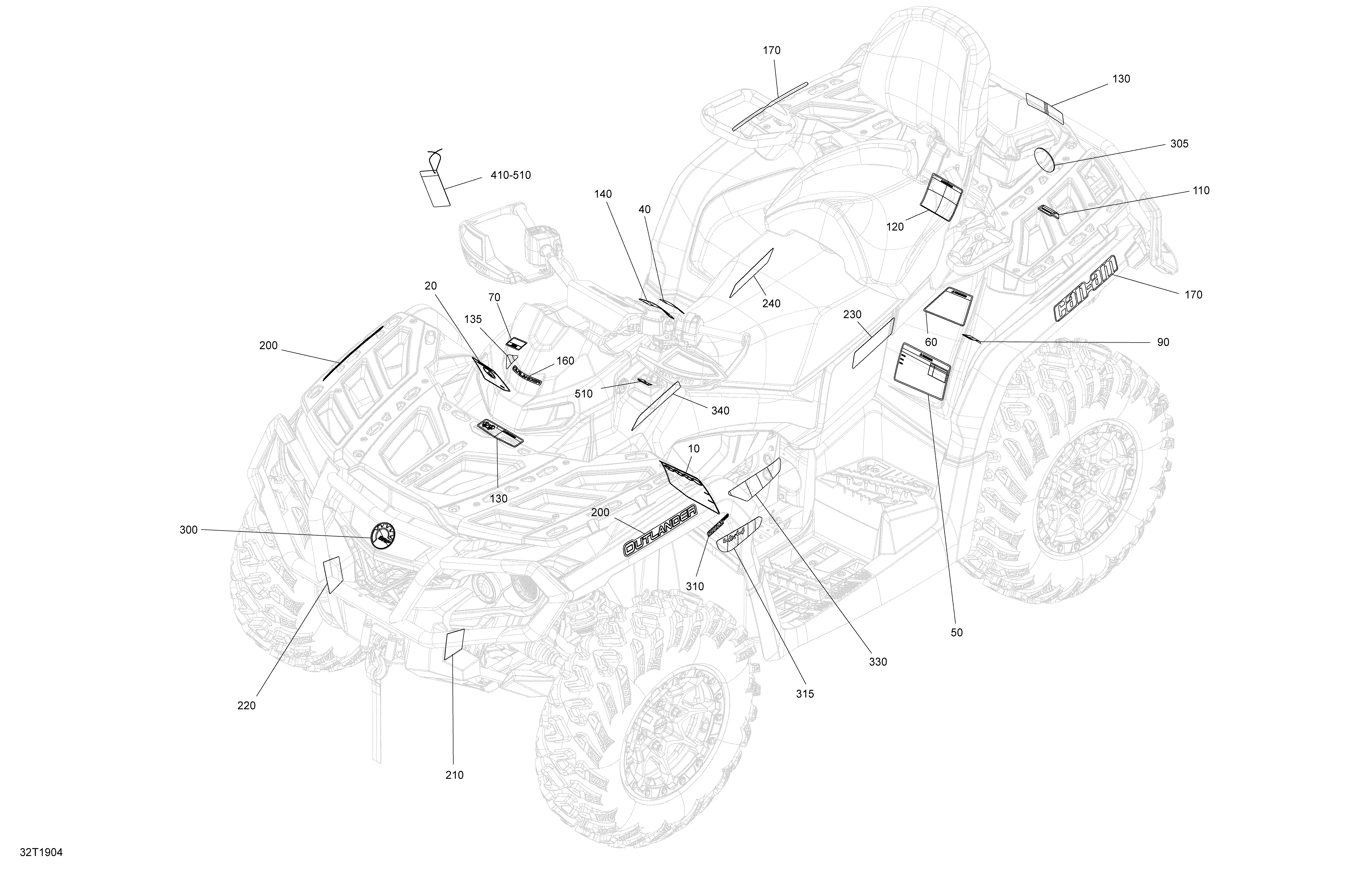

09- Decals STD для BRP 004 - Outlander MAX 570 EFI - North America - 2019
-
№АртикулНазвание
-
10704907256 Warning Decal, Death and InjuriesWarning Decal, Death and Injuries
-
20704905678 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
40704905680 Transport Canada LabelTransport Canada Label
-
50704906307 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
60704906852 Warning Decal, PassengerWarning Decal, Passenger
-
70704905695 Warning Decal, Shifting LeverWarning Decal, Shifting Lever
-
90704906853 Warning Decal, Loading/TowingWarning Decal, Loading/Towing
-
110704905698 Warning DecalWarning Decal
-
120704905700 Warning Decal, Seat PassengerWarning Decal, Seat Passenger
-
130704905702 Warning Decal, Luggage RackWarning Decal, Luggage Rack
-
135704905706 Warning Decal, Hot LiquidWarning Decal, Hot Liquid
-
140704905707 Warning Decal, PerformanceWarning Decal, Performance
-
160704905723 Console DecalConsole Decal
-
170704905727 Can-Am DecalCan-Am Decal
-
200704905733 Outlander DecalOutlander Decal
-
210704903972 LH Side Front ReflectorLH Side Front Reflector
-
220704903973 RH Side Front ReflectorRH Side Front Reflector
-
300516008739 BRP Logo, 68mmBRP Logo, 68mm
-
305516008738 BRP Logo, 48mmBRP Logo, 48mm
-
310704905746 Rotax Power DecalRotax Power Decal
-
315704905747 4X4 Visco-Lok Decal4X4 Visco-Lok Decal
-
330704905749 LH 570 Engine DecalLH 570 Engine Decal
-
340704905753 RH 570 Engine DecalRH 570 Engine Decal
-
410704903314 Warning Decal, General Use ModelWarning Decal, General Use Model
-
510704905664 Decal, KeyDecal, Key
