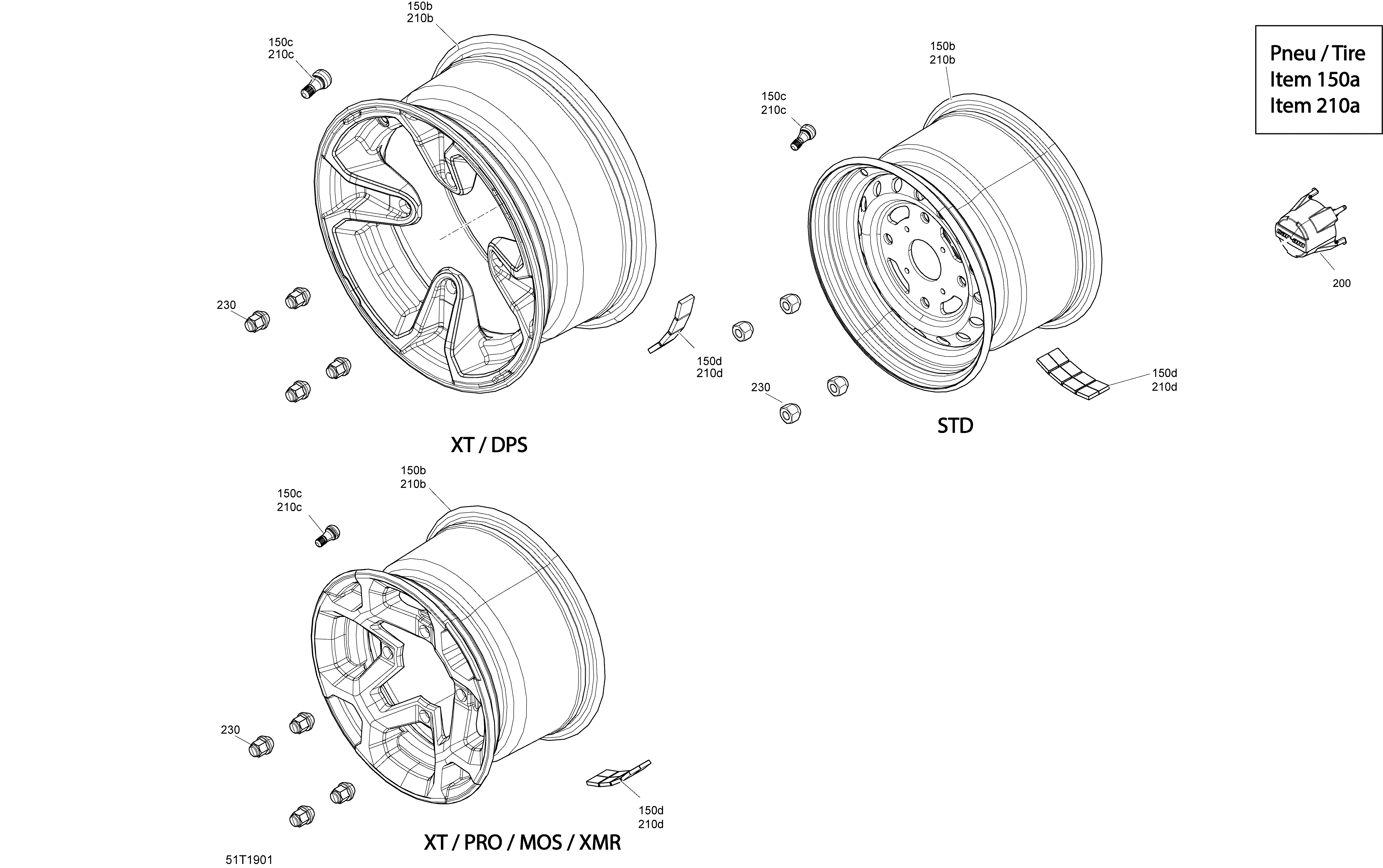

07- Wheels - DPS для BRP 002 - Outlander 570 EFI - North America - 2019
-
№АртикулНазвание
-
150a705502164 Tire. RearTire. Rear
-
150b705501934 Silver Rim. Squadron Green. RearSilver Rim. Squadron Green. Rear
-
150b705502034 Black Rim. All Except Squadron Green. RearBlack Rim. All Except Squadron Green. Rear
-
150c705400193 Rim Valve With CapRim Valve With Cap
-
150d705501385 1/2 OZ Weight1/2 OZ Weight
-
165293000110 Valve CapValve Cap
-
170250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
200705400928 Wheel CapWheel Cap
-
210a705401625 Tire. FrontTire. Front
-
210b705401402 Silver Rim. Squadron Green. FrontSilver Rim. Squadron Green. Front
-
210b705401522 Black Rim. All Except Squadron Green. FrontBlack Rim. All Except Squadron Green. Front
-
210c705400193 Rim Valve With CapRim Valve With Cap
-
210d705501385 1/2 OZ Weight1/2 OZ Weight
-
230250100184 Black Wheel Nut M10 X 1.25. All Except Squadron GreenBlack Wheel Nut M10 X 1.25. All Except Squadron Green
-
230250100185 Chrome Wheel Nut M10 X 1.25. Squadron GreenChrome Wheel Nut M10 X 1.25. Squadron Green
-
280705400928 Wheel CapWheel Cap
