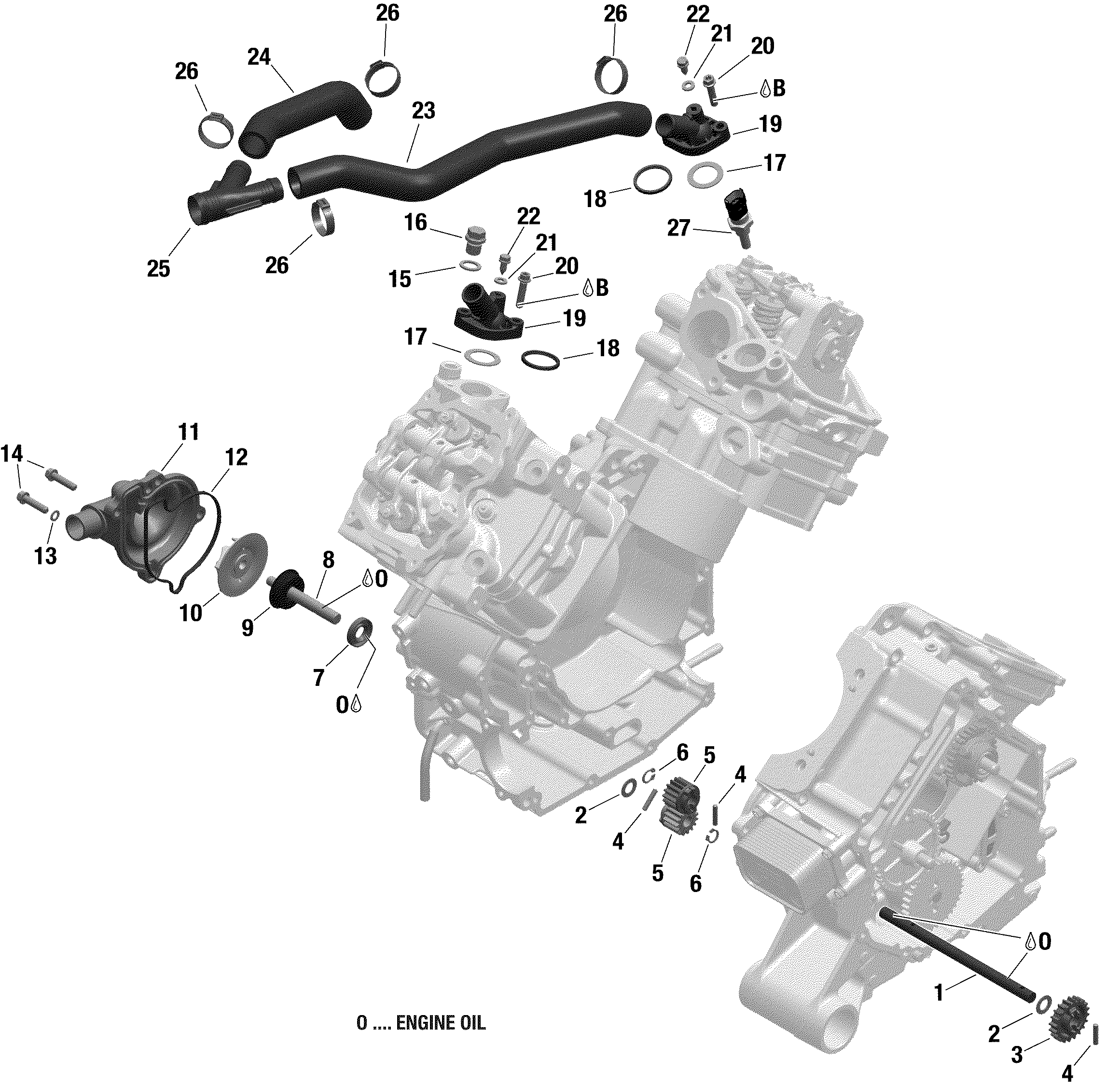

01- Engine Cooling New T3 для BRP 2- Renegade T3 1000 EFI - 2018
-
№АртикулНазвание
-
1420620500 Intermediate ShaftIntermediate Shaft
-
2420827590 Thrust WasherThrust Washer
-
3420434330 Water Pump GearWater Pump Gear
-
4420232420 Needle PinNeedle Pin
-
5420234627 Pump Gear, 15 TeethPump Gear, 15 Teeth
-
6504152282 CirclipCirclip
-
7420650310 Oil SealOil Seal
-
8420620175 Water Pump Shaft Ass'y. Includes 8 to 9Water Pump Shaft Ass'y. Includes 8 to 9
-
9420650370 Rotary SealRotary Seal
-
10420822750 Water ImpellerWater Impeller
-
11
-
12420651190 GasketGasket
-
13420230415 Seal WasherSeal Washer
-
14420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
15420250640 Copper WasherCopper Washer
-
16420841921 Plug Screw M12 X 1.5Plug Screw M12 X 1.5
-
17420927837 Spacer Ass'y. Includes 17 to 18Spacer Ass'y. Includes 17 to 18
-
18420650300 Thermostat GasketThermostat Gasket
-
19420222691 Thermostat CoverThermostat Cover
-
20420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
21420650255 Gasket RingGasket Ring
-
22420441621 Screw M5 X 16Screw M5 X 16
-
23420822692 Rear Head HoseRear Head Hose
-
24420822697 Front Head HoseFront Head Hose
-
25709200273 Y-FittingY-Fitting
-
26420251578 ClampClamp
-
27278002895 Temperature SensorTemperature Sensor
