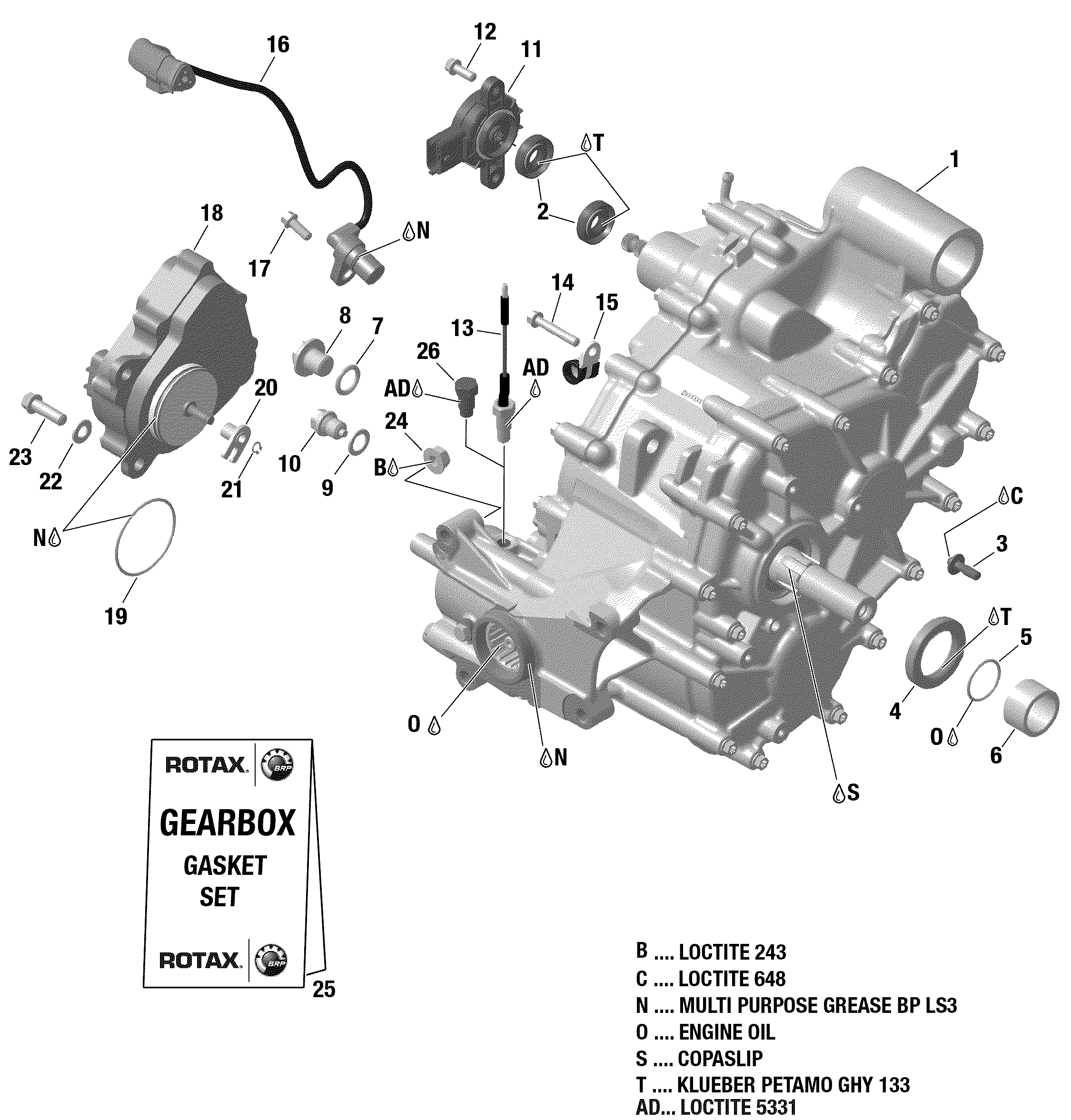

01- Gear Box And Components 420686563 для BRP 1- Outlander 6X6 T3 650 EFI - 2018
-
№АртикулНазвание
-
1>14420686563 Gear BoxGear Box
-
2420932435 Ball BearingBall Bearing
-
3420441431 Distance Screw M6Distance Screw M6
-
4420950089 Oil SealOil Seal
-
5420631610 O-RingO-Ring
-
6420647253 Distance RingDistance Ring
-
7420650350 O-RingO-Ring
-
8420241660 Plug Screw M14 X 1.5Plug Screw M14 X 1.5
-
9420250640 Copper WasherCopper Washer
-
10420241787 Magnetic Drain Plug M12Magnetic Drain Plug M12
-
11420266168 Angle Rotation SensorAngle Rotation Sensor
-
12420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
14420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
15420251691 Cable ClampCable Clamp
-
16420265621 Speed SensorSpeed Sensor
-
17420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
18>21715900613 Actuator Ass'y 4 pinsActuator Ass'y 4 pins
-
19293300117 O-RingO-Ring
-
20415129175 Shifting ForkShifting Fork
-
21293370042 CirclipCirclip
-
22420250311 Flat Washer 8.4 mmFlat Washer 8.4 mm
-
23420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
24420842619 Hex. Nut M8Hex. Nut M8
-
25420684149 Gasket SetGasket Set
-
26420241905 Plug Screw M10X10Plug Screw M10X10
