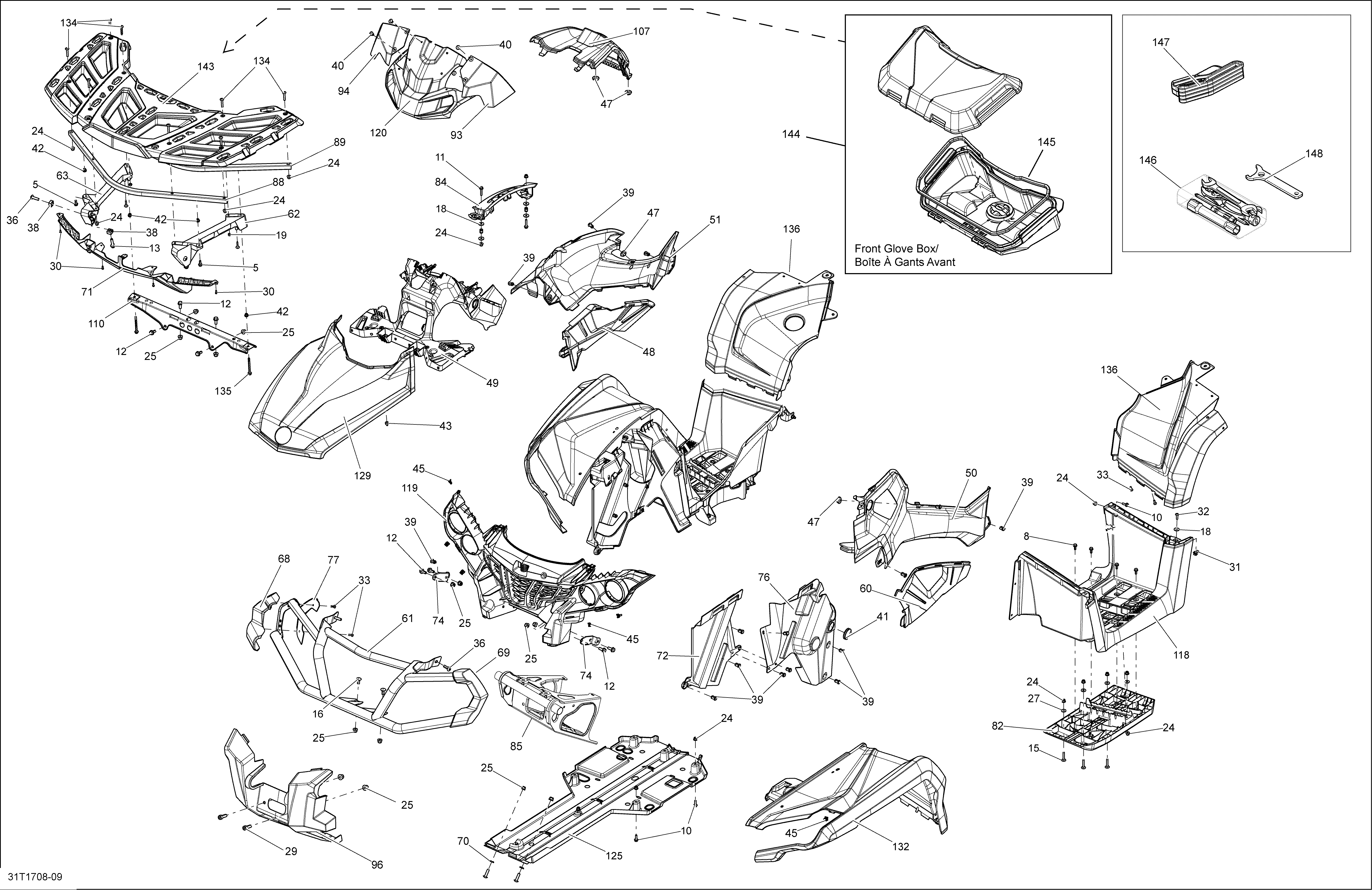

09- Body And Accessories, Front View_1 для BRP 1- Outlander 6X6 - 650 EFI - 2018
-
№АртикулНазвание
-
5207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
10207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
12207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
13207683534 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
15207763584 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
16207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
18224061201 Flat WasherFlat Washer
-
19232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
24233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
25233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
27234062410 Flat Washer 6 mmFlat Washer 6 mm
-
29236282084 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
30241140060 Screw K40 X 10Screw K40 X 10
-
31250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
32250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
33250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
36250000544 Torx Screw M8 X 30Torx Screw M8 X 30
-
38269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
39293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
40293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
41293250242 Rubber CoverRubber Cover
-
42293450274 InsertInsert
-
43293830005 Rubber BumperRubber Bumper
-
45517302785 ClipClip
-
47705003264 GrommetGrommet
-
48705003444 Engine CoverEngine Cover
-
49715001552 Dash Support Kit. Model-North AmericaDash Support Kit. Model-North America
-
49715002245 Dash Support Kit. Model-International, T3Dash Support Kit. Model-International, T3
-
50705009760 Squadron Green LH Lateral PanelSquadron Green LH Lateral Panel
-
51705009764 Squadron Green RH Lateral PanelSquadron Green RH Lateral Panel
-
60705004147 LH Extension PannelLH Extension Pannel
-
62705006700 LH Support Ass'yLH Support Ass'y
-
63705006701 RH Support Ass'yRH Support Ass'y
-
70705004497 RingRing
-
71705004523 Lugage Rack MouldingLugage Rack Moulding
-
72705004558 RH Inner FenderRH Inner Fender
-
72705004557 LH Inner FenderLH Inner Fender
-
74705004565 Lower Fender SupportLower Fender Support
-
76705004587 RH Inner FenderRH Inner Fender
-
76705004588 LH Inner FenderLH Inner Fender
-
82705005254 LH. FootboardLH. Footboard
-
82705005253 RH. FootboardRH. Footboard
-
84705005257 Indicator. Except T3Indicator. Except T3
-
84715004087 Indicator. T3Indicator. T3
-
85705004165 Front Bumper SupportFront Bumper Support
-
88705005469 TubeTube
-
89705005470 TubeTube
-
93705006134 LH Air DeflectorLH Air Deflector
-
94705006135 RH Air DeflectorRH Air Deflector
-
96705006299 Front Guard PlateFront Guard Plate
-
107715001765 Dash KitDash Kit
-
110705006812 Cargo Rack Center SupportCargo Rack Center Support
-
118705007040 LH FootrestLH Footrest
-
118705007039 RH FootrestRH Footrest
-
119705007041 Front FaciaFront Facia
-
120705007095 Gauge SupportGauge Support
-
125705007553 Central Skid PlateCentral Skid Plate
-
129715005117 Squadron Green Hood Kit. Model-North AmericaSquadron Green Hood Kit. Model-North America
-
129715005120 Squadron Green Hood Kit. Model-International, T3Squadron Green Hood Kit. Model-International, T3
-
132715004711 Squadron Green LH Front Fender Kit. Model-North AmericaSquadron Green LH Front Fender Kit. Model-North America
-
132715004713 Squadron Green LH Front Fender Kit. Model-InternationalSquadron Green LH Front Fender Kit. Model-International
-
132715004714 Squadron Green LH Front Fender Kit. Model- T3Squadron Green LH Front Fender Kit. Model- T3
-
132715004716 Squadron Green RH Front Fender Kit. Model-North AmericaSquadron Green RH Front Fender Kit. Model-North America
-
132715004630 Squadron Green RH Front Fender Kit. Model-International, T3Squadron Green RH Front Fender Kit. Model-International, T3
-
134250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
135207567044 Hex. Flanged Screw M6x70, Scotch GripHex. Flanged Screw M6x70, Scotch Grip
-
136715004719 Squadron Green LH Rear Fender. Model-North AmericaSquadron Green LH Rear Fender. Model-North America
-
136715004721 Squadron Green LH Rear Fender. Model-InternationalSquadron Green LH Rear Fender. Model-International
-
136715004722 Squadron Green LH Rear Fender. Model- T3Squadron Green LH Rear Fender. Model- T3
-
136715005114 Squadron Green RH Rear Fender. Model-North AmericaSquadron Green RH Rear Fender. Model-North America
-
136715005115 Squadron Green RH Rear Fender. Model-International, T3Squadron Green RH Rear Fender. Model-International, T3
-
143715001852 Rack Kit. Model-North AmericaRack Kit. Model-North America
-
143715002240 Rack Kit. Model-International, T3Rack Kit. Model-International, T3
-
144708200408 Box Ass'yBox Ass'y
-
145293250312 Neoprene SealNeoprene Seal
-
146704700148 Tool KitTool Kit
-
147710002270 Remote ControlRemote Control
-
148529000035 Adjustement WrenchAdjustement Wrench
