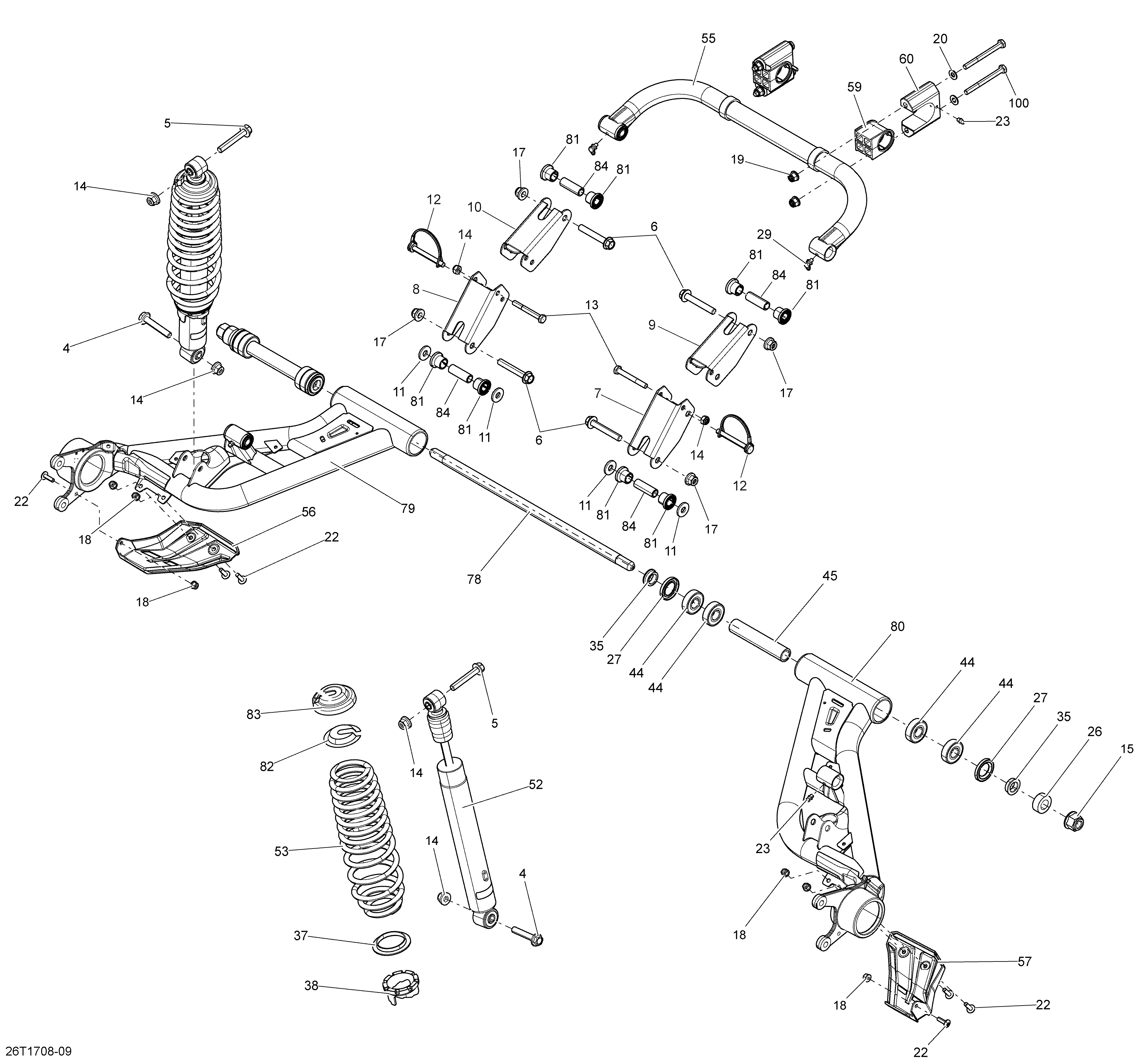

08- Rear Suspension для BRP 1- Outlander 6X6 - 650 EFI - 2018
-
№АртикулНазвание
-
4207605546 Flanged Hex. Screw M10 X 55Flanged Hex. Screw M10 X 55
-
5207606046 Flanged Hex. Screw M10 X 60Flanged Hex. Screw M10 X 60
-
6207606536 Hex Flange Screw M10 X 65Hex Flange Screw M10 X 65
-
6250000520 Hex. Screw M10 X 70Hex. Screw M10 X 70
-
7706001765 Linkage, Outer Part RHLinkage, Outer Part RH
-
8706001600 Linkage, Outer Part LeftLinkage, Outer Part Left
-
9706001766 Linkage, Inner Part RHLinkage, Inner Part RH
-
10706001601 Linkage, Inner PartLinkage, Inner Part
-
11505073634 WasherWasher
-
12706001602 Pin Onto The ShaftPin Onto The Shaft
-
13207086544 Hex. Screw M8 x 65Hex. Screw M8 x 65
-
14232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
14233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
15233211466 Hex. Flanged Elastic Nut M16Hex. Flanged Elastic Nut M16
-
17233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
18233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
19233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20234081430 Flat Washer M8Flat Washer M8
-
22250000075 Torx Screw M6 X 20Torx Screw M6 X 20
-
23250000315 Grease FittingGrease Fitting
-
26250200112 Flat Washer M17Flat Washer M17
-
27293200144 SealSeal
-
29293550056 Grease Fitting 90°Grease Fitting 90°
-
35706001282 SpacerSpacer
-
37503187500 Spring GuideSpring Guide
-
38505070150 Adjustment CamAdjustment Cam
-
44706000826 Ball BearingBall Bearing
-
45706000828 SpacerSpacer
-
52706000958 ShockShock
-
53706000963 Black SpringBlack Spring
-
55706000988 SwaybarSwaybar
-
56706001009 LH ProtectorLH Protector
-
57706001010 RH ProtectorRH Protector
-
59706001098 CushionCushion
-
60706001099 Bushing HolderBushing Holder
-
78706001664 Axial Pivot M16Axial Pivot M16
-
79706001860 Black LH Swing ArmBlack LH Swing Arm
-
80706001861 Black RH Swing ArmBlack RH Swing Arm
-
81706200181 BushingBushing
-
82706200785 CapCap
-
83706200881 Spring StopperSpring Stopper
-
84706201587 SleeveSleeve
-
100207088587 Hex,. Screw M8 X 85Hex,. Screw M8 X 85
