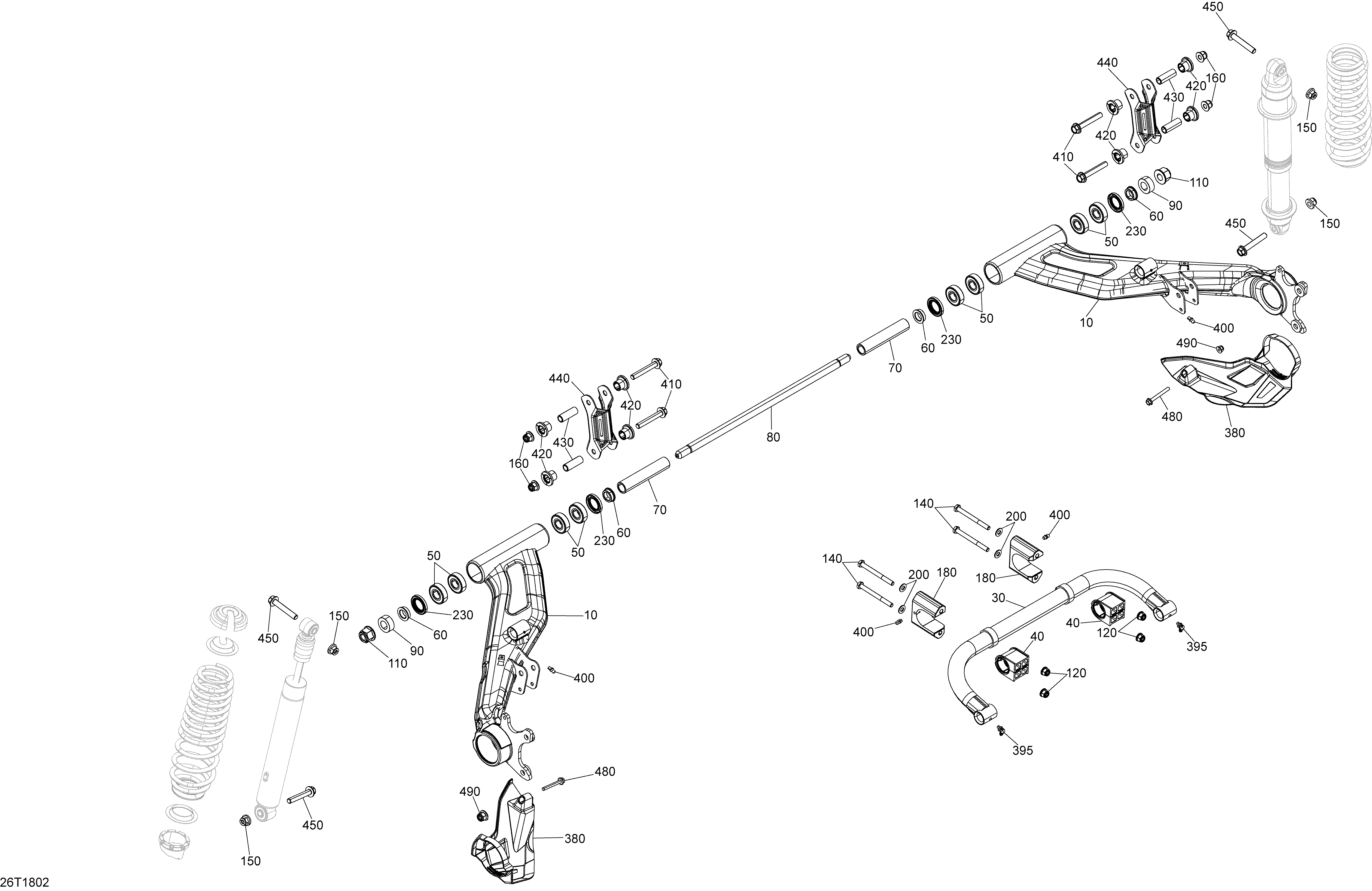

08- Rear Suspension G2 Outlander - Except Package LTD для BRP 4- Outlander 1000R EFI, MY2018 - 2018
-
№АртикулНазвание
-
10706002414 Black LH Swing Arm. All Models Except Package XMRBlack LH Swing Arm. All Models Except Package XMR
-
20706002415 Black RH Swing Arm. All Models Except Package XMRBlack RH Swing Arm. All Models Except Package XMR
-
10706002634 Red LH Swing Arm. Package XMR Can-Am Red ModelsRed LH Swing Arm. Package XMR Can-Am Red Models
-
20706002635 Red RH Swing Arm. Package XMR Can-Am Red ModelsRed RH Swing Arm. Package XMR Can-Am Red Models
-
10706002803 LH Swing Arm. Package XMR Sunburst Yellow ModelsLH Swing Arm. Package XMR Sunburst Yellow Models
-
20706002804 RH Swing Arm. Package XMR Sunburst Yellow ModelsRH Swing Arm. Package XMR Sunburst Yellow Models
-
30706000988 SwaybarSwaybar
-
40706002246 CushionCushion
-
50706000826 Ball BearingBall Bearing
-
60706001282 SpacerSpacer
-
70706002259 EntretoiseEntretoise
-
80706001664 Axial Pivot M16Axial Pivot M16
-
90250200112 Flat Washer M17Flat Washer M17
-
110233211466 Hex. Flanged Elastic Nut M16Hex. Flanged Elastic Nut M16
-
120233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
140207088587 Hex,. Screw M8 X 85Hex,. Screw M8 X 85
-
150233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
160233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
180706001099 Bushing HolderBushing Holder
-
200234081430 Flat Washer M8Flat Washer M8
-
230293200144 SealSeal
-
380706002482 LH ProtectorLH Protector
-
390706002483 RH ProtectorRH Protector
-
395293550056 Grease Fitting 90°Grease Fitting 90°
-
400250000315 Grease FittingGrease Fitting
-
410207606536 Hex. Flanged Screw M10 X 65Hex. Flanged Screw M10 X 65
-
420706202088 CushionCushion
-
430703500875 Bushing KitBushing Kit
-
440706001020 Swaybar LinkageSwaybar Linkage
-
450207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
-
470207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
480233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
490707001376 BushingBushing
