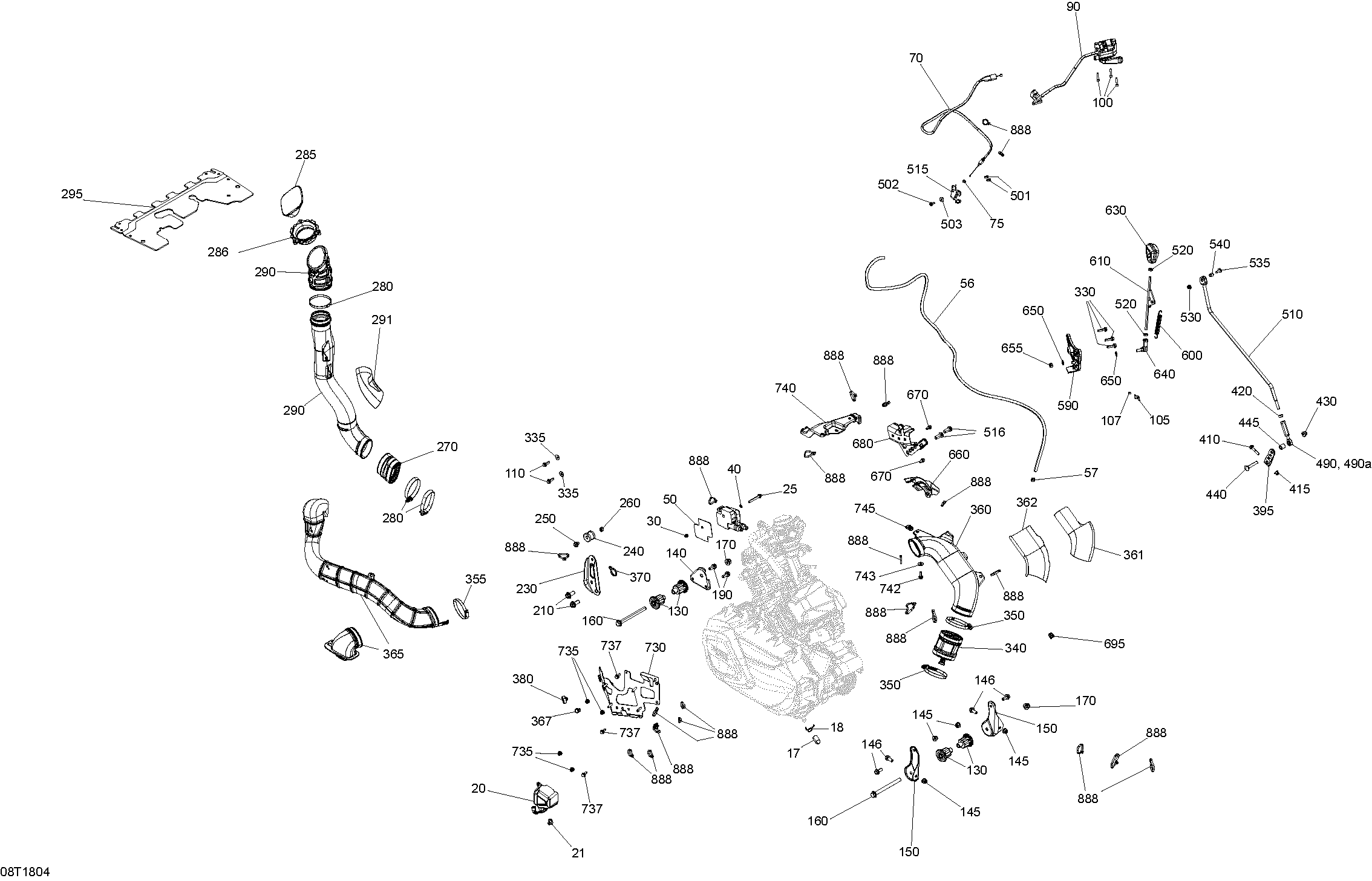

01- Engine Outlander MAX - 1000 EFI - T3 для BRP 8- Outlander T3 MAX 1000 EFI - 2018

  • №
    Артикул
    Название
  • 17
    707001185 Plug
    Plug
  • 18
    707800506 Retainer Clip
    Retainer Clip
  • 20
    707000945 Cover
    Cover
  • 25
    207665044 Hex. Flanged Screw M6 X 50
    Hex. Flanged Screw M6 X 50
  • 27
    409902200 Tubing 25 mm
    Tubing 25 mm
  • 40
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 50
    710000073 Insulator Pad
    Insulator Pad
  • 56
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 57
    293650195 Clamp, Oetiker
    Clamp, Oetiker
  • 70
    707000955 Throttle Cable
    Throttle Cable
  • 75
    707000434 Cable Guide
    Cable Guide
  • 90
    707000595 Throttle Handle. Package PRO
    Throttle Handle. Package PRO
  • 90
    707000595 Throttle Handle. Package XTP
    Throttle Handle. Package XTP
  • 100
    205052588 Socket Head Screw M5 X 25
    Socket Head Screw M5 X 25
  • 105
    707000994 Speed Limiter
    Speed Limiter
  • 107
    250000332 Torx Screw M4 X 8
    Torx Screw M4 X 8
  • 110
    207562034 Hex. Flanged Screw M6 X 20, Scotch Grip
    Hex. Flanged Screw M6 X 20, Scotch Grip
  • 130
    707001169 Damper
    Damper
  • 140
    707000761 RH Front Engine Bracket
    RH Front Engine Bracket
  • 145
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
  • 146
    207682046 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 150
    707001191 LH Rear Engine Bracket. Package PRO
    LH Rear Engine Bracket. Package PRO
  • 150
    707001191 LH Rear Engine Bracket. Package XTP
    LH Rear Engine Bracket. Package XTP
  • 155
    707001192 RH Rear Engine Bracket. Package PRO
    RH Rear Engine Bracket. Package PRO
  • 155
    707001192 RH Rear Engine Bracket. Package XTP
    RH Rear Engine Bracket. Package XTP
  • 160
    230602546 Hex. Flanged Screw M10 X 125
    Hex. Flanged Screw M10 X 125
  • 170
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 190
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 210
    207602544 Hex. Flanged Screw M10 X 25
    Hex. Flanged Screw M10 X 25
  • 230
    707000781 Upper Engine Bracket, Black
    Upper Engine Bracket, Black
  • 240
    707000949 Rubber Isolator
    Rubber Isolator
  • 250
    207581046 Flanged Screw M8 x 10, Scotch Grip
    Flanged Screw M8 x 10, Scotch Grip
  • 260
    232581414 Hex. Elastic Stop Nut M8
    Hex. Elastic Stop Nut M8
  • 270
    707001467 Flexible Adaptor
    Flexible Adaptor
  • 280
    293650091 Norma Clamp
    Norma Clamp
  • 285
    707001130 Filter CVT
    Filter CVT
  • 286
    707001171 CVT Filter Base
    CVT Filter Base
  • 290
    707002067 CVT Air Inlet
    CVT Air Inlet
  • 291
    707001654 Heat Shield
    Heat Shield
  • 295
    707001124 Upper Water Deflector
    Upper Water Deflector
  • 330
    250000949 Screw PT K60 X 30
    Screw PT K60 X 30
  • 331
    207562034 Hex. Flanged Screw M6 X 20, Scotch Grip
    Hex. Flanged Screw M6 X 20, Scotch Grip
  • 335
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 340
    707001168 CVT Air Outlet Adaptor
    CVT Air Outlet Adaptor
  • 350
    293650118 Norma Gear Clamp
    Norma Gear Clamp
  • 360
    706600019 Air Outlet
    Air Outlet
  • 361
    707001205 Heat Shield
    Heat Shield
  • 362
    707001206 Heat Shield
    Heat Shield
  • 365
    706600024 Air Outlet
    Air Outlet
  • 395
    707000911 Lever
    Lever
  • 410
    207663544 Hex. Flanged Screw M6 X 35
    Hex. Flanged Screw M6 X 35
  • 415
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 420
    250100144 Hex. Nut M8, Filets GA
    Hex. Nut M8, Filets GA
  • 430
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 440
    207783044 Carriage Bolt M8 X 30. Package XTP
    Carriage Bolt M8 X 30. Package XTP
  • 440
    207783044 Carriage Bolt M8 X 30. Package PRO
    Carriage Bolt M8 X 30. Package PRO
  • 445
    293900106 Bushing
    Bushing
  • 490>490a
    707000966 Ball Joint Ass'y. Includes 490 to 490a
    Ball Joint Ass'y. Includes 490 to 490a
  • 490a
    232180600 Hex. Jam Nut M8
    Hex. Jam Nut M8
  • 501
    205951046 Socket Head Screw M5 X 10
    Socket Head Screw M5 X 10
  • 502
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 503
    391301600 Washer
    Washer
  • 510
    707002068 Shifter Rod. Package PRO
    Shifter Rod. Package PRO
  • 510
    707002068 Shifter Rod. Package XTP
    Shifter Rod. Package XTP
  • 515
    707001042 Fixing Plate
    Fixing Plate
  • 516
    205402556 Screw Socket M10 X 25
    Screw Socket M10 X 25
  • 520
    232180600 Hex. Jam Nut M8
    Hex. Jam Nut M8
  • 530
    233161414 Hex. Flanged Nut M6
    Hex. Flanged Nut M6
  • 535
    250000446 Torx Screw M6 X 20, Scotch Grip
    Torx Screw M6 X 20, Scotch Grip
  • 540
    293900019 Bushing
    Bushing
  • 590
    707000971 Shift Arm Base
    Shift Arm Base
  • 600
    707000577 Spring
    Spring
  • 610
    707001003 Shift Arm
    Shift Arm
  • 630
    707000965 Lever Button
    Lever Button
  • 640
    707001959 RH Ball Joint
    RH Ball Joint
  • 650
    506151252 Washer
    Washer
  • 655
    232581414 Hex. Elastic Stop Nut M8
    Hex. Elastic Stop Nut M8
  • 660
    707000410 Cover OPS
    Cover OPS
  • 670
    210261250 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 680
    707001955 Upper Cable Support
    Upper Cable Support
  • 695
    710002896 Tie-Rap Clip
    Tie-Rap Clip
  • 740
    707001262 Air Outlet Support
    Air Outlet Support
  • 742
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 743
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 745
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 888
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 888
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
