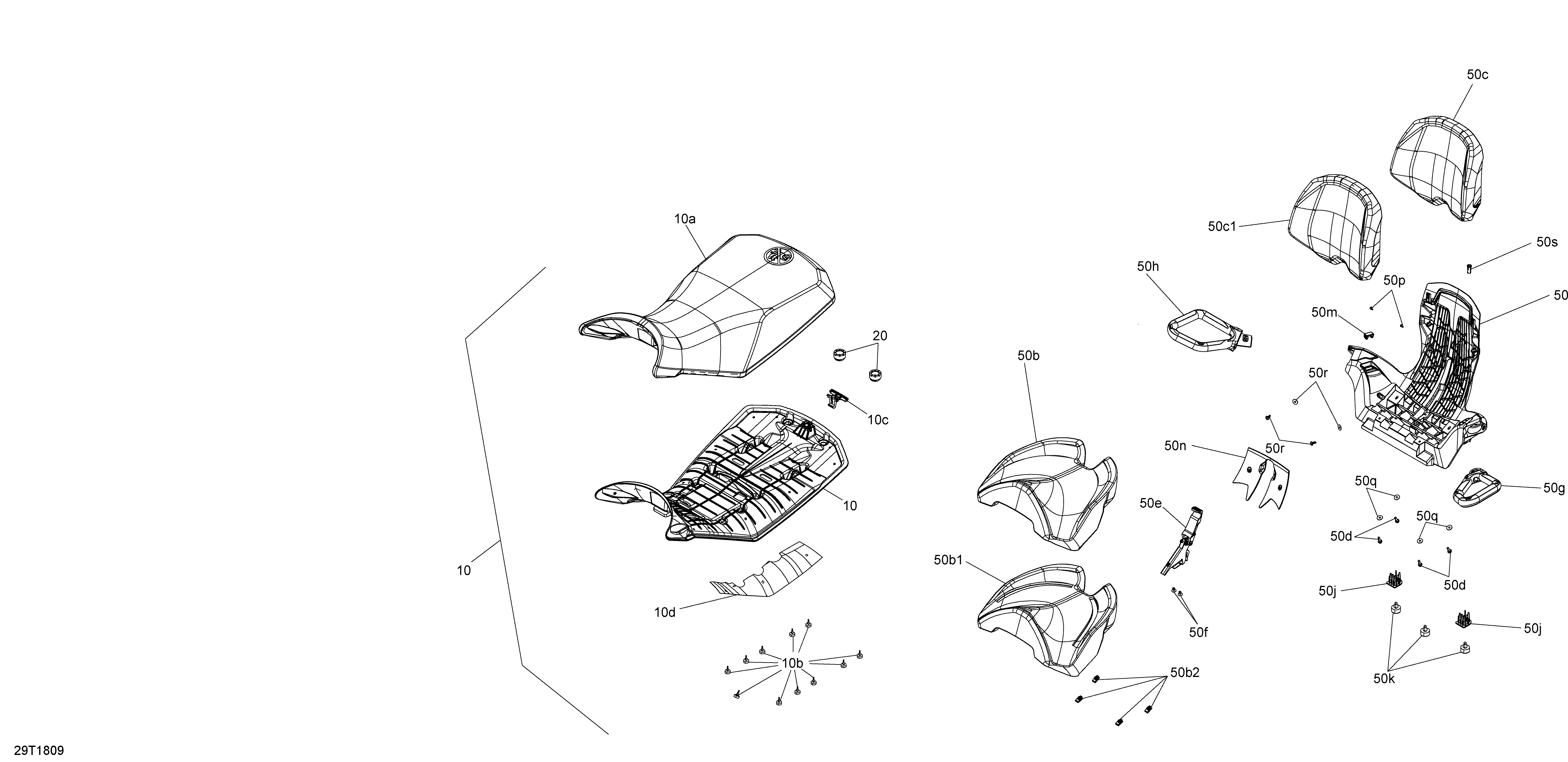

09- Seat DPS, XT & XTP для BRP 7- Outlander T3 MAX 650 EFI - 2018
-
№АртикулНазвание
-
10708002491 Seat Ass'y. Package DPS, XT, XTP. Includes 10 to 10dSeat Ass'y. Package DPS, XT, XTP. Includes 10 to 10d
-
10a708000724 Black Seat Cover. Package DPS, XT, XTPBlack Seat Cover. Package DPS, XT, XTP
-
10b708000759 Rubber Stopper. Package DPS, XT, XTPRubber Stopper. Package DPS, XT, XTP
-
10c708000909 Latch. Package DPS, XT, XTPLatch. Package DPS, XT, XTP
-
10d705005761 Heat Shield. Package DPS, XT, XTPHeat Shield. Package DPS, XT, XTP
-
50708002574 Seat Base. Max Model. Includes 50 to 50uSeat Base. Max Model. Includes 50 to 50u
-
50b708002086 Seat. Max Model. Includes 50b to 50b2Seat. Max Model. Includes 50b to 50b2
-
50b1708001581 Passenger Seat Cover. Max ModelPassenger Seat Cover. Max Model
-
50b2250000048 Panel Nut M6 X 1.0. Max ModelPanel Nut M6 X 1.0. Max Model
-
50c708002081 Backrest. Max Model. Includes 50c to 50c1Backrest. Max Model. Includes 50c to 50c1
-
50c1708001847 Back Rest Cover. Max ModelBack Rest Cover. Max Model
-
50d207562034 Hex. Flanged Screw M6 X 20, Scotch Grip. Max ModelHex. Flanged Screw M6 X 20, Scotch Grip. Max Model
-
50e708001532 Latch. Max ModelLatch. Max Model
-
50f293150108 Pop Rivet 3/16''. Max ModelPop Rivet 3/16''. Max Model
-
50g703500806 LH Passenger Seat Handle Kit. Max ModelLH Passenger Seat Handle Kit. Max Model
-
50h703500807 RH Passenger Seat Handle Kit. Max ModelRH Passenger Seat Handle Kit. Max Model
-
50j708001483 Seat Support. Max ModelSeat Support. Max Model
-
50k708000758 Rubber Stopper. Max ModelRubber Stopper. Max Model
-
50m708001511 Insert. Max ModelInsert. Max Model
-
50n708001512 Cap. Max ModelCap. Max Model
-
50p250000577 Torx Truss K40 X 12. Max ModelTorx Truss K40 X 12. Max Model
-
50q224060201 Flat Washer. Max ModelFlat Washer. Max Model
-
50r250000546 Oval Head Torx Screw K60 X 16. Max ModelOval Head Torx Screw K60 X 16. Max Model
-
50s710003910 Pilot Lamp Cap. Max ModelPilot Lamp Cap. Max Model
-
50t250000806 Torx Truss M8 X 90. Max Model. Not ShownTorx Truss M8 X 90. Max Model. Not Shown
-
50u705009248 Sleeve. Max Model. Not ShownSleeve. Max Model. Not Shown
