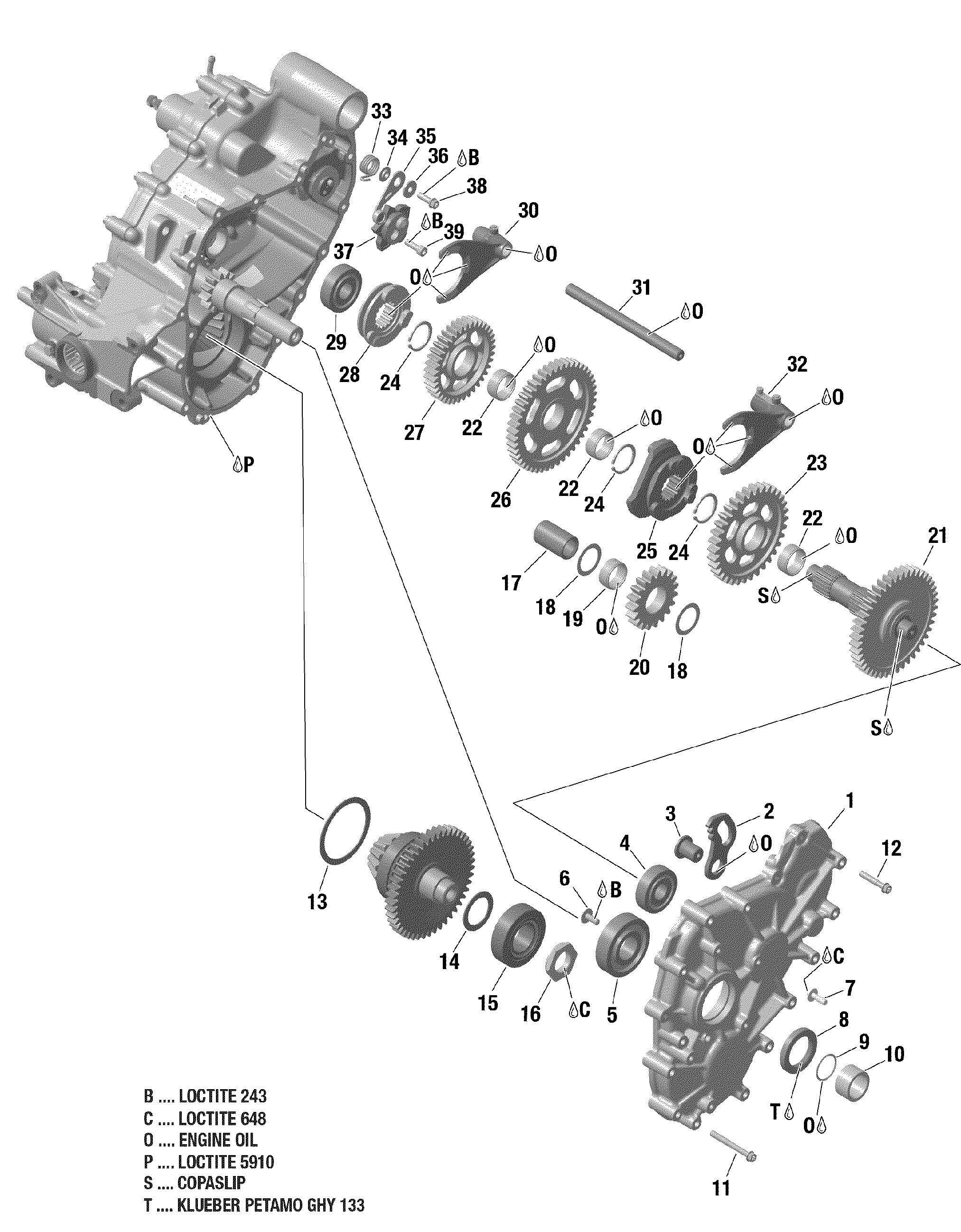

05- Gear Box 2 - 420686214 для BRP 6- Outlander T3 MAX 570 EFI PRO (3SJC) - 2018
-
№АртикулНазвание
-
2420257659 Parking Lock LeverParking Lock Lever
-
3420647123 Collar SleeveCollar Sleeve
-
4420932816 Ball BearingBall Bearing
-
5420932823 Ball BearingBall Bearing
-
6420241529 Torx Screw M6 X 16Torx Screw M6 X 16
-
7420441431 Distance Screw M6Distance Screw M6
-
8420950089 Oil SealOil Seal
-
9420631610 O-RingO-Ring
-
10420647253 Distance RingDistance Ring
-
11420440702 Flanged Torx Screw M6 X 55Flanged Torx Screw M6 X 55
-
12420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
17420620688 Intermediate Gear ShaftIntermediate Gear Shaft
-
18420427011 Thrust WasherThrust Washer
-
19420932930 Needle BearingNeedle Bearing
-
20420434588 Intermediate Gear, 19 TeethIntermediate Gear, 19 Teeth
-
21420637048 Main ShaftMain Shaft
-
22420632070 Needle BearingNeedle Bearing
-
23420434873 Gear Pinion, 34 TeethGear Pinion, 34 Teeth
-
24420845772 Retaining RingRetaining Ring
-
25420257953 Shifting SleeveShifting Sleeve
-
26420434865 Gear Pinion, 46 TeethGear Pinion, 46 Teeth
-
27420434857 Gear Pinion, 36 TeethGear Pinion, 36 Teeth
-
28420257944 Shifting SleeveShifting Sleeve
-
29420932816 Ball BearingBall Bearing
-
30420657365 Shift ForkShift Fork
-
31420258388 Fork SpindleFork Spindle
-
33>37420248532 Index Lever Ass'yIndex Lever Ass'y
-
38420441835 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
39420241939 Allen Screw M6 X 20Allen Screw M6 X 20
