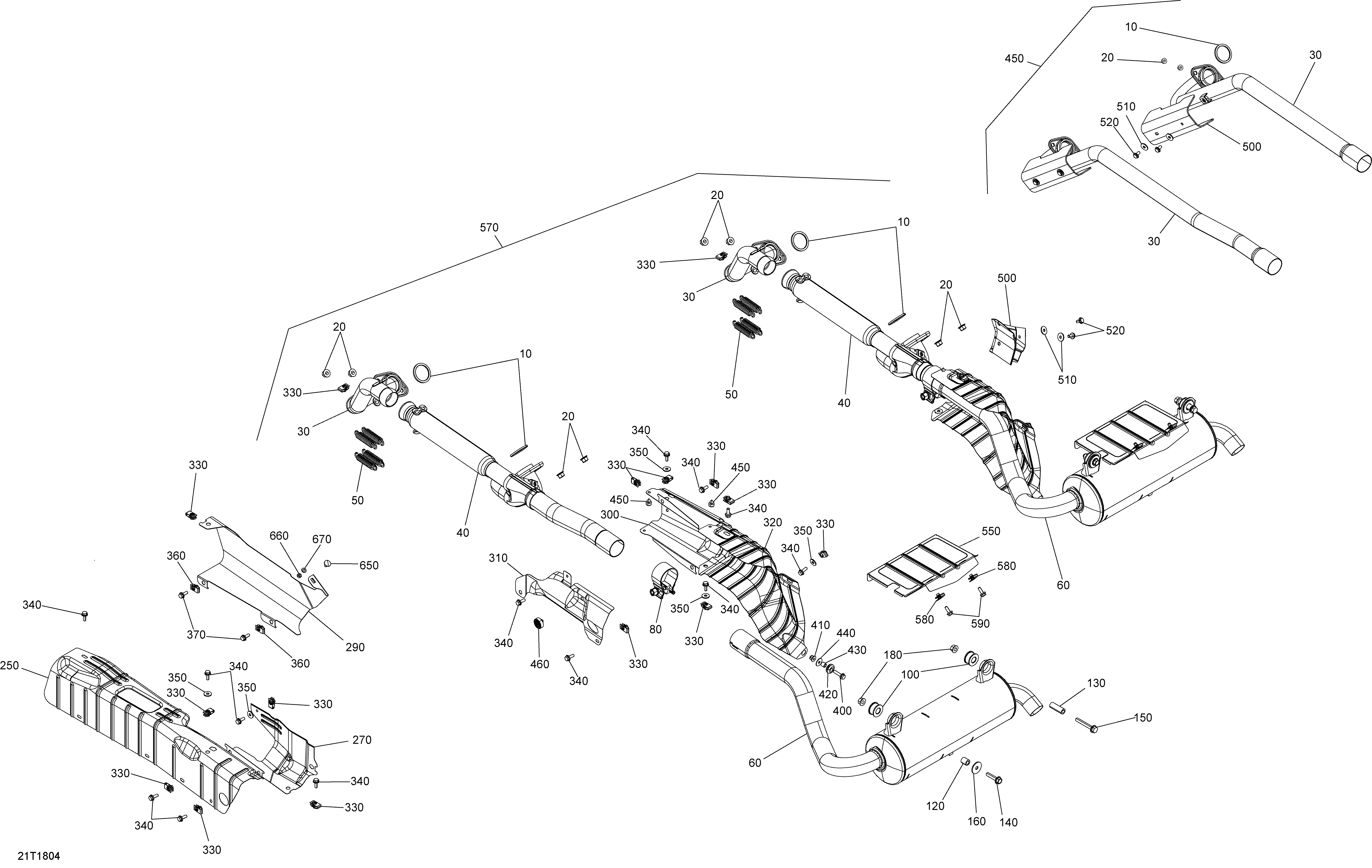

01- Exhaust для BRP 5- Outlander T3 MAX 570 EFI - 2018

  • №
    Артикул
    Название
  • 10
    707600317 Gasket
    Gasket
  • 20
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 30
    707600764 Front Head Pipe
    Front Head Pipe
  • 40
    707601446 Rear Head Pipe. Non Max Model
    Rear Head Pipe. Non Max Model
  • 40
    707601447 Rear Head Pipe. Max Model
    Rear Head Pipe. Max Model
  • 50
    415107100 Spring
    Spring
  • 60
    707602181 Exhaust Muffler. Max Model
    Exhaust Muffler. Max Model
  • 60a
    707601392 Exhaust Muffler
    Exhaust Muffler
  • 60
    707602181 Exhaust Muffler. Non Max Model
    Exhaust Muffler. Non Max Model
  • 60a
    707601392 Exhaust Muffler
    Exhaust Muffler
  • 70
    707600872 Oxygen Sensor. Not Shown
    Oxygen Sensor. Not Shown
  • 75
    293750058 Locking Tie Rap. Non Max Model. Not Shown
    Locking Tie Rap. Non Max Model. Not Shown
  • 75
    414227300 Clip. Max Model. Not Shown
    Clip. Max Model. Not Shown
  • 80
    293650228 Exhaust Pipe Clamp
    Exhaust Pipe Clamp
  • 100
    707600701 Anti-Vibration Rubber. Max Model
    Anti-Vibration Rubber. Max Model
  • 100
    707600701 Anti-Vibration Rubber. Non Max Model
    Anti-Vibration Rubber. Non Max Model
  • 120
    293900116 Spacer Bushing. Max Model
    Spacer Bushing. Max Model
  • 120
    293900116 Spacer Bushing. Non Max Model
    Spacer Bushing. Non Max Model
  • 130
    293900115 Bushing. Max Model
    Bushing. Max Model
  • 130
    293900115 Bushing. Non Max Model
    Bushing. Non Max Model
  • 140
    207683544 Hex. Flanged Screw M8 X 35. Non Max Model
    Hex. Flanged Screw M8 X 35. Non Max Model
  • 140
    207683544 Hex. Flanged Screw M8 X 35. Max Model
    Hex. Flanged Screw M8 X 35. Max Model
  • 150
    207685544 Hex. Flanged Screw M8 X 55. Max Model
    Hex. Flanged Screw M8 X 55. Max Model
  • 150
    207685544 Hex. Flanged Screw M8 X 55. Non Max Model
    Hex. Flanged Screw M8 X 55. Non Max Model
  • 160
    250200158 Flat Washer M8. Non Max Model
    Flat Washer M8. Non Max Model
  • 160
    250200158 Flat Washer M8. Max Model
    Flat Washer M8. Max Model
  • 180
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 250
    707601486 Protector
    Protector
  • 270
    707601484 Protector
    Protector
  • 290
    707600996 Heat Shield. Package PRO
    Heat Shield. Package PRO
  • 300
    707601485 Protector. Max Model
    Protector. Max Model
  • 310
    707600994 Heat Shield. Max Model
    Heat Shield. Max Model
  • 320
    707601425 Protector
    Protector
  • 330
    250000048 Panel Nut M6 X 1.0. Max Model
    Panel Nut M6 X 1.0. Max Model
  • 330
    250000048 Panel Nut M6 X 1.0. Non Max Model
    Panel Nut M6 X 1.0. Non Max Model
  • 340
    207661644 Hex. Flanged Screw M6 X 16. Max Model
    Hex. Flanged Screw M6 X 16. Max Model
  • 340
    207661644 Hex. Flanged Screw M6 X 16. Non Max Model
    Hex. Flanged Screw M6 X 16. Non Max Model
  • 350
    234062410 Flat Washer 6 mm. Non Max Model
    Flat Washer 6 mm. Non Max Model
  • 350
    234062410 Flat Washer 6 mm. Max Model
    Flat Washer 6 mm. Max Model
  • 360
    250000048 Panel Nut M6 X 1.0. Package PRO
    Panel Nut M6 X 1.0. Package PRO
  • 370
    207661644 Hex. Flanged Screw M6 X 16. Package PRO
    Hex. Flanged Screw M6 X 16. Package PRO
  • 400
    207662534 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 410
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 420
    293720053 Grommet
    Grommet
  • 430
    293900105 Bushing
    Bushing
  • 440
    224060201 Flat Washer
    Flat Washer
  • 450
    293830005 Rubber Bumper. Max Model
    Rubber Bumper. Max Model
  • 450
    293830005 Rubber Bumper. Non Max Model
    Rubber Bumper. Non Max Model
  • 460
    708000506 Rubber Stopper. Max Model
    Rubber Stopper. Max Model
  • 500
    707600932 Pipe Protector
    Pipe Protector
  • 510
    250200082 Flat Washer
    Flat Washer
  • 520
    250000574 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 550
    707601635 Protector. Non Max Model
    Protector. Non Max Model
  • 550
    707601635 Protector. Max Model
    Protector. Max Model
  • 580
    250000048 Panel Nut M6 X 1.0. Non Max Model
    Panel Nut M6 X 1.0. Non Max Model
  • 580
    250000048 Panel Nut M6 X 1.0. Max Model
    Panel Nut M6 X 1.0. Max Model
  • 590
    207661644 Hex. Flanged Screw M6 X 16. Non Max Model
    Hex. Flanged Screw M6 X 16. Non Max Model
  • 590
    207661644 Hex. Flanged Screw M6 X 16. Max Model
    Hex. Flanged Screw M6 X 16. Max Model
  • 650
    207761244 Carriage Bolt M6 X 12. Package PRO
    Carriage Bolt M6 X 12. Package PRO
  • 660
    232561414 Elastic Stop Nut M6. Package PRO
    Elastic Stop Nut M6. Package PRO
  • 670
    234061410 Flat Washer 6 mm. Package PRO
    Flat Washer 6 mm. Package PRO
