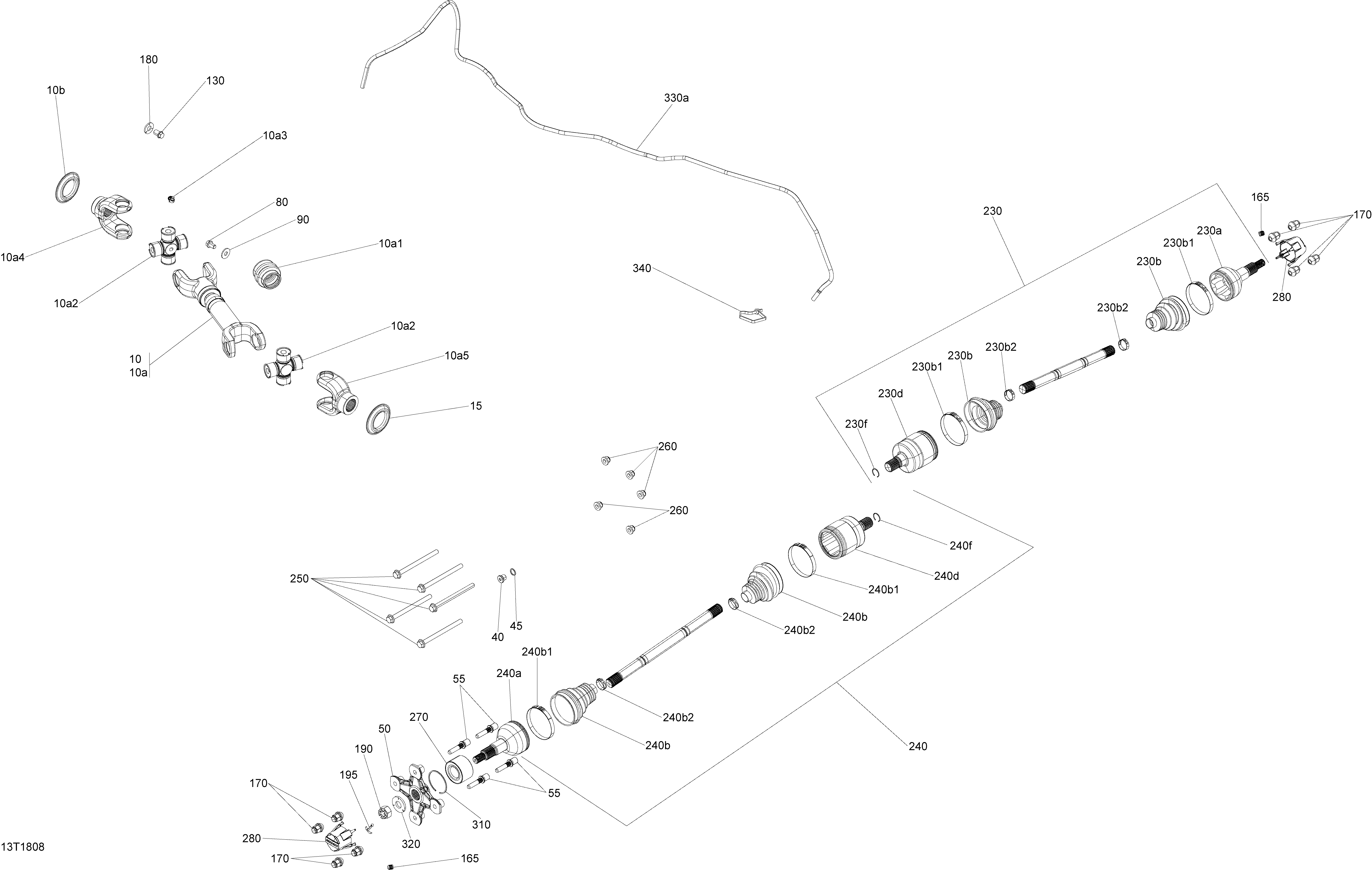

08- Drive, Rear G2 для BRP 3- Outlander T3 650 EFI - 2018
-
№АртикулНазвание
-
10703500988 Shaft Ass'y Kit. Package G2 XT & G2 XTP. Includes 10 to 10bShaft Ass'y Kit. Package G2 XT & G2 XTP. Includes 10 to 10b
-
10703500990 Shaft Ass'y Kit. Package G2 PRO. Includes 10 to 10bShaft Ass'y Kit. Package G2 PRO. Includes 10 to 10b
-
10703501017 Shaft Ass'y Kit. Package G2 MAX XT & G2 MAX XTP. Includes 10 to 10bShaft Ass'y Kit. Package G2 MAX XT & G2 MAX XTP. Includes 10 to 10b
-
10703500989 Shaft Ass'y Kit. Package G2 MAX PRO. Includes 10 to 10bShaft Ass'y Kit. Package G2 MAX PRO. Includes 10 to 10b
-
10a703500988 Shaft Ass'y Kit. Package G2 XT & G2 XTP. Includes 10a to 10a5Shaft Ass'y Kit. Package G2 XT & G2 XTP. Includes 10a to 10a5
-
10a703500990 Shaft Ass'y Kit. Package G2 PRO. Includes 10a to 10a5Shaft Ass'y Kit. Package G2 PRO. Includes 10a to 10a5
-
10a703501017 Shaft Ass'y Kit. Package G2 MAX XT & G2 MAX XTP. Includes 10a to 10a5Shaft Ass'y Kit. Package G2 MAX XT & G2 MAX XTP. Includes 10a to 10a5
-
10a703501089 Shaft Ass'y Kit. Package G2 MAX PRO. Includes 10a to 10a5Shaft Ass'y Kit. Package G2 MAX PRO. Includes 10a to 10a5
-
10a1715900118 Rubber BootRubber Boot
-
10a2703500846 Universal Joint Ass'yUniversal Joint Ass'y
-
10a3715900295 Grease FittingGrease Fitting
-
10a4715900499 JointJoint
-
10a5715900438 Joint. Except PROJoint. Except PRO
-
10a5715900436 Joint. Package PROJoint. Package PRO
-
10b705501123 ProtectorProtector
-
15705501123 ProtectorProtector
-
40705500504 Fill Level PlugFill Level Plug
-
45705500506 Copper WasherCopper Washer
-
50705501900 Wheel HubWheel Hub
-
55250300048 Wheel StudWheel Stud
-
80250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
90250200014 Flat Washer M10Flat Washer M10
-
130250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
165293000110 Valve CapValve Cap
-
170250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
180250200005 Conical Spring Washer M12Conical Spring Washer M12
-
190250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
195250400071 Cotter PinCotter Pin
-
230705501486 RH Homocinetic Joint. Package PRO. Includes 230 to 230fRH Homocinetic Joint. Package PRO. Includes 230 to 230f
-
230705502577 RH Homocinetic Joint. Package XT & XTP. Includes 230 to 230fRH Homocinetic Joint. Package XT & XTP. Includes 230 to 230f
-
230a705501776 CV JointCV Joint
-
230b705501864 Boot KitBoot Kit
-
230b1715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
230b2715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
230d705501780 Plunging Joint. Package PROPlunging Joint. Package PRO
-
230d715900604 Plunging Joint. Package XT & XTPPlunging Joint. Package XT & XTP
-
230f705501781 CirclipCirclip
-
240705501485 LH Homocinetic Joint. Includes 240 to 240fLH Homocinetic Joint. Includes 240 to 240f
-
240a705501776 CV JointCV Joint
-
240b705501864 Boot KitBoot Kit
-
240b1715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
240b2715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
240d705501780 Plunging JointPlunging Joint
-
240f705501781 CirclipCirclip
-
250250000508 Hex. Flanged Screw M10 x 135Hex. Flanged Screw M10 x 135
-
260233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
270293350118 Cone BearingCone Bearing
-
280705400928 Wheel CapWheel Cap
-
310293370019 CirclipCirclip
-
320250200171 Conical Spring Washer M18Conical Spring Washer M18
-
330a293830193 Polyurethane HosePolyurethane Hose
-
340293750008 Tie-Rap 350 mmTie-Rap 350 mm
