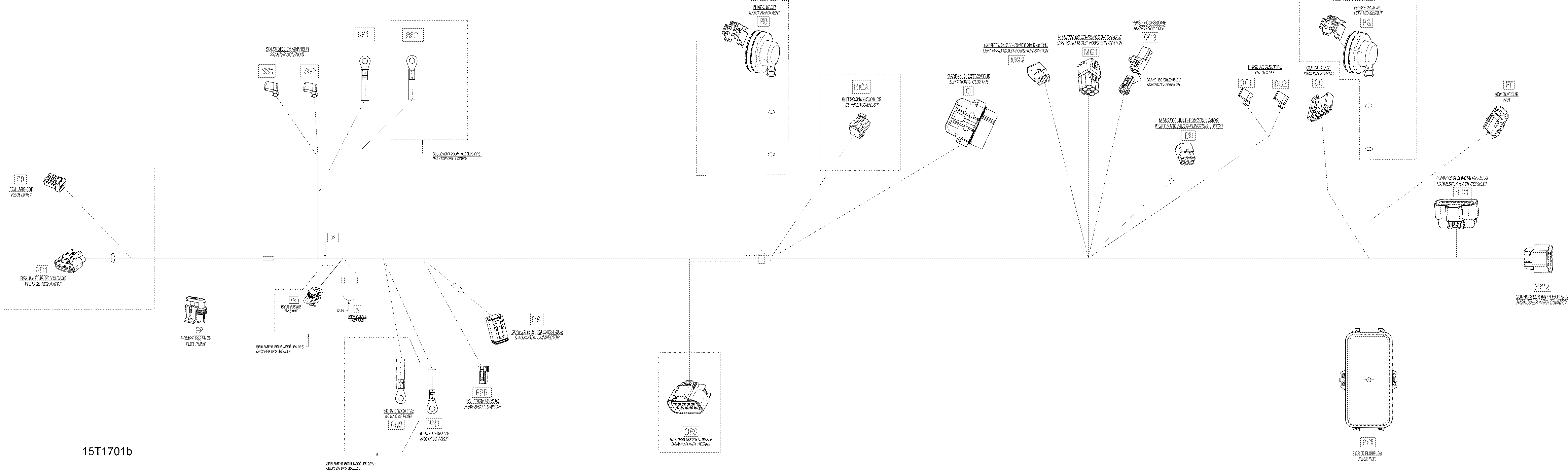

10- Electrical Harness - 710004957 Package STD для BRP 5- Outlander MAX 570 EFI - 2018
-
№АртикулНазвание
-
BD710000081 Female Housing, 6 Circuits. SUMITOMO 6180-6181Female Housing, 6 Circuits. SUMITOMO 6180-6181
-
BD710000080 Cap. SUMITOMO 7160-9465 (PKC T2412)Cap. SUMITOMO 7160-9465 (PKC T2412)
-
BD710000402 Wire Seal. SUMITOMO 7165-0076Wire Seal. SUMITOMO 7165-0076
-
BD409012100 Female Terminal. SUMITOMO 1500-0110Female Terminal. SUMITOMO 1500-0110
-
BN1710000913 Terminal. TYCO 61868-1Terminal. TYCO 61868-1
-
BN2278000992 Open Barrel. AMP 485029-1Open Barrel. AMP 485029-1
-
BP1710000913 Terminal. TYCO 61868-1Terminal. TYCO 61868-1
-
BP2278000992 Open Barrel. AMP 485029-1Open Barrel. AMP 485029-1
-
CC710000849 Male Housing, 6 Circuits. PACKARD 12092254Male Housing, 6 Circuits. PACKARD 12092254
-
CC710000848 Lock. PACKARD 12162298Lock. PACKARD 12162298
-
CC710000274 Female Terminal. PACKARD 12066214Female Terminal. PACKARD 12066214
-
CC710001635 Terminal. PACKARD 12052217Terminal. PACKARD 12052217
-
CI515175801 Female Housing, 24 Circuits. PACKARD 12129225Female Housing, 24 Circuits. PACKARD 12129225
-
CI515175802 Retainer Block. PACKARD 12129183Retainer Block. PACKARD 12129183
-
CI515175812 Plug. PACKARD 12129557Plug. PACKARD 12129557
-
CI710000399 Female Housing. PACKARD 12129811Female Housing. PACKARD 12129811
-
CI515175803 Wire Seal. PACKARD 12110403Wire Seal. PACKARD 12110403
-
CI710001131 Female Terminal. PACKARD 12084913Female Terminal. PACKARD 12084913
-
D2409012700 Diode. IN5406G1Diode. IN5406G1
-
DB278002896 Housing, 6 Circuits. DEUTSCH DT06-6S-CE06Housing, 6 Circuits. DEUTSCH DT06-6S-CE06
-
DB710003006 Housing. PKC 710003006Housing. PKC 710003006
-
DB515175678 Male Wedge, 6 Circuits. DEUTSCH W6S-P012 VERTMale Wedge, 6 Circuits. DEUTSCH W6S-P012 VERT
-
DB293000052 Sealing Cap. DEUTSCH 114017Sealing Cap. DEUTSCH 114017
-
DB278001665 Female Terminal. DEUTSCH 1062-16-0622Female Terminal. DEUTSCH 1062-16-0622
-
DC1710002398 Female TerminalFemale Terminal
-
DC1710002399 Female TerminalFemale Terminal
-
DC2710002398 Female TerminalFemale Terminal
-
DC2710002399 Female TerminalFemale Terminal
-
DC3515175658 Female Housing, 2 Circuits. AMP 174463-2Female Housing, 2 Circuits. AMP 174463-2
-
DC3710000667 Male Housing, 2 Circuits. AMP 178602-1Male Housing, 2 Circuits. AMP 178602-1
-
DC3515175231 Female Terminal. AMP 173631-1Female Terminal. AMP 173631-1
-
DPS1710001161 Housing. PACKARD 15410728Housing. PACKARD 15410728
-
DPS1710001162 Lock. PACKARD 15305028Lock. PACKARD 15305028
-
DPS1710001225 Cap. PACKARD 15305171Cap. PACKARD 15305171
-
DPS1710001114 CapCap
-
DPS1710001163 Wire Seal. PACKARD 15366022Wire Seal. PACKARD 15366022
-
DPS1710001164 Female Terminal. PACKARD 15326266Female Terminal. PACKARD 15326266
-
DPS2278001325 Fuse Holder. PACKARD 12033769Fuse Holder. PACKARD 12033769
-
DPS2710000113 Female Terminal. PACKARD 12066614Female Terminal. PACKARD 12066614
-
DPS3710001157 Housing. PACKARD 12052613Housing. PACKARD 12052613
-
DPS3710001323 Lock. PACKARD 12059897Lock. PACKARD 12059897
-
FP409209700 Female Housing, 4 Circuits. AMP 282088-1Female Housing, 4 Circuits. AMP 282088-1
-
FP515176621 Wire Seal. AMP 281934-4Wire Seal. AMP 281934-4
-
FP710001340 Female Terminal. AMP 282403-1Female Terminal. AMP 282403-1
-
FRR515175658 Female Housing, 2 Circuits. AMP 174463-2Female Housing, 2 Circuits. AMP 174463-2
-
FRR710003896 Female Terminal. AMP 173630-6Female Terminal. AMP 173630-6
-
FT409210100 Clip. PACKARD 06288295Clip. PACKARD 06288295
-
FT278000217 Female Housing, 2 Circuits. PACKARD 12010973Female Housing, 2 Circuits. PACKARD 12010973
-
FT278000218 Wire Seal. PACKARD 15324982Wire Seal. PACKARD 15324982
-
FT409004300 Male Terminal. PACKARD 12124582Male Terminal. PACKARD 12124582
-
HIC1710001226 Housing. PACKARD 15326863Housing. PACKARD 15326863
-
HIC1710001221 Lock. PACKARD 15317832Lock. PACKARD 15317832
-
HIC1710001225 Cap. PACKARD 15305171Cap. PACKARD 15305171
-
HIC1710001230 Seal. PACKARD 12191153Seal. PACKARD 12191153
-
HIC1710001233 Seal. PACKARD 15366021Seal. PACKARD 15366021
-
HIC1710001229 Terminal. PACKARD 12191818Terminal. PACKARD 12191818
-
HIC1710001228 Terminal. PACKARD 12191819Terminal. PACKARD 12191819
-
HIC2710001928 Housing. PACKARD 15326835Housing. PACKARD 15326835
-
HIC2710001221 Lock. PACKARD 15317832Lock. PACKARD 15317832
-
HIC2710001225 Cap. PACKARD 15305171Cap. PACKARD 15305171
-
HIC2710001233 Seal. PACKARD 15366021Seal. PACKARD 15366021
-
HIC2710001332 Seal Wire. PACKARD 15366060Seal Wire. PACKARD 15366060
-
HIC2710001229 Terminal. PACKARD 12191818Terminal. PACKARD 12191818
-
HIC2710001228 Terminal. PACKARD 12191819Terminal. PACKARD 12191819
-
HICA710001124 Housing. PACKARD 12064762Housing. PACKARD 12064762
-
HICA710001125 Lock. PACKARD 12064764Lock. PACKARD 12064764
-
HICA515175941 Female Terminal. PACKARD 12064971Female Terminal. PACKARD 12064971
-
MG1710000835 Male Terminal Housing, 6 Circuits. SUMITOMO 6187-6801Male Terminal Housing, 6 Circuits. SUMITOMO 6187-6801
-
MG1710000080 Cap. SUMITOMO 7160-9465 (PKC T2412)Cap. SUMITOMO 7160-9465 (PKC T2412)
-
MG1710000402 Wire Seal. SUMITOMO 7165-0076Wire Seal. SUMITOMO 7165-0076
-
MG1409011300 Male Terminal. SUMITOMO 1500-0105Male Terminal. SUMITOMO 1500-0105
-
MG2710000081 Female Housing, 6 Circuits. SUMITOMO 6180-6181Female Housing, 6 Circuits. SUMITOMO 6180-6181
-
MG2409012300 Seal. SUMITOMO 7160-8234Seal. SUMITOMO 7160-8234
-
MG2710000402 Wire Seal. SUMITOMO 7165-0076Wire Seal. SUMITOMO 7165-0076
-
MG2409012100 Female Terminal. SUMITOMO 1500-0110Female Terminal. SUMITOMO 1500-0110
-
PD710004020 Headlamp Protector CapHeadlamp Protector Cap
-
PD710004010 Female Housing. PACKARD-DELPHI 13875383Female Housing. PACKARD-DELPHI 13875383
-
PD515177217 Lock. DELPHI 10726102Lock. DELPHI 10726102
-
PF1710000781 Fuse Puller. TYCO C-1443998Fuse Puller. TYCO C-1443998
-
PF1710001026 Fuse Cover. TYCO 1443996-3Fuse Cover. TYCO 1443996-3
-
PF1710003976 Fuse Shematic DecalFuse Shematic Decal
-
PF1278002172 FoamFoam
-
PF1710000744 Little Fuse, 10 Amperes. MINI-FUSIBLE 10 AMPLittle Fuse, 10 Amperes. MINI-FUSIBLE 10 AMP
-
PF1710000744 Little Fuse, 10 Amperes. MINI-FUSIBLE 10 AMPLittle Fuse, 10 Amperes. MINI-FUSIBLE 10 AMP
-
PF1710000744 Little Fuse, 10 Amperes. MINI-FUSIBLE 10 AMPLittle Fuse, 10 Amperes. MINI-FUSIBLE 10 AMP
-
PF1710000746 Little Fuse, 20 Amperes. MINI-FUSIBLE 20 AMPLittle Fuse, 20 Amperes. MINI-FUSIBLE 20 AMP
-
PF1710000746 Little Fuse, 20 Amperes. MINI-FUSIBLE 20 AMPLittle Fuse, 20 Amperes. MINI-FUSIBLE 20 AMP
-
PF1415129856 Fuse Box Base Ass?y. TYCO C-1443997Fuse Box Base Ass?y. TYCO C-1443997
-
PF1710000840 Cap. AMP 828922Cap. AMP 828922
-
PF1515176774 Relay, 30 AMP. SONG CHUAN 301-1C-CR1 U01Relay, 30 AMP. SONG CHUAN 301-1C-CR1 U01
-
PF1710001778 Relay. SONG CHUAN 303-AH-C-R1-U01Relay. SONG CHUAN 303-AH-C-R1-U01
-
PF1278000999 Wire Seal. AMP 828905-1Wire Seal. AMP 828905-1
-
PF1415128501 Seal. AMP 828904-1Seal. AMP 828904-1
-
PF1515177012 Female Terminal. AMP 1-968855-3 ( DRAW. NO. C-1355036 )VOFemale Terminal. AMP 1-968855-3 ( DRAW. NO. C-1355036 )VO
-
PF2710000992 Clip. PACKARD 15495795Clip. PACKARD 15495795
-
PF2710000897 Cover. PACKARD 405051Cover. PACKARD 405051
-
PF2710000747 Little Fuse, 30 Amperes. MINI-FUSIBLE 30 AMPLittle Fuse, 30 Amperes. MINI-FUSIBLE 30 AMP
-
PF2710000747 Little Fuse, 30 Amperes. MINI-FUSIBLE 30 AMPLittle Fuse, 30 Amperes. MINI-FUSIBLE 30 AMP
-
PF2710000747 Little Fuse, 30 Amperes. MINI-FUSIBLE 30 AMPLittle Fuse, 30 Amperes. MINI-FUSIBLE 30 AMP
-
PF2710000888 Housing, 6 Circuits. PACKARD 12059573Housing, 6 Circuits. PACKARD 12059573
-
PF2710000889 Lock. PACKARD 12059195Lock. PACKARD 12059195
-
PF2278000218 Wire Seal. PACKARD 15324982Wire Seal. PACKARD 15324982
-
PF2710000918 Female Terminal. PACKARD 12077411Female Terminal. PACKARD 12077411
-
PF2710000890 Female Terminal. PACKARD 12129493Female Terminal. PACKARD 12129493
-
PF3278001326 Fuse Holder Cap. PACKARD 12033731Fuse Holder Cap. PACKARD 12033731
-
PF3278000805 Cushion. PRO-TAC 20100-RAACushion. PRO-TAC 20100-RAA
-
PF3710001613 Fuse. LITTLEFUSE 257040Fuse. LITTLEFUSE 257040
-
PF3278001325 Fuse Holder. PACKARD 12033769Fuse Holder. PACKARD 12033769
-
PF3710000992 Clip. PACKARD 15495795Clip. PACKARD 15495795
-
PF3710000113 Female Terminal. PACKARD 12066614Female Terminal. PACKARD 12066614
-
PG710004020 Headlamp Protector CapHeadlamp Protector Cap
-
PG710004010 Female Housing. PACKARD-DELPHI 13875383Female Housing. PACKARD-DELPHI 13875383
-
PG515177217 Lock. DELPHI 10726102Lock. DELPHI 10726102
-
PR515175495 Female Housing, 3 Circuits. AMP 174921-2Female Housing, 3 Circuits. AMP 174921-2
-
PR710003896 Female Terminal. AMP 173630-6Female Terminal. AMP 173630-6
-
RD1710000879 Housing, 3 Circuits. FURUKAWA QLW-A-B3FBHousing, 3 Circuits. FURUKAWA QLW-A-B3FB
-
RD1710000882 Cap. QLW-W-DCap. QLW-W-D
-
RD1710000881 Seal. QLW-W-200Seal. QLW-W-200
-
RD1710000877 Terminal. FURUKAWA QLW-F-300Terminal. FURUKAWA QLW-F-300
-
SS1409010300 Female Terminal. AMP 2-520128-2Female Terminal. AMP 2-520128-2
-
SS2409010300 Female Terminal. AMP 2-520128-2Female Terminal. AMP 2-520128-2
-
710002896 Tie-Rap Clip. HELLERMAN TYTON 150-76090Tie-Rap Clip. HELLERMAN TYTON 150-76090
-
710003168 Christmas Tree Tie-Rap 200 mm. HELLERMAN TYTON T50RTM250HSM4Christmas Tree Tie-Rap 200 mm. HELLERMAN TYTON T50RTM250HSM4
