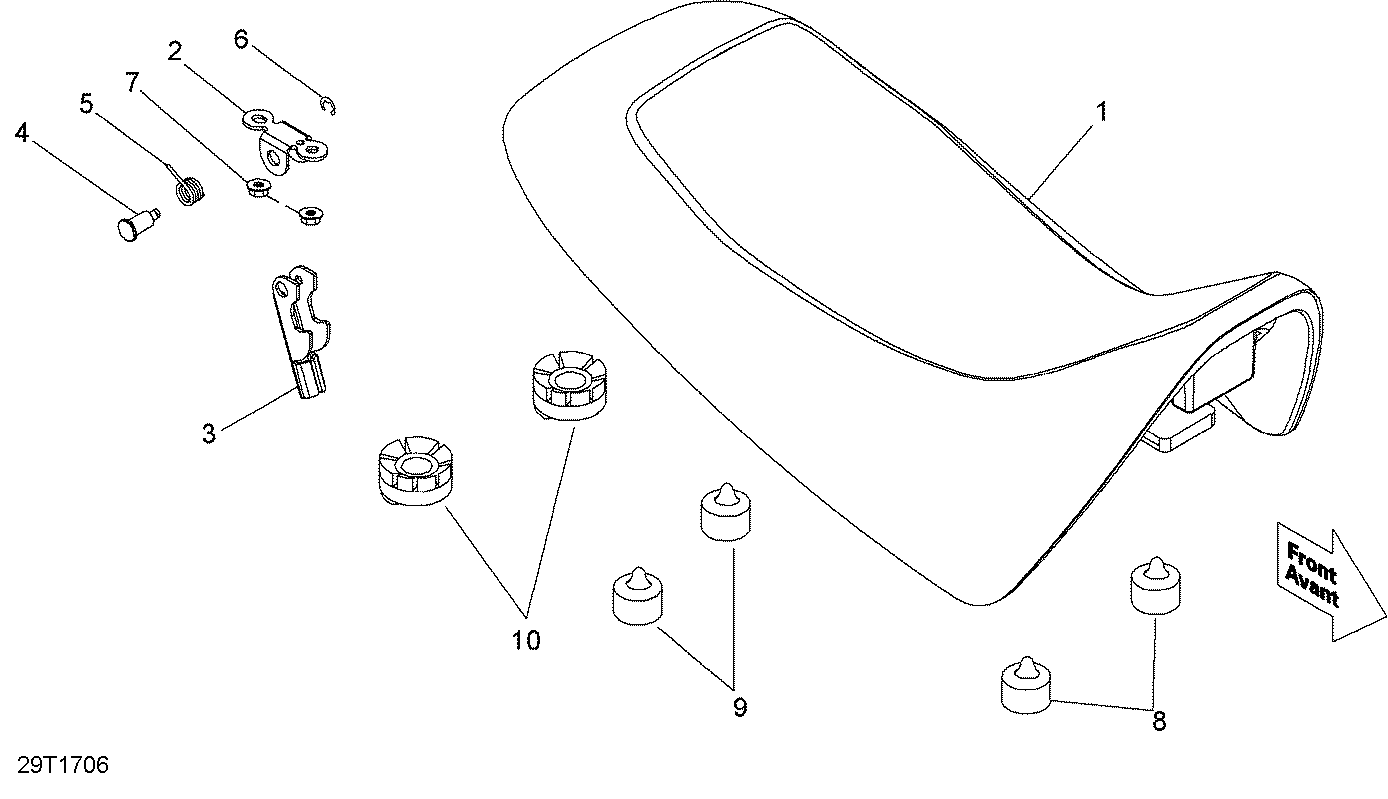

09- Seat для BRP 3- DS 90 X - 2018
-
№АртикулНазвание
-
1V77100DGF07H SeatSeat
-
2V77232MAA020 Seat Lock StaySeat Lock Stay
-
3V77239MAA030LL Seat LockSeat Lock
-
4V11200MAA030LL Seat Lock PinSeat Lock Pin
-
5V75581MAA020LL Seat Lock SpringSeat Lock Spring
-
6V90605MAA010LL CirclipCirclip
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8V85258MAA010 Rubber CushionRubber Cushion
-
9V85268DGF020LL Rubber CushionRubber Cushion
-
10V85268MAA010LL Rubber CushionRubber Cushion
