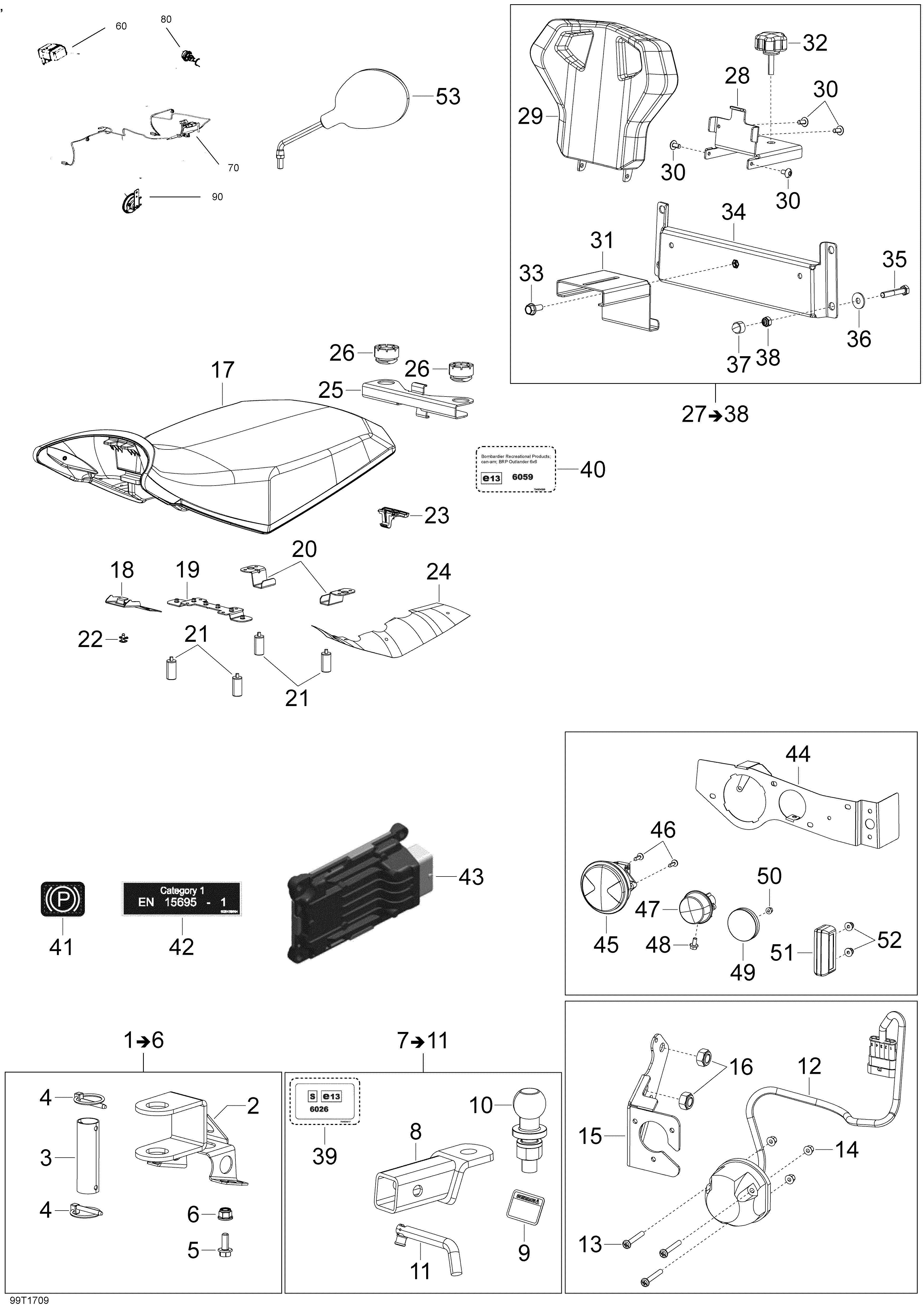

11- T3 Parts для BRP Outlander 6X6 - 1000 EFI - 2017
-
№АртикулНазвание
-
2705205025 Front Coupling DeviceFront Coupling Device
-
3605456511 PinPin
-
4605456518 Linch PinLinch Pin
-
5207682044 Hex. Flange Screw M8 x 20Hex. Flange Screw M8 x 20
-
6233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
7705204158 Coupling Ball Ass'y. Includes 7 To 11Coupling Ball Ass'y. Includes 7 To 11
-
11705204490 Hitch PinHitch Pin
-
12515177667 Trailer HarnessTrailer Harness
-
14233251434 Elastic Flange Nut M5Elastic Flange Nut M5
-
15705204572 Plug Fastening PlatePlug Fastening Plate
-
16232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
17708002208 Seat Ass'ySeat Ass'y
-
18605456520 Front Bottom SupportFront Bottom Support
-
19510005986 Middle Bottom SupportMiddle Bottom Support
-
20510005988 Rear Bottom SupportRear Bottom Support
-
21605456546 Rubber DamperRubber Damper
-
22293150067 Tri-Fast RivetTri-Fast Rivet
-
23708000909 LatchLatch
-
24705005761 Heat ShieldHeat Shield
-
25705204016 Seat Rear RaiserSeat Rear Raiser
-
26708000760 Rubber BumperRubber Bumper
-
28705205085 Angle SupportAngle Support
-
29708001794 Back RestBack Rest
-
30250000675 Torx Truss Screw M6 x 12Torx Truss Screw M6 x 12
-
31605454799 Abrasion Resistant RubberAbrasion Resistant Rubber
-
32708001607 Back Rest BodyBack Rest Body
-
33510003533 Male HandleMale Handle
-
34207682046 Hex. Flange Screw M8 x 20Hex. Flange Screw M8 x 20
-
35708001611 Back Rest SupportBack Rest Support
-
36207084544 Hex. Cap Screw M8 x 45Hex. Cap Screw M8 x 45
-
37234082670 Flat WasherFlat Washer
-
3828056 CoverCover
-
39232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
40708002168 SleeveSleeve
-
41704904417 Instruction LabelInstruction Label
-
42704904599 Instruction LabelInstruction Label
-
43605356244 P DecalP Decal
-
44605456594 Cabin DecalCabin Decal
-
45605356527 LH Rear Light PlateLH Rear Light Plate
-
45605356528 RH Rear Light PlateRH Rear Light Plate
-
46710001645 Tail LightTail Light
-
47250000720 Torx Truss Screw K5 x 16Torx Truss Screw K5 x 16
-
48710002964 FlasherFlasher
-
49207561244 Hex. Flange Screw M6 x 12Hex. Flange Screw M6 x 12
-
50705011221 Red ReflectorRed Reflector
-
51233251434 Elastic Flange Nut M5Elastic Flange Nut M5
-
52710002055 Licence Plate LightLicence Plate Light
-
53233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
54709400406 LH MirrorLH Mirror
-
54709400407 RH MirrorRH Mirror
-
60710003239 Flasher UnitFlasher Unit
-
70710004842 Harness Ass'yHarness Ass'y
-
80710001726 Day LightDay Light
-
90710004791 HornHorn
