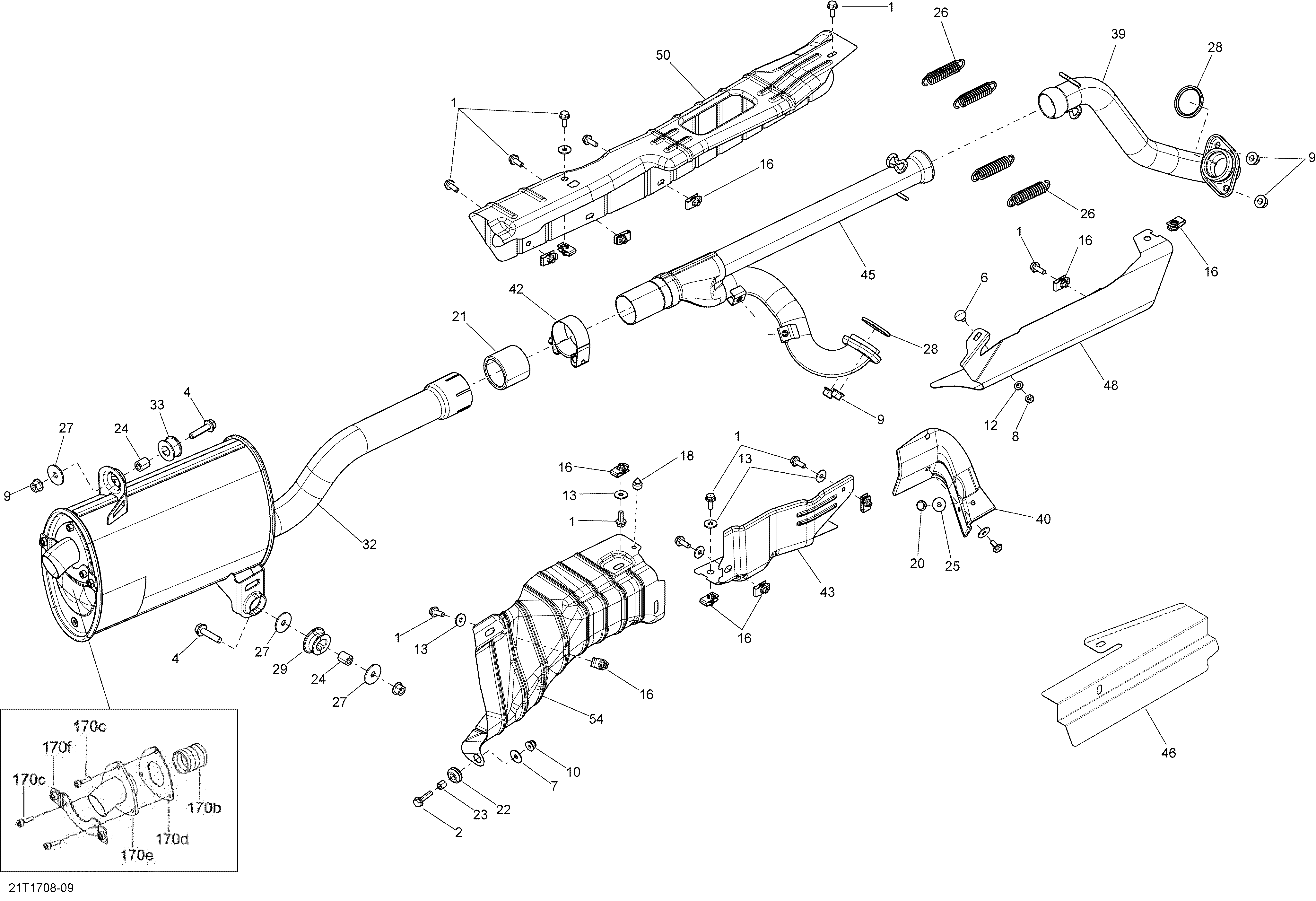

01- Exhaust System для BRP Outlander 6X6 - 1000 EFI - 2017
-
№АртикулНазвание
-
1207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
1207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
4207683534 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
6207761244 Carriage Bolt M6 X 12Carriage Bolt M6 X 12
-
7224060201 Flat WasherFlat Washer
-
8232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
9233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12234061410 Flat Washer 6 mmFlat Washer 6 mm
-
13234062410 Flat Washer 6 mmFlat Washer 6 mm
-
16250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
18293830005 Rubber BumperRubber Bumper
-
20250000574 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
21707601544 Pipe GasketPipe Gasket
-
22293720053 GrommetGrommet
-
23293900105 BushingBushing
-
24293900116 Spacer BushingSpacer Bushing
-
25250200082 Flat WasherFlat Washer
-
26415107100 SpringSpring
-
27250200158 Flat Washer M8Flat Washer M8
-
27503032900 WasherWasher
-
28707600317 GasketGasket
-
29707600448 RubberRubber
-
32707601411 MufflerMuffler
-
33707600701 Anti-Vibration RubberAnti-Vibration Rubber
-
39707600627 Front Head PipeFront Head Pipe
-
40707600932 Pipe ProtectorPipe Protector
-
42293650177 Norma Gear ClampNorma Gear Clamp
-
43707601484 ProtectorProtector
-
45707601455 Rear Head PipeRear Head Pipe
-
46707601429 Rear Heat ShieldRear Heat Shield
-
50707601486 ProtectorProtector
-
54707601425 ProtectorProtector
-
170b715900089 Spark Arrestor. OptionalSpark Arrestor. Optional
-
170c205062060 Socket Head Screw M6 X 20. OptionalSocket Head Screw M6 X 20. Optional
-
170d715900149 Gasket. OptionalGasket. Optional
-
170e715900143 Muffler End Piece. OptionalMuffler End Piece. Optional
-
170f715900147 Support. OptionalSupport. Optional
-
171707601604 Pipe. OptionalPipe. Optional
