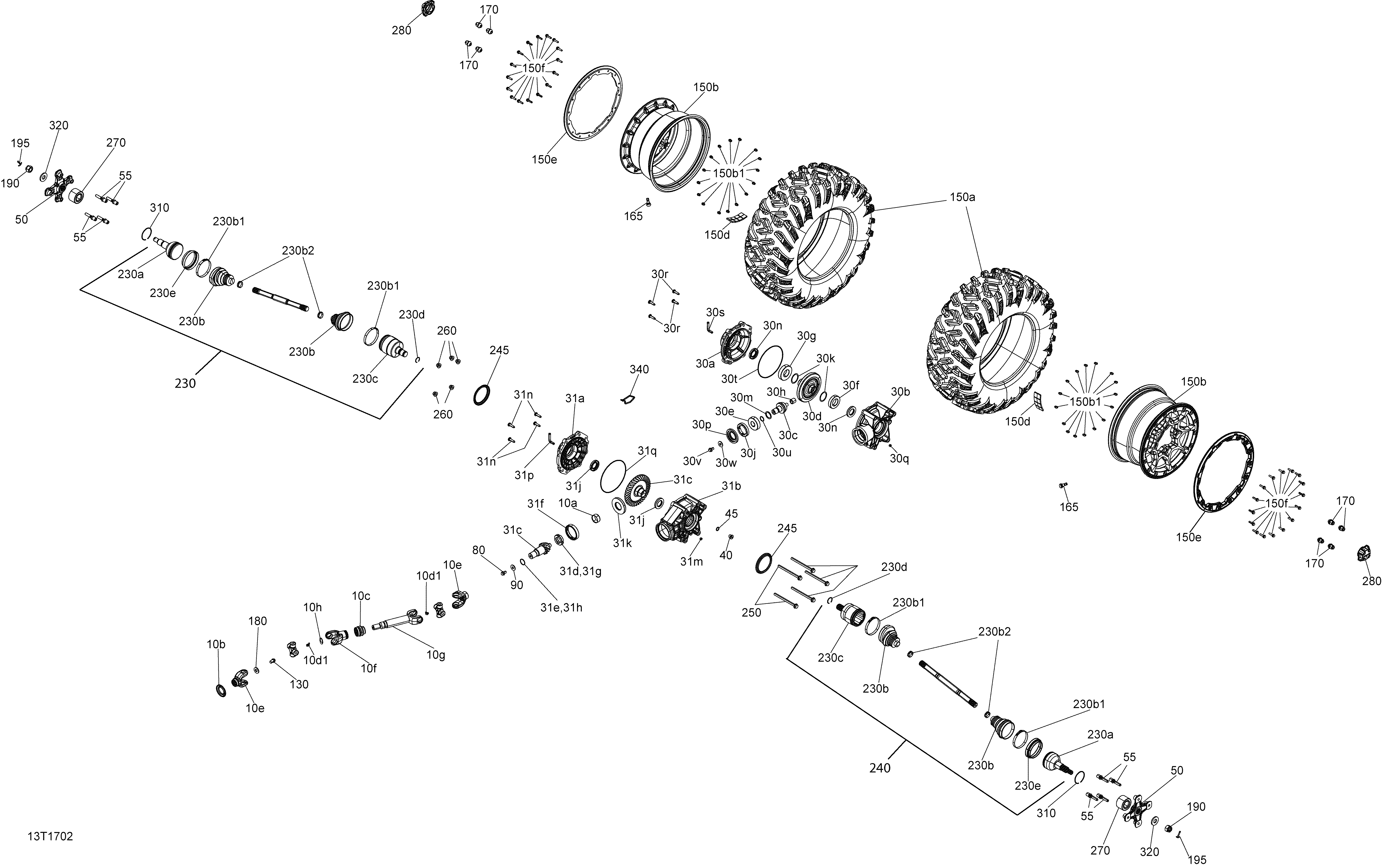

08- Drive System, Rear - All Models для BRP Outlander - Outlander MAX 570 PRO-650-850-1000 - 2017
-
№АртикулНазвание
-
10>10g703500929 Rear Propeller Shaft Ass'y Kit. Outlander Pro. Include 10a to 10gRear Propeller Shaft Ass'y Kit. Outlander Pro. Include 10a to 10g
-
10>10h703500925 Rear Propeller Shaft Ass'y Kit. Outlander Except Pro. Include 10a to 10hRear Propeller Shaft Ass'y Kit. Outlander Except Pro. Include 10a to 10h
-
10>10g703500930 Rear Propeller Shaft Ass'y Kit. Outlander Max Pro. Include 10a to 10gRear Propeller Shaft Ass'y Kit. Outlander Max Pro. Include 10a to 10g
-
10>10h703500926 Rear Propeller Shaft Ass'y Kit. Outlander Max Except Pro. Include 10a to 10hRear Propeller Shaft Ass'y Kit. Outlander Max Except Pro. Include 10a to 10h
-
10>10g703500931 Rear Propeller Shaft Ass'y Kit. Package XMR 850. Include 10a to 10gRear Propeller Shaft Ass'y Kit. Package XMR 850. Include 10a to 10g
-
10>10g703500927 Rear Propeller Shaft Ass'y Kit. Package XMR 1000. Include 10a to 10gRear Propeller Shaft Ass'y Kit. Package XMR 1000. Include 10a to 10g
-
10a705400036 Wear RingWear Ring
-
10b705501123 ProtectorProtector
-
10c715900118 Rubber BootRubber Boot
-
10d>10d1703500846 Universal Joint Ass'y. Package XMR 850, 1000, PRO. Include 10d to 10d1Universal Joint Ass'y. Package XMR 850, 1000, PRO. Include 10d to 10d1
-
10d>10d1715900326 Universal Joint. Except Package XMR 850, 1000, PRO. Include 10d to 10d1Universal Joint. Except Package XMR 850, 1000, PRO. Include 10d to 10d1
-
10d1715900295 Grease Fitting. Package XMR 1000Grease Fitting. Package XMR 1000
-
10d1715900295 Grease Fitting. Outlander, Outlander Max Except ProGrease Fitting. Outlander, Outlander Max Except Pro
-
10e715900271 Joint. Package XMR 850, 1000Joint. Package XMR 850, 1000
-
10e715900437 Joint. Outlander, Outlander Max Except ProJoint. Outlander, Outlander Max Except Pro
-
10f715900436 Joint. Package XMR 1000, PROJoint. Package XMR 1000, PRO
-
10f715900438 Joint. Package XMR 850 PROJoint. Package XMR 850 PRO
-
10g715900106 Spline Yoke. Package PROSpline Yoke. Package PRO
-
10h705501123 Protector. Except Package XMR 850, 1000, PROProtector. Except Package XMR 850, 1000, PRO
-
30>30w703500878 Final Drive Unit. Except Package XMR 850, XMR 1000. Includes 30 to 30wFinal Drive Unit. Except Package XMR 850, XMR 1000. Includes 30 to 30w
-
30a705502051 Rear Cover. Except Package XMR 850, XMR 1000Rear Cover. Except Package XMR 850, XMR 1000
-
30b705502052 Rear Pinion Cover. Except Package XMR 850, XMR 1000Rear Pinion Cover. Except Package XMR 850, XMR 1000
-
30c705502053 Pinion 10 Teeth. Except Package XMR 850, XMR 1000Pinion 10 Teeth. Except Package XMR 850, XMR 1000
-
30d705502054 Gear 36 Teeth. Except Package XMR 850, XMR 1000Gear 36 Teeth. Except Package XMR 850, XMR 1000
-
30e705502055 Ball Bearing. Except Package XMR 850, XMR 1000Ball Bearing. Except Package XMR 850, XMR 1000
-
30f705502056 Ball Bearing. Except Package XMR 850, XMR 1000Ball Bearing. Except Package XMR 850, XMR 1000
-
30g705502057 Ball Bearing. Except Package XMR 850, XMR 1000Ball Bearing. Except Package XMR 850, XMR 1000
-
30h705502058 Needle Bearing. Except Package XMR 850, XMR 1000Needle Bearing. Except Package XMR 850, XMR 1000
-
30j705502059 Nut. Except Package XMR 850, XMR 1000Nut. Except Package XMR 850, XMR 1000
-
30k705502060 Differential Shim 0.02 mm. Except Package XMR 850, XMR 1000Differential Shim 0.02 mm. Except Package XMR 850, XMR 1000
-
30m705502061 Pinion Gear Shim 1.67 mm. Except Package XMR 850, XMR 1000Pinion Gear Shim 1.67 mm. Except Package XMR 850, XMR 1000
-
30n705501556 Oil Seal. Except Package XMR 850, XMR 1000Oil Seal. Except Package XMR 850, XMR 1000
-
30p705502062 Oil Seal. Except Package XMR 850, XMR 1000Oil Seal. Except Package XMR 850, XMR 1000
-
30q705501724 Plug Drain. Except Package XMR 850, XMR 1000Plug Drain. Except Package XMR 850, XMR 1000
-
30r705502063 Screw. Except Package XMR 850, XMR 1000Screw. Except Package XMR 850, XMR 1000
-
30s705501584 Breather Tube. Except Package XMR 850, XMR 1000Breather Tube. Except Package XMR 850, XMR 1000
-
30t705502064 Seal. Except Package XMR 850, XMR 1000Seal. Except Package XMR 850, XMR 1000
-
30u705502065 O-Ring. Except Package XMR 850, XMR 1000O-Ring. Except Package XMR 850, XMR 1000
-
30v250000615 Hex Flanged Screwv M10 X 16. Except Package XMR 850, XMR 1000Hex Flanged Screwv M10 X 16. Except Package XMR 850, XMR 1000
-
30w250200014 Flat Washer M10. Except Package XMR 850, XMR 1000Flat Washer M10. Except Package XMR 850, XMR 1000
-
31>31q705502178 Rear Differential Ass'y. Package XMR 850, XMR 1000. Includes 30 to 30qRear Differential Ass'y. Package XMR 850, XMR 1000. Includes 30 to 30q
-
31a705502179 Rear Cover. Package XMR 850, XMR 1000Rear Cover. Package XMR 850, XMR 1000
-
31b705502180 Rear Pinion Cover. Package XMR 850, XMR 1000Rear Pinion Cover. Package XMR 850, XMR 1000
-
31c703500870 Differential Gear Kit. Package XMR 850, XMR 1000Differential Gear Kit. Package XMR 850, XMR 1000
-
31d705501550 Nut. Package XMR 850, XMR 1000Nut. Package XMR 850, XMR 1000
-
31e705501554 O-Ring. Package XMR 850, XMR 1000O-Ring. Package XMR 850, XMR 1000
-
31f705501549 Nut. Package XMR 850, XMR 1000Nut. Package XMR 850, XMR 1000
-
31j705501556 Oil Seal. Package XMR 850, XMR 1000Oil Seal. Package XMR 850, XMR 1000
-
31k705501557 Oil Seal. Package XMR 850, XMR 1000Oil Seal. Package XMR 850, XMR 1000
-
31m705501724 Plug Drain. Package XMR 850, XMR 1000Plug Drain. Package XMR 850, XMR 1000
-
31n705502063 Screw. Package XMR 850, XMR 1000Screw. Package XMR 850, XMR 1000
-
31p705501584 Breather Tube. Package XMR 850, XMR 1000Breather Tube. Package XMR 850, XMR 1000
-
31q705501711 O-Ring. Package XMR 850, XMR 1000O-Ring. Package XMR 850, XMR 1000
-
40705500504 Fill Level PlugFill Level Plug
-
45705500506 Copper WasherCopper Washer
-
50705501900 Wheel HubWheel Hub
-
55250300048 Wheel StudWheel Stud
-
80250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
90250200014 Flat Washer M10Flat Washer M10
-
130250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
150a705501767 Rear Tire. Package STD. CARLISLE 530008 (PD-530008)Rear Tire. Package STD. CARLISLE 530008 (PD-530008)
-
150a705501768 Rear Tire. Package DPS Europe. CARLISLE 598251 (PD-598251)Rear Tire. Package DPS Europe. CARLISLE 598251 (PD-598251)
-
150a705502444 Rear Tire. Package DPS North AmericaRear Tire. Package DPS North America
-
150a705501767 Rear Tire. Package DPS T3. CARLISLE 530008 (PD-530008)Rear Tire. Package DPS T3. CARLISLE 530008 (PD-530008)
-
150a705502297 Rear Tire. Package Pro, Hunter. CARLISLE 6P0361Rear Tire. Package Pro, Hunter. CARLISLE 6P0361
-
150a705501836 Rear Tire. Package XMR 650. MAXXIS 28 X 10 X 12 (V -12040 - F - 5)Rear Tire. Package XMR 650. MAXXIS 28 X 10 X 12 (V -12040 - F - 5)
-
150a705400962 Tire. Package XMR 850, XMR 1000. CARLISLE 560524 (PD-560524-2)Tire. Package XMR 850, XMR 1000. CARLISLE 560524 (PD-560524-2)
-
150a705502421 Rear Tire. Package XTRear Tire. Package XT
-
150a705501770 Rear Tire. Package XTP, LTD Europe. CARLISLE 57A343 (PD-57A343)Rear Tire. Package XTP, LTD Europe. CARLISLE 57A343 (PD-57A343)
-
150a705502421 Rear Tire. Package XTP, LTD Except EuropeRear Tire. Package XTP, LTD Except Europe
-
150a705501767 Rear Tire. Package XXC T3. CARLISLE 530008 (PD-530008)Rear Tire. Package XXC T3. CARLISLE 530008 (PD-530008)
-
150b705401848 Black Rim. Package XMR 850, XMR 1000Black Rim. Package XMR 850, XMR 1000
-
150b705501802 Black Rear Rim. Package STDBlack Rear Rim. Package STD
-
150b705501856 Black Rear Rim. Package LTD EuropeBlack Rear Rim. Package LTD Europe
-
150b705502402 Black Rear Rim. Package LTD Except EuropeBlack Rear Rim. Package LTD Except Europe
-
150b705501493 Black Rear Rim. Package Pro, HunterBlack Rear Rim. Package Pro, Hunter
-
150b705501856 Black Rear Rim. Package XMR 650Black Rear Rim. Package XMR 650
-
150b705502401 Black Rear Rim. Package XTBlack Rear Rim. Package XT
-
150b705502244 Black Rear Rim. Package XTP EuropeBlack Rear Rim. Package XTP Europe
-
150b705502146 Black Rear Rim. Package XTP Except EuropeBlack Rear Rim. Package XTP Except Europe
-
150b705502401 Black Rear Rim. Package DPS Europe, T3Black Rear Rim. Package DPS Europe, T3
-
150b705502401 Black Rear Rim. Package DPS North AmericaBlack Rear Rim. Package DPS North America
-
150b705502401 Black Rear Rim. Package XXC T3Black Rear Rim. Package XXC T3
-
150b1293450317 Insert. Package XTPInsert. Package XTP
-
150d705501385 1/2 OZ Weight1/2 OZ Weight
-
150e705401867 Black Reinforcement Disc. Package XTP EuropeBlack Reinforcement Disc. Package XTP Europe
-
150e705401840 Black Reinforcement Disc. Package XTP Except EuropeBlack Reinforcement Disc. Package XTP Except Europe
-
150f250000787 Hex. Flanged Screw M6 X 25. Package XTPHex. Flanged Screw M6 X 25. Package XTP
-
165293000110 Valve CapValve Cap
-
170250100042 Steel Wheel Nut. Package STDSteel Wheel Nut. Package STD
-
170250100082 Chrome Wheel Nut M10 X 1.25. Package DPSChrome Wheel Nut M10 X 1.25. Package DPS
-
170250100100 Black Wheel Nut M10 X 1.25. Package Pro, HunterBlack Wheel Nut M10 X 1.25. Package Pro, Hunter
-
170250100100 Black Wheel Nut M10 X 1.25. Package XT, XTPBlack Wheel Nut M10 X 1.25. Package XT, XTP
-
170250100100 Black Wheel Nut M10 X 1.25. Package LTDBlack Wheel Nut M10 X 1.25. Package LTD
-
170250100100 Black Wheel Nut M10 X 1.25. Package XMRBlack Wheel Nut M10 X 1.25. Package XMR
-
180250200005 Conical Spring Washer M12Conical Spring Washer M12
-
190232291413 Hex. Flanged Castellated Nut M18Hex. Flanged Castellated Nut M18
-
195250400071 Cotter PinCotter Pin
-
230705502473 RH Homocinetic Joint. Except Package XMR. Includes 230 to 230dRH Homocinetic Joint. Except Package XMR. Includes 230 to 230d
-
230705502475 RH Homocinetic Joint. Package XMR. Includes 230 to 230dRH Homocinetic Joint. Package XMR. Includes 230 to 230d
-
240705502472 LH Homocinetic Joint. Except Package XMR. Includes 230 to 230dLH Homocinetic Joint. Except Package XMR. Includes 230 to 230d
-
240705502474 LH Homocinetic Joint. Package XMR. Includes 230 to 230eLH Homocinetic Joint. Package XMR. Includes 230 to 230e
-
230a705501776 CV JointCV Joint
-
230b705501864 Boot KitBoot Kit
-
230b1715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
230b2715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
230c705501780 Plunging JointPlunging Joint
-
230d705501781 CirclipCirclip
-
230e705501842 Joint ProtectorJoint Protector
-
245705501124 Wear RingWear Ring
-
250250000508 Hex. Flanged Screw M10 x 135Hex. Flanged Screw M10 x 135
-
260233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
270293350040 Cone BearingCone Bearing
-
280705401541 Wheel Cap. Package XMR 850, XMR 1000Wheel Cap. Package XMR 850, XMR 1000
-
280705400928 Wheel Cap. Except Package XMR 850, XMR 1000Wheel Cap. Except Package XMR 850, XMR 1000
-
310293370019 CirclipCirclip
-
320250200049 Spring WasherSpring Washer
-
340293750008 Tie-Rap 350 mmTie-Rap 350 mm
