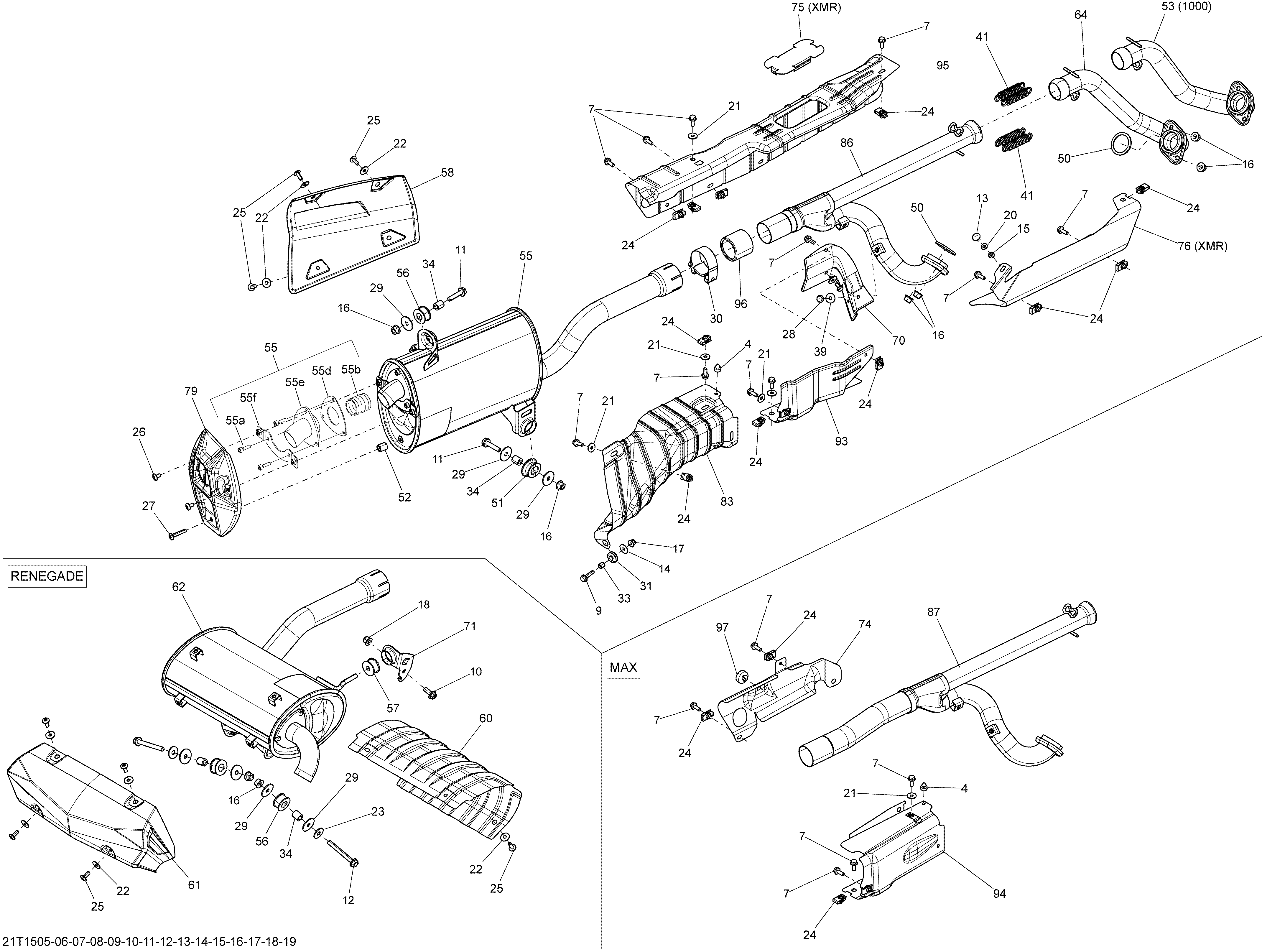

01- Exhaust System _21T1514 для BRP Outlander MAX 500 EFI - 2015
-
№АртикулНазвание
-
4293830005 Rubber BumperRubber Bumper
-
7207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
9207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
11207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
14224060201 Flat WasherFlat Washer
-
16233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
21234062410 Flat Washer 6 mmFlat Washer 6 mm
-
22234062670 Flat WasherFlat Washer
-
24250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
25250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
26250000325 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
27250000541 Torx Screw M6 X 35Torx Screw M6 X 35
-
28250000574 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
29250200158 Flat Washer M8Flat Washer M8
-
30293650177 Norma Gear ClampNorma Gear Clamp
-
31293720053 GrommetGrommet
-
33293900105 BushingBushing
-
34293900116 Spacer BushingSpacer Bushing
-
39250200082 Flat WasherFlat Washer
-
41415107100 SpringSpring
-
50707600317 GasketGasket
-
51707600448 RubberRubber
-
52707600524 BushingBushing
-
55707600629 MufflerMuffler
-
56707600701 Anti-Vibration RubberAnti-Vibration Rubber
-
58707600710 Heat DeflectorHeat Deflector
-
64707600764 Front Head PipeFront Head Pipe
-
70707600932 Pipe ProtectorPipe Protector
-
74707600994 Heat ShieldHeat Shield
-
79707601255 Heat Shield End CapHeat Shield End Cap
-
83707601425 ProtectorProtector
-
87707601447 Rear Head PipeRear Head Pipe
-
93707601484 ProtectorProtector
-
94707601485 ProtectorProtector
-
95707601486 ProtectorProtector
-
96707601544 Pipe GasketPipe Gasket
-
97708000506 Rubber StopperRubber Stopper
