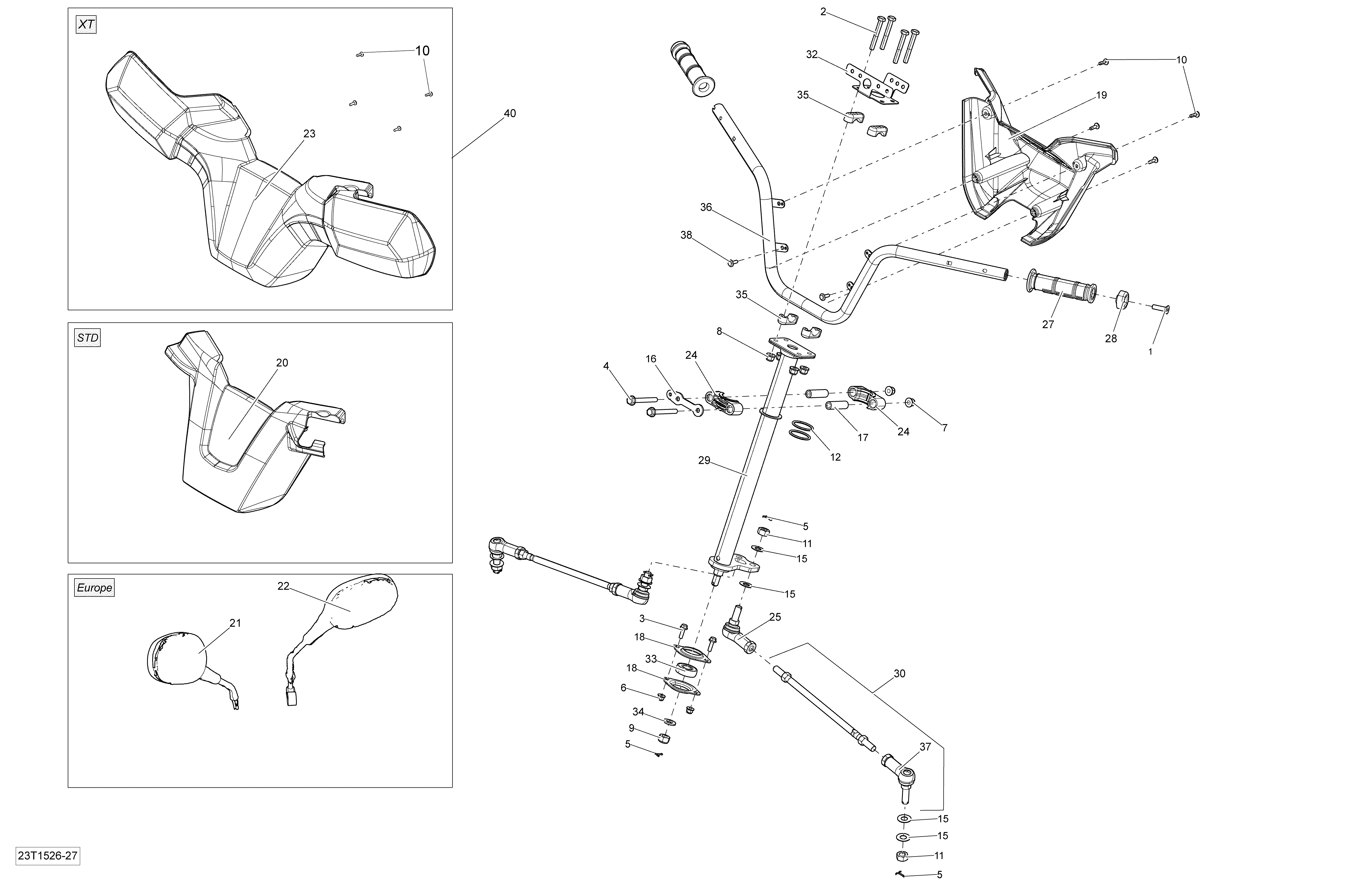

07- Steering _23T1527 для BRP Outlander Max 400 EFI, STD, XT (International only) - 2015

  • №
    Артикул
    Название
  • 1
    205883046 Socket Head Screw, M8
    Socket Head Screw, M8
  • 2
    207086046 Hex. Screw M8 X 60
    Hex. Screw M8 X 60
  • 3
    207562044 Flanged Screw M6 X 20, Scotch Grip
    Flanged Screw M6 X 20, Scotch Grip
  • 4
    207687044 Hex. Flanged Screw M8 X 70
    Hex. Flanged Screw M8 X 70
  • 5
    211400013 Cotter Pin
    Cotter Pin
  • 6
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 7
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 8
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
  • 9
    250000047 Hex. Flanged Elastic Nut M12
    Hex. Flanged Elastic Nut M12
  • 10
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 11
    250100099 Nut M12
    Nut M12
  • 12
    293300068 O-Ring
    O-Ring
  • 15
    706200281 Hardened Washer
    Hardened Washer
  • 16
    709400053 Stopper Plate
    Stopper Plate
  • 17
    709400072 Bushing
    Bushing
  • 18
    709400152 Thrust Washer
    Thrust Washer
  • 19
    709400313 Black Rear Steering Cover
    Black Rear Steering Cover
  • 20
    709400386 Black Front Steering Cover. Model-STD
    Black Front Steering Cover. Model-STD
  • 24
    709400471 Half Bushing
    Half Bushing
  • 25
    709400487 Ball Joint, RH Threads
    Ball Joint, RH Threads
  • 27
    709400493 Handle Grip
    Handle Grip
  • 28
    709400868 End Piece
    End Piece
  • 29
    709401056 Main Tube
    Main Tube
  • 30
    709401059 Tie Rod Ass'y
    Tie Rod Ass'y
  • 32
    709400586 Connector Bracket
    Connector Bracket
  • 33
    709400439 Ball Bearing
    Ball Bearing
  • 34
    234021410 Flat Washer 12 mm
    Flat Washer 12 mm
  • 35
    709400919 Steering Support
    Steering Support
  • 36
    709401237 Steering
    Steering
  • 37
    709400486 Ball Joint, LH Threads
    Ball Joint, LH Threads
  • 38
    243141640 Hex. Flanged Plastite Screw M4.8 X 16
    Hex. Flanged Plastite Screw M4.8 X 16
  • 40
    703100217 Handle Guard, XT. Model-XT
    Handle Guard, XT. Model-XT
