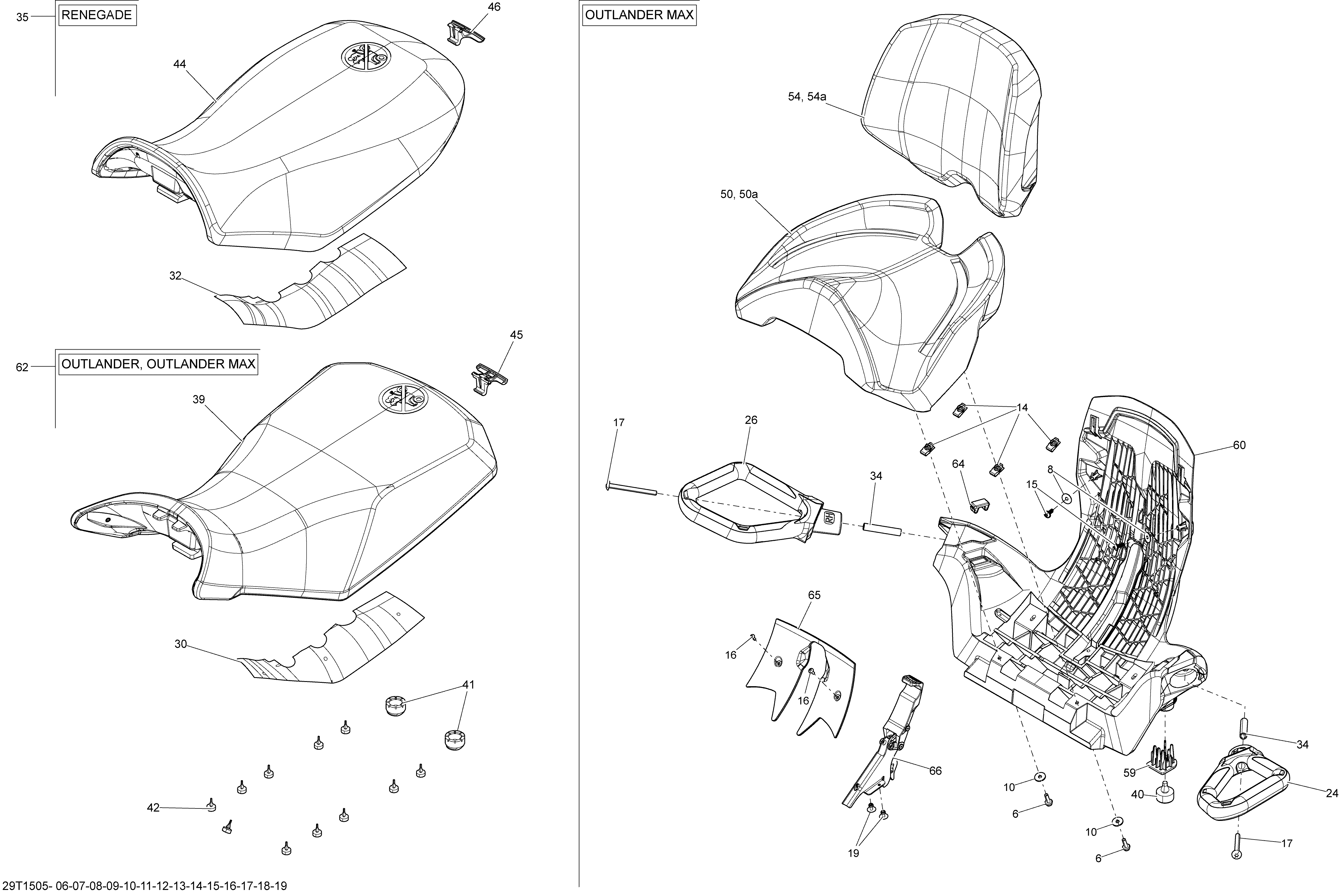

09- Seat _29T1517 для BRP Outlander MAX 1000 EFI - 2015
-
№АртикулНазвание
-
6207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
8224060201 Flat WasherFlat Washer
-
10224061201 Flat WasherFlat Washer
-
14250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
15250000546 Oval Head Torx Screw K60 X 16Oval Head Torx Screw K60 X 16
-
16250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
17250000617 Torx Screw M8 X 90Torx Screw M8 X 90
-
19293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
24703500806 LH Passenger Seat Handle KitLH Passenger Seat Handle Kit
-
26703500807 RH Passenger Seat Handle KitRH Passenger Seat Handle Kit
-
30705005761 Heat ShieldHeat Shield
-
34705006129 SleeveSleeve
-
39708000724 Seat CoverSeat Cover
-
40708000758 Rubber StopperRubber Stopper
-
42708000759 Rubber StopperRubber Stopper
-
45708000909 LatchLatch
-
50708001598 Passenger SeatPassenger Seat
-
50a708001582 Passenger Seat CoverPassenger Seat Cover
-
54708001600 Back RestBack Rest
-
54a708001847 Back Rest CoverBack Rest Cover
-
59708001483 Seat SupportSeat Support
-
60708001487 Seat BaseSeat Base
-
62708001577 Seat Ass'y. OUT-MAX Package-XTPSeat Ass'y. OUT-MAX Package-XTP
-
62708001536 Seat Ass'y. OUT-MAX Package-DPSSeat Ass'y. OUT-MAX Package-DPS
-
62708001536 Seat Ass'y. OUT-MAX Package-XTSeat Ass'y. OUT-MAX Package-XT
-
64708001511 InsertInsert
-
65708001512 CapCap
-
66708001532 LatchLatch
