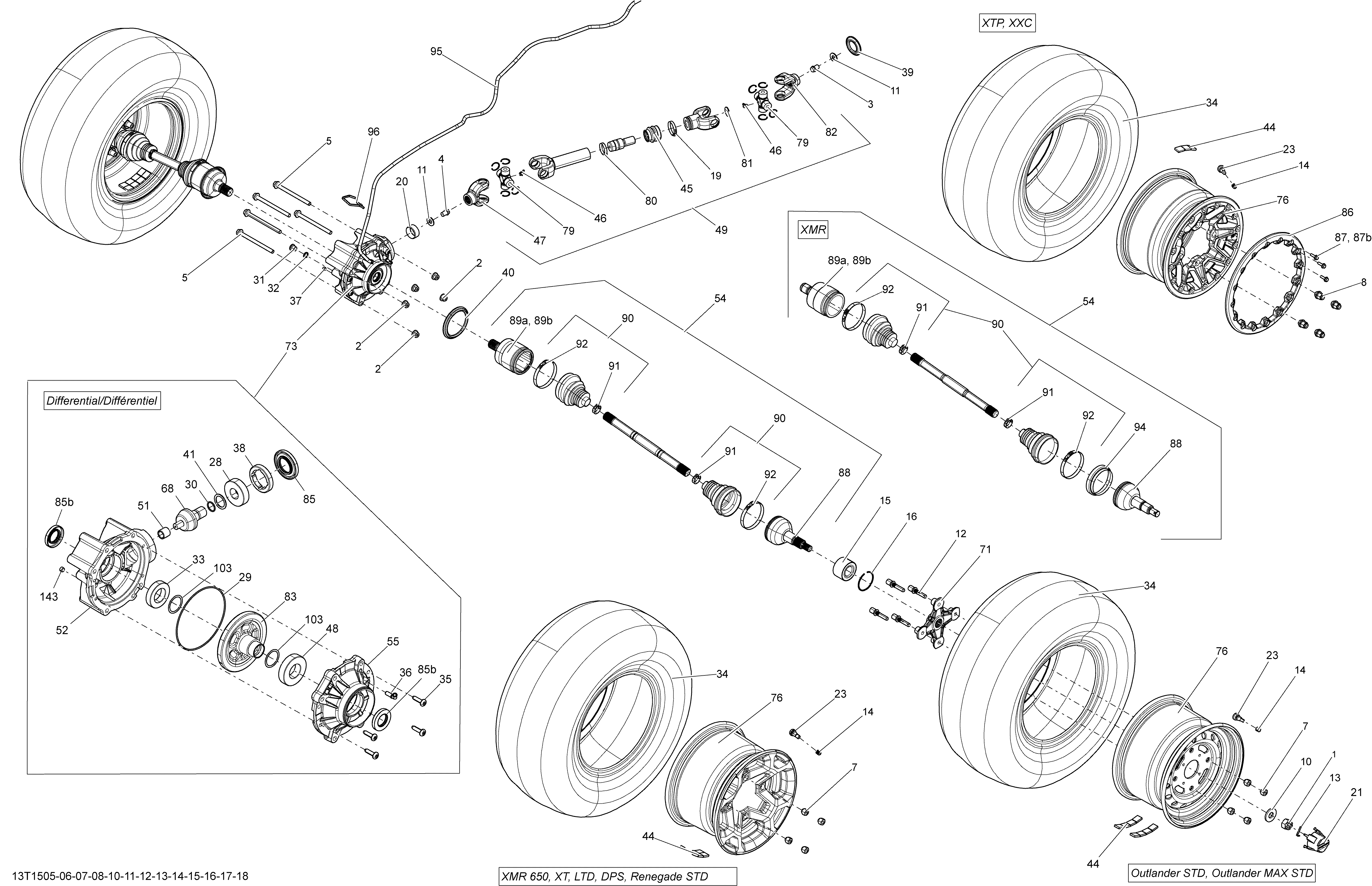

08- Drive System, Rear _13T1517 для BRP Outlander MAX 1000 EFI - 2015
-
№АртикулНазвание
-
1250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
2233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
3250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
4250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
5250000508 Hex. Flanged Screw M10 x 135Hex. Flanged Screw M10 x 135
-
7250100082 Chrome Wheel Nut M10 X 1.25Chrome Wheel Nut M10 X 1.25
-
7250100100 Black Wheel Nut M10 X 1.25. XTBlack Wheel Nut M10 X 1.25. XT
-
8250100100 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
10250200049 Spring WasherSpring Washer
-
11250200014 Flat Washer M10Flat Washer M10
-
12250300048 Wheel StudWheel Stud
-
13250400036 Cotter PinCotter Pin
-
14293000110 Valve CapValve Cap
-
15293350040 Cone BearingCone Bearing
-
16293370019 CirclipCirclip
-
19293650138 Oetiker Gear ClampOetiker Gear Clamp
-
20705400036 Wear RingWear Ring
-
21705400928 Wheel CapWheel Cap
-
23705400193 Rim Valve With CapRim Valve With Cap
-
28705502055 Ball BearingBall Bearing
-
29705502064 SealSeal
-
30705502065 O-RingO-Ring
-
31705500504 Fill Level PlugFill Level Plug
-
32705500506 Copper WasherCopper Washer
-
33705502056 Ball BearingBall Bearing
-
34705501767 Rear Tire. Package-STD, DPS Except EuropeRear Tire. Package-STD, DPS Except Europe
-
34705501768 Rear Tire. Package-DPS EuropeRear Tire. Package-DPS Europe
-
34705501769 Rear Tire. Package-XT Except Europe, XTP Except EuropeRear Tire. Package-XT Except Europe, XTP Except Europe
-
34705501770 Rear Tire. Package-XT Europe, XTP EuropeRear Tire. Package-XT Europe, XTP Europe
-
35705502063 ScrewScrew
-
36705501584 Breather TubeBreather Tube
-
37705500894 Drain PlugDrain Plug
-
38705502059 NutNut
-
39705501123 ProtectorProtector
-
40705501124 Wear RingWear Ring
-
41705502061 Pinion Gear Shim 1.67 mmPinion Gear Shim 1.67 mm
-
44705501385 1/2 OZ Weight1/2 OZ Weight
-
45715900118 Rubber BootRubber Boot
-
46715900184 Grease FittingGrease Fitting
-
47715900101 Fixe YokeFixe Yoke
-
48705502057 Ball BearingBall Bearing
-
49705501407 Rear Propeller Shaft Ass'yRear Propeller Shaft Ass'y
-
51705502058 Needle BearingNeedle Bearing
-
52705502052 Rear Pinion CoverRear Pinion Cover
-
54705501486 RH Homocinetic JointRH Homocinetic Joint
-
54705501485 LH Homocinetic JointLH Homocinetic Joint
-
55705502051 Rear CoverRear Cover
-
68705502053 Pinion 10 TeethPinion 10 Teeth
-
71705501716 Wheel Hub Ass'yWheel Hub Ass'y
-
73705501896 Rear Differential Ass'yRear Differential Ass'y
-
76705501669 Silver Rear Rim. Package-DPSSilver Rear Rim. Package-DPS
-
76705501856 Black Rear Rim. Package-XTBlack Rear Rim. Package-XT
-
76705501522 Rear Rim. Package-XTPRear Rim. Package-XTP
-
76705501675 Black Rear Rim. Package-XT CamoBlack Rear Rim. Package-XT Camo
-
79715500371 Universal JointUniversal Joint
-
80509000045 Oetiker Gear ClampOetiker Gear Clamp
-
83705502054 Gear 36 TeethGear 36 Teeth
-
85705502062 Oil SealOil Seal
-
86705401811 Orange Reinforcement DiskOrange Reinforcement Disk
-
87250000435 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
88705501776 CV JointCV Joint
-
90705501777 Rubber Boot KitRubber Boot Kit
-
91715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
92715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
95415080200 Hose, PolyurethaneHose, Polyurethane
-
96293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
103705502060 Differential Shim 0.02 mmDifferential Shim 0.02 mm
-
143705501724 Plug DrainPlug Drain
-
85b705501556 Oil SealOil Seal
-
87b293450317 InsertInsert
-
89a705501780 Plunging JointPlunging Joint
-
89b705501781 CirclipCirclip
