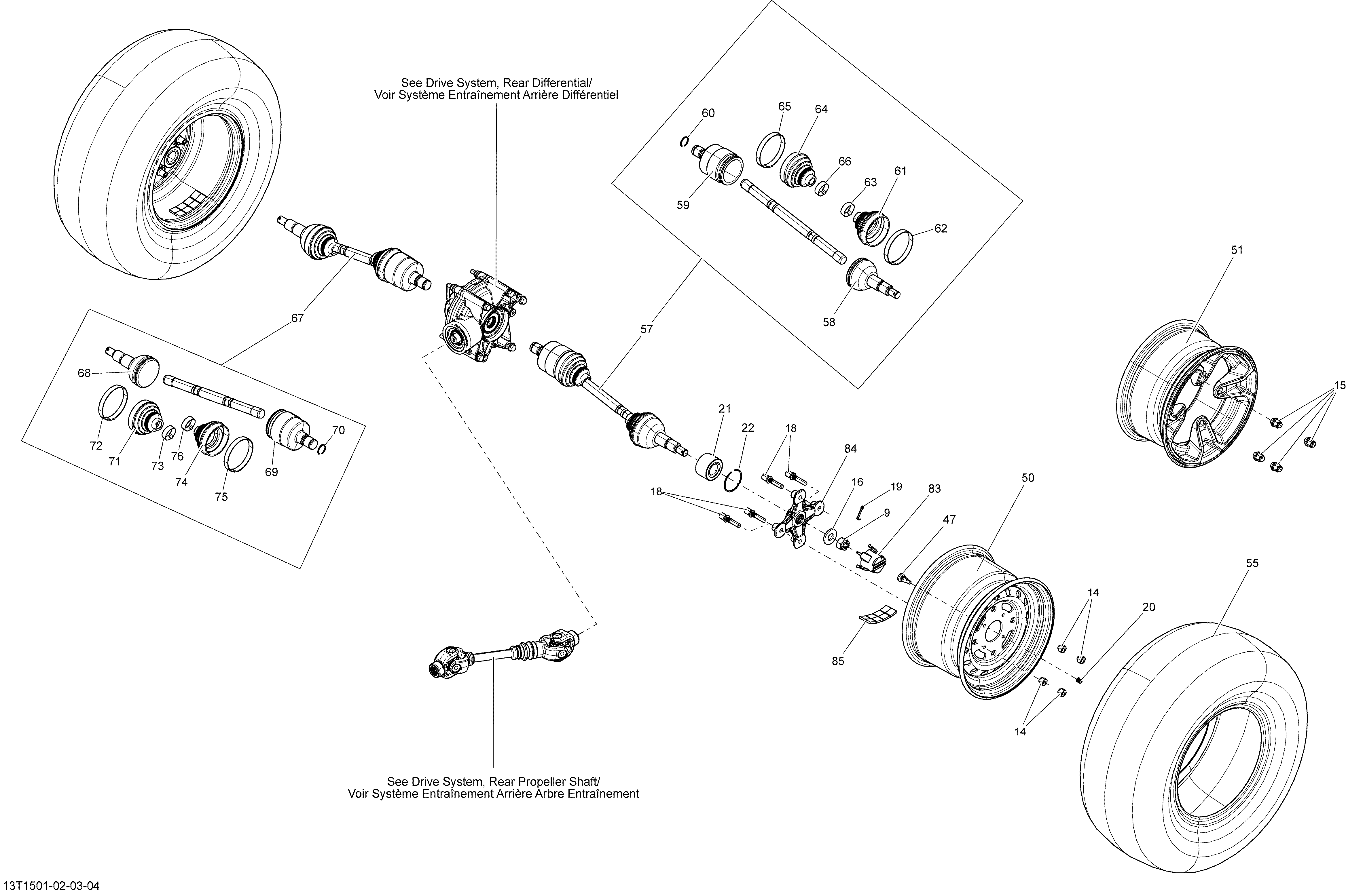

08- Drive System, Rear _13T1504 для BRP Outlander L MAX 500 EFI - 2015
-
№АртикулНазвание
-
9250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
14250100042 Wheel Nut. Package-STDWheel Nut. Package-STD
-
15250100082 Chrome Wheel Nut M10 X 1.25. Package-DPS Except CamoChrome Wheel Nut M10 X 1.25. Package-DPS Except Camo
-
15250100100 Black Wheel Nut M10 X 1.25. Package-DPS CamoBlack Wheel Nut M10 X 1.25. Package-DPS Camo
-
16250200049 Spring WasherSpring Washer
-
18250300048 Wheel StudWheel Stud
-
19250400036 Cotter PinCotter Pin
-
20293000110 Valve CapValve Cap
-
21293350040 Cone BearingCone Bearing
-
22293370019 CirclipCirclip
-
47705400193 Rim Valve With CapRim Valve With Cap
-
50705501607 Black Rear Rim. Package-STD Nord AmericaBlack Rear Rim. Package-STD Nord America
-
50705501607 Black Rear Rim. Package-STD InternationalBlack Rear Rim. Package-STD International
-
51705501934 Silver Rear Rim. Package-DPS Gray Nord AmericaSilver Rear Rim. Package-DPS Gray Nord America
-
51705501934 Silver Rear Rim. Package-DPS Gray InternationalSilver Rear Rim. Package-DPS Gray International
-
51705501934 Silver Rear Rim. Package-DPS Gray EuropeSilver Rear Rim. Package-DPS Gray Europe
-
51705501934 Silver Rear Rim. Package-DPS Yellow Nord AmericaSilver Rear Rim. Package-DPS Yellow Nord America
-
51705501934 Silver Rear Rim. Package-DPS Yellow InternationalSilver Rear Rim. Package-DPS Yellow International
-
51705501934 Silver Rear Rim. Package-DPS Yellow EuropeSilver Rear Rim. Package-DPS Yellow Europe
-
55705502164 Rear Tire. Package-STD Nord AmericaRear Tire. Package-STD Nord America
-
55705502164 Rear Tire. Package-STD InternationalRear Tire. Package-STD International
-
55705502164 Rear Tire. Package-DPS Gray Nord AmericaRear Tire. Package-DPS Gray Nord America
-
55705502164 Rear Tire. Package-DPS Gray InternationalRear Tire. Package-DPS Gray International
-
55705502165 Rear Tire. Package-DPS Gray EuropeRear Tire. Package-DPS Gray Europe
-
55705502164 Rear Tire. Package-DPS Yellow Nord AmericaRear Tire. Package-DPS Yellow Nord America
-
55705502164 Rear Tire. Package-DPS Yellow InternationalRear Tire. Package-DPS Yellow International
-
55705502165 Rear Tire. Package-DPS Yellow EuropeRear Tire. Package-DPS Yellow Europe
-
57705501897 RH Half Shaft Ass'yRH Half Shaft Ass'y
-
58705401344 CV JointCV Joint
-
59715900304 Plunging JointPlunging Joint
-
60705501781 CirclipCirclip
-
61705401345 Boot Kit, Wheel Side. Inclus 61 a 63Boot Kit, Wheel Side. Inclus 61 a 63
-
62715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
63715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
64705401346 Boot Kit, Differential Side. Inclus 64 a 66Boot Kit, Differential Side. Inclus 64 a 66
-
65715900284 Oetiker Clamp, LargeOetiker Clamp, Large
-
66715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
67705501898 LH Half Shaft Ass'yLH Half Shaft Ass'y
-
68705401344 CV JointCV Joint
-
69715900304 Plunging JointPlunging Joint
-
70705501781 CirclipCirclip
-
71705401345 Boot Kit, Wheel Side. Inclus 71 a 73Boot Kit, Wheel Side. Inclus 71 a 73
-
72715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
73715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
74705401346 Boot Kit, Differential Side. Inclus 74 a 76Boot Kit, Differential Side. Inclus 74 a 76
-
75715900284 Oetiker Clamp, LargeOetiker Clamp, Large
-
76715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
83705400928 Wheel CapWheel Cap
-
84705501716 Wheel Hub Ass'yWheel Hub Ass'y
-
85705501385 1/2 OZ Weight1/2 OZ Weight
