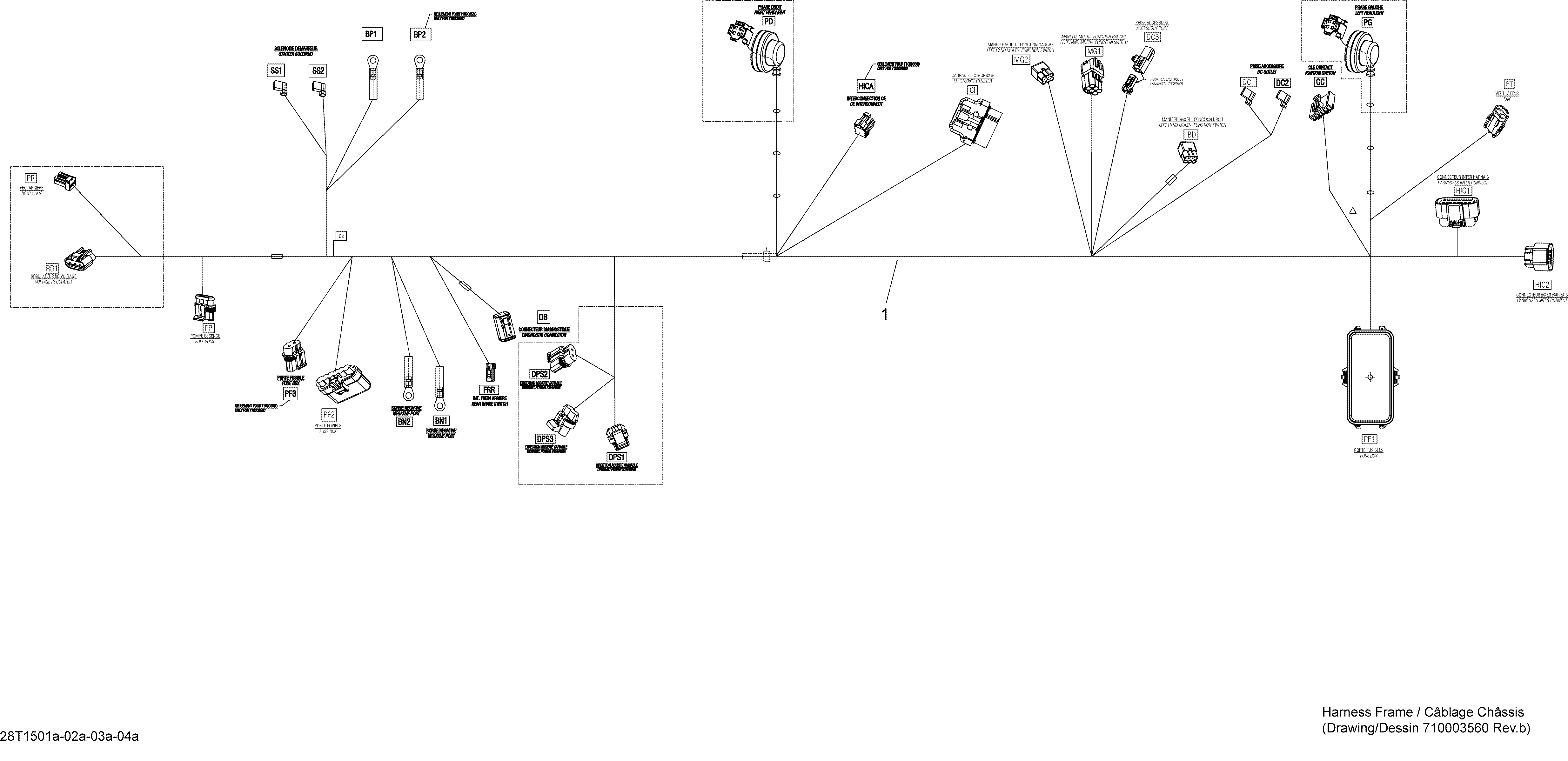

10- Electrical Harness, Frame _28T1502a для BRP Outlander L MAX 450 EFI - 2015
-
№АртикулНазвание
-
1710003560 Wiring Harness Assembly. Includes 1 to SS2Wiring Harness Assembly. Includes 1 to SS2
-
BD710000081 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
BD710000080 CapCap
-
BD710000402 Wire SealWire Seal
-
BD409012100 Female TerminalFemale Terminal
-
BN1710000913 TerminalTerminal
-
BP1710000913 TerminalTerminal
-
CC710000849 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
CC710000848 LockLock
-
CC710000274 Female TerminalFemale Terminal
-
CC710001635 TerminalTerminal
-
CI515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CI515175802 Retainer BlockRetainer Block
-
CI515175812 PlugPlug
-
CI710000399 Female HousingFemale Housing
-
CI515175803 Wire SealWire Seal
-
CI710001131 Female TerminalFemale Terminal
-
D2409012700 DiodeDiode
-
DB278002896 Housing, 6 CircuitsHousing, 6 Circuits
-
DB710003006 HousingHousing
-
DB515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
DB293000052 Sealing CapSealing Cap
-
DB278001665 Female TerminalFemale Terminal
-
DC1710002398 Female TerminalFemale Terminal
-
DC1710002399 Female TerminalFemale Terminal
-
DC2710002398 Female TerminalFemale Terminal
-
DC2710002399 Female TerminalFemale Terminal
-
DC3515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
DC3710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
DC3515175231 Female TerminalFemale Terminal
-
FP409209700 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
FP515176621 Wire SealWire Seal
-
FP710001340 Female TerminalFemale Terminal
-
FRR515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FRR710003896 Female TerminalFemale Terminal
-
FT409210100 ClipClip
-
FT278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FT278000218 Wire SealWire Seal
-
FT409004300 Male TerminalMale Terminal
-
HIC1710001226 HousingHousing
-
HIC1710001221 LockLock
-
HIC1710001225 CapCap
-
HIC1710001230 SealSeal
-
HIC1710001233 SealSeal
-
HIC1710001229 TerminalTerminal
-
HIC1710001228 TerminalTerminal
-
HIC2710001928 HousingHousing
-
HIC2710001221 LockLock
-
HIC2710001225 CapCap
-
HIC2710001233 SealSeal
-
HIC2710001332 Seal WireSeal Wire
-
HIC2710001229 TerminalTerminal
-
HIC2710001228 TerminalTerminal
-
MG1710000835 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
MG1710000080 CapCap
-
MG1710000402 Wire SealWire Seal
-
MG1409011300 Male TerminalMale Terminal
-
MG2710000081 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
MG2409012300 SealSeal
-
MG2710000402 Wire SealWire Seal
-
MG2409012100 Female TerminalFemale Terminal
-
PD515177215 Female HousingFemale Housing
-
PD515177217 LockLock
-
PF1710000781 Fuse PullerFuse Puller
-
PF1710000992 ClipClip
-
PF1710001026 Fuse CoverFuse Cover
-
PF1710003976 Fuse Shematic DecalFuse Shematic Decal
-
PF1278002172 FoamFoam
-
PF1710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
PF1710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF1710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
PF1710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
PF1710000660 Fuse Box Ass'yFuse Box Ass'y
-
PF1710000840 CapCap
-
PF1515176774 Relay, 30 AMPRelay, 30 AMP
-
PF1710001778 RelayRelay
-
PF1278000999 Wire SealWire Seal
-
PF1415128501 SealSeal
-
PF1515177012 Female TerminalFemale Terminal
-
PF2710000992 ClipClip
-
PF2710000897 CoverCover
-
PF2710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
PF2710000888 Housing, 6 CircuitsHousing, 6 Circuits
-
PF2710000889 LockLock
-
PF2710000048 Wire SealWire Seal
-
PF2278000218 Wire SealWire Seal
-
PF2710000918 Female TerminalFemale Terminal
-
PF2710000890 Female TerminalFemale Terminal
-
PG515177215 Female HousingFemale Housing
-
PG515177217 LockLock
-
PR515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
PR710003896 Female TerminalFemale Terminal
-
RD1710000879 Housing, 3 CircuitsHousing, 3 Circuits
-
RD1710000882 CapCap
-
RD1710000881 SealSeal
-
RD1710000877 TerminalTerminal
-
SS1409010300 Female TerminalFemale Terminal
-
SS2409010300 Female TerminalFemale Terminal
