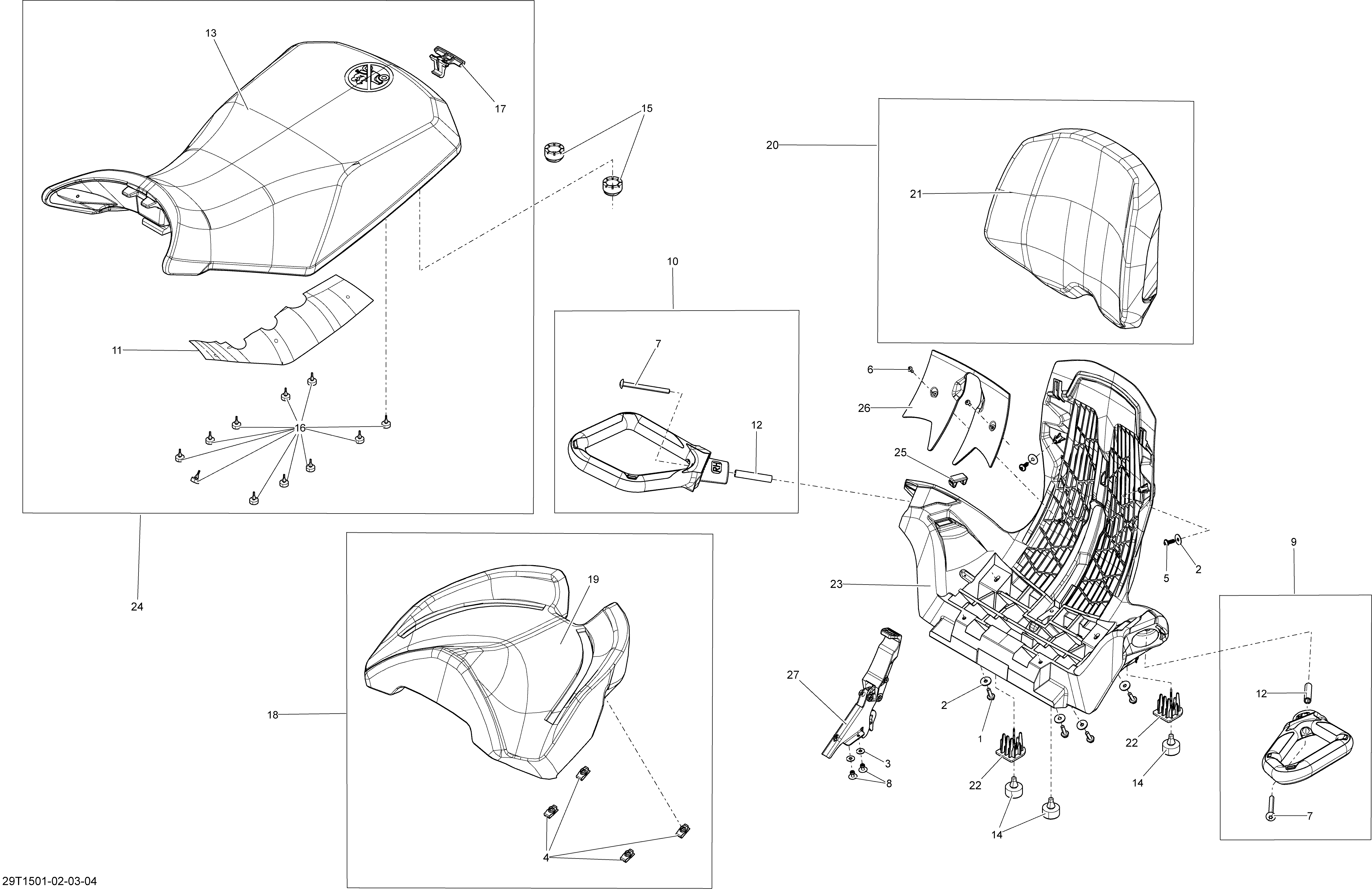

09- Seat _29T1502 для BRP Outlander L MAX 450 EFI - 2015
-
№АртикулНазвание
-
1207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
2224060201 Flat WasherFlat Washer
-
3234051410 Flat Washer M5Flat Washer M5
-
4250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
5250000546 Oval Head Torx Screw K60 X 16Oval Head Torx Screw K60 X 16
-
6250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
7250000617 Torx Screw M8 X 90Torx Screw M8 X 90
-
8293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
9703500806 LH Passenger Seat Handle KitLH Passenger Seat Handle Kit
-
10703500807 RH Passenger Seat Handle KitRH Passenger Seat Handle Kit
-
11705005761 Heat ShieldHeat Shield
-
12705009248 SleeveSleeve
-
13708000724 Black Seat CoverBlack Seat Cover
-
14708000758 Rubber StopperRubber Stopper
-
15708000760 Bumper RubberBumper Rubber
-
16708000759 Rubber StopperRubber Stopper
-
17708000909 LatchLatch
-
18708001287 Rear SeatRear Seat
-
19708001290 Black Seat CoverBlack Seat Cover
-
20708001839 Back RestBack Rest
-
21708001841 Back Rest CoverBack Rest Cover
-
22708001483 Seat SupportSeat Support
-
23708001487 Seat BaseSeat Base
-
24708001536 Seat Ass'ySeat Ass'y
-
25708001511 InsertInsert
-
26708001512 CapCap
-
27708001532 LatchLatch
