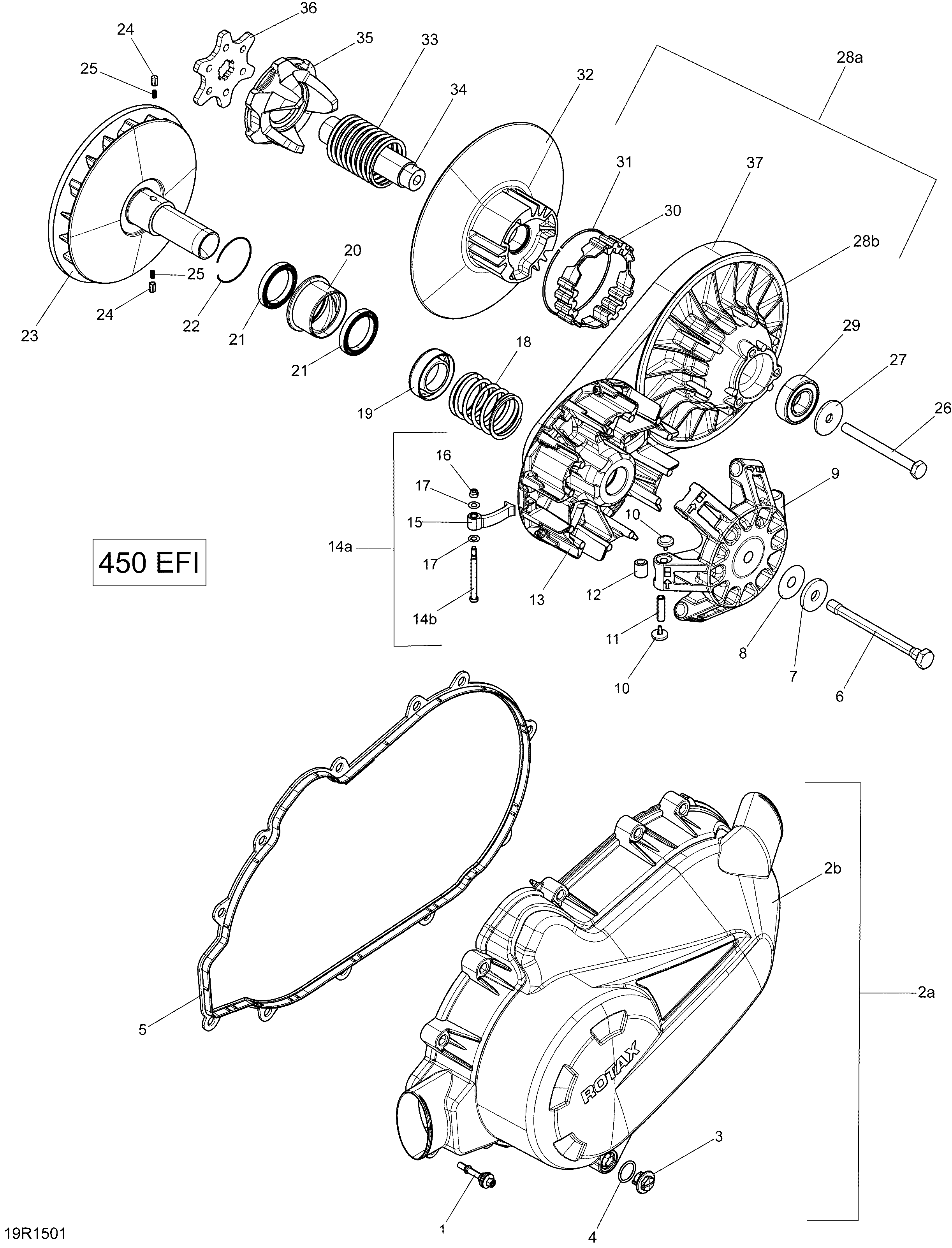

05- Transmission _19R1501 для BRP Outlander L MAX 450 EFI - 2015
-
№АртикулНазвание
-
1420440567 Hex. Distance Screw M6 X 30.5Hex. Distance Screw M6 X 30.5
-
2a420612465 CVT Cover Ass'y. Includes 2a to 4CVT Cover Ass'y. Includes 2a to 4
-
3420441820 CapCap
-
4420250050 O-RingO-Ring
-
5420630292 GasketGasket
-
6420641812 Hex. Screw M12 X 140Hex. Screw M12 X 140
-
7420627760 Spring WasherSpring Washer
-
8420627920 Thrust WasherThrust Washer
-
9420280522 Governor Cup Ass'y. Includes 9 to 12Governor Cup Ass'y. Includes 9 to 12
-
10420281296 Slider Shoe SetSlider Shoe Set
-
11420281296 Slider Shoe SetSlider Shoe Set
-
12417223387 RollerRoller
-
13420280467 Outher HaftOuther Haft
-
14a420248424 Centrifugal Lever Set. Includes 14a to 17Centrifugal Lever Set. Includes 14a to 17
-
18420238166 Compression SpringCompression Spring
-
19420627577 Spring SeatSpring Seat
-
20420257439 ClutchClutch
-
21420632375 Ball BearingBall Bearing
-
22420245951 Retaining RingRetaining Ring
-
23420280247 Inner Half Ass'yInner Half Ass'y
-
24420229577 Spring SleeveSpring Sleeve
-
25420239135 Compression SpringCompression Spring
-
26420441485 Hex. Screw M10 X 110Hex. Screw M10 X 110
-
27420627590 Thrust WasherThrust Washer
-
28a420280178 Outer Half Pulley Ass'y. Includes 28a to 31Outer Half Pulley Ass'y. Includes 28a to 31
-
29420932421 Ball BearingBall Bearing
-
30420660124 Torque GearTorque Gear
-
31420245910 Retaining RingRetaining Ring
-
32420248233 Inner Half Ass'yInner Half Ass'y
-
33420238173 Compression Spring, Driven PulleyCompression Spring, Driven Pulley
-
34420220914 Driven Pulley ShaftDriven Pulley Shaft
-
35420280250 CamCam
-
36420627586 Cam PlateCam Plate
-
37715900024 V-BeltV-Belt
