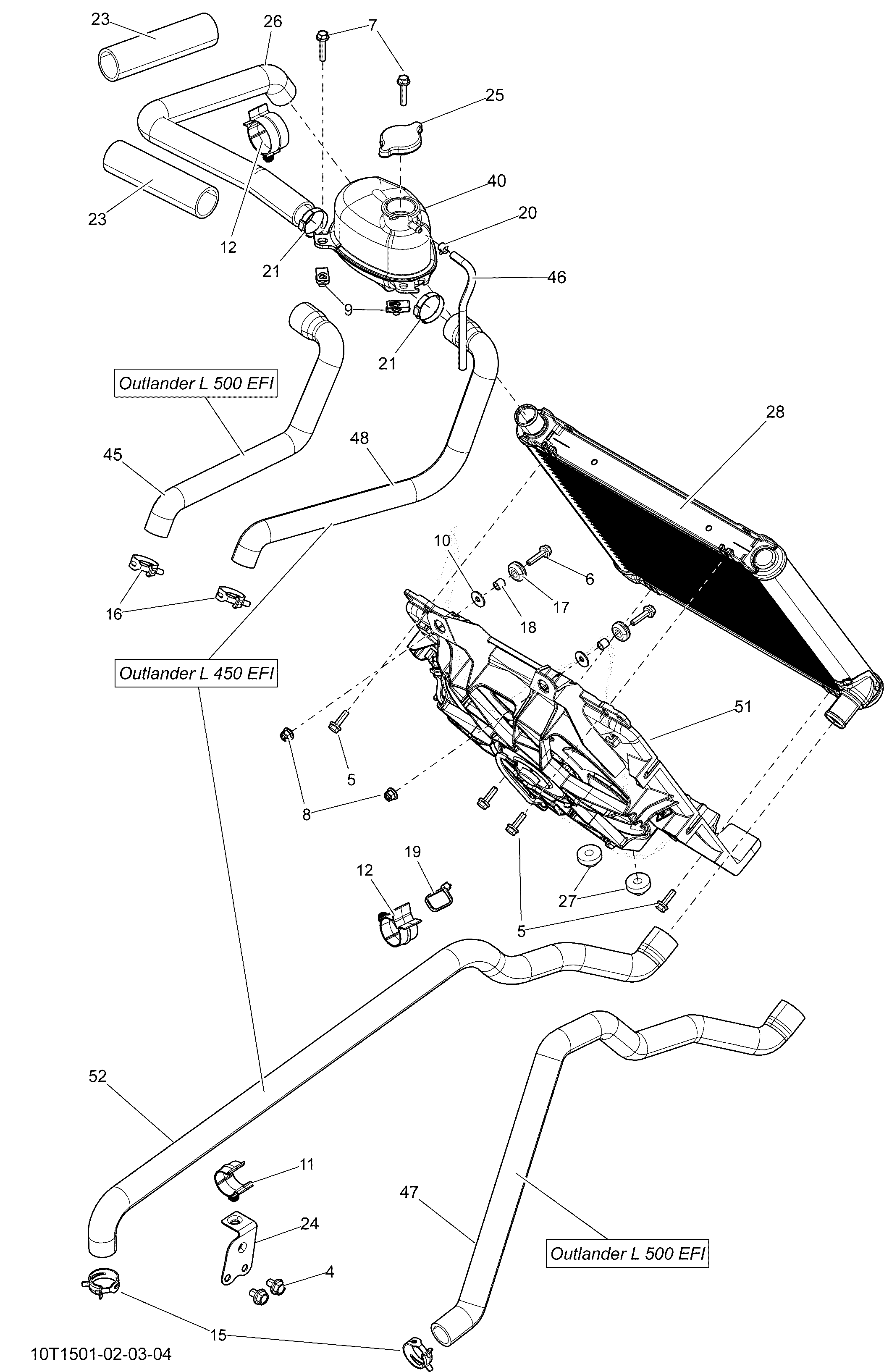

01- Cooling System _10T1502 для BRP Outlander L MAX 450 EFI - 2015
-
№АртикулНазвание
-
4207581244 Hex. Flanged Screw M8 X 12, Scotch GripHex. Flanged Screw M8 X 12, Scotch Grip
-
5207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
7207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
8233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
9250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
10250200082 Flat WasherFlat Washer
-
11275500526 RetainerRetainer
-
12275500590 RetainerRetainer
-
15293650108 Norma Spring ClampNorma Spring Clamp
-
16293650109 Norma Spring ClampNorma Spring Clamp
-
17293720053 GrommetGrommet
-
18293900105 BushingBushing
-
19414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
20414554800 Spring ClampSpring Clamp
-
21509000162 Gear ClampGear Clamp
-
23515176260 Tubing 35mmTubing 35mm
-
24709200206 Hose SupportHose Support
-
25709200207 Pressure CapPressure Cap
-
26709200278 Radiator Inlet HoseRadiator Inlet Hose
-
27709200285 GrommetGrommet
-
28709200286 RadiatorRadiator
-
40709200297 Coolant TankCoolant Tank
-
46415080200 Hose, PolyurethaneHose, Polyurethane
-
48709200471 Coolant HoseCoolant Hose
-
51709200488 Fan Ass'yFan Ass'y
-
52709200525 Coolant HoseCoolant Hose
