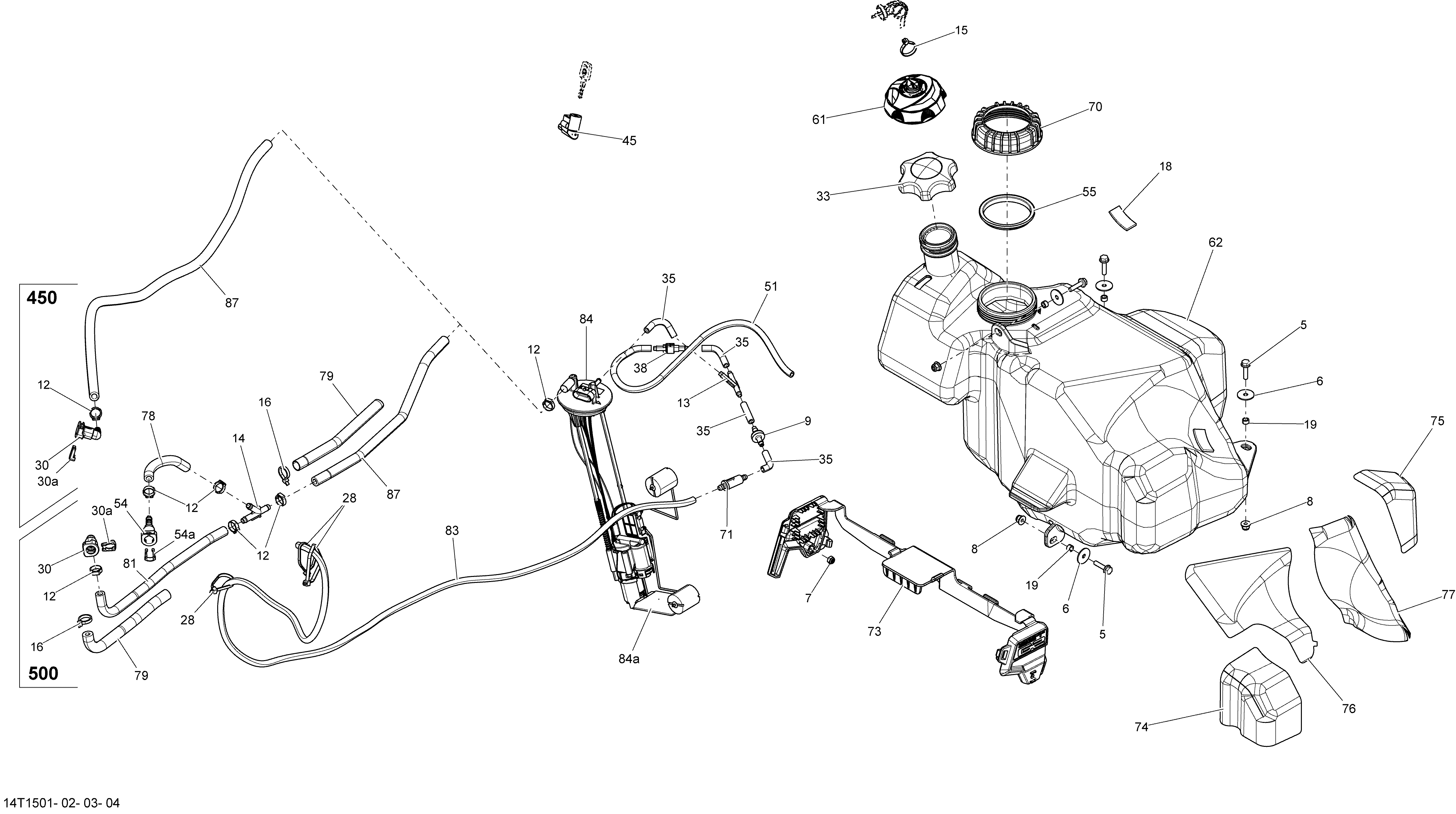

02- Fuel System _14T1501 для BRP Outlander L 450 EFI - 2015
-
№АртикулНазвание
-
5207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
6224060251 WasherWasher
-
7232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9275500398 Check ValveCheck Valve
-
12293650047 Crimp ClampCrimp Clamp
-
13293710059 Y-FittingY-Fitting
-
14293710136 Y-Fitting, 5/16''Y-Fitting, 5/16''
-
15293750001 Tie-Rap 94 mm. Model- EuropeTie-Rap 94 mm. Model- Europe
-
16293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
18293830172 Rubber PadRubber Pad
-
19293900104 BushingBushing
-
28414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
30275500700 Quick Attach 90°Quick Attach 90°
-
30a513033135 Locking ClipLocking Clip
-
33513033025 Fuel Tank Cap. Model- North America, InternationalFuel Tank Cap. Model- North America, International
-
35415080200 Hose, PolyurethaneHose, Polyurethane
-
38513033469 Check ValveCheck Valve
-
45707000666 Lock. Model- EuropeLock. Model- Europe
-
51415080200 Hose, PolyurethaneHose, Polyurethane
-
55709000208 SealSeal
-
61860200387 Locking Cap Tank. Model- EuropeLocking Cap Tank. Model- Europe
-
62709000310 Fuel Tank Ass'yFuel Tank Ass'y
-
70709000328 Fuel Pump Module NutFuel Pump Module Nut
-
71709000330 FilterFilter
-
73709000359 Hose Support Ass'yHose Support Ass'y
-
74709000381 Heat Reflective SheetHeat Reflective Sheet
-
75709000382 Heat Reflective SheetHeat Reflective Sheet
-
76709000387 Heat Reflective SheetHeat Reflective Sheet
-
77709000388 Heat Reflective SheetHeat Reflective Sheet
-
79415080000 Tubing 16 mmTubing 16 mm
-
83415080200 Hose, PolyurethaneHose, Polyurethane
-
84709000461 Fuel PumpFuel Pump
-
84a715900322 Prefilter Fuel Pump KitPrefilter Fuel Pump Kit
-
87709000516 Fuel LineFuel Line
