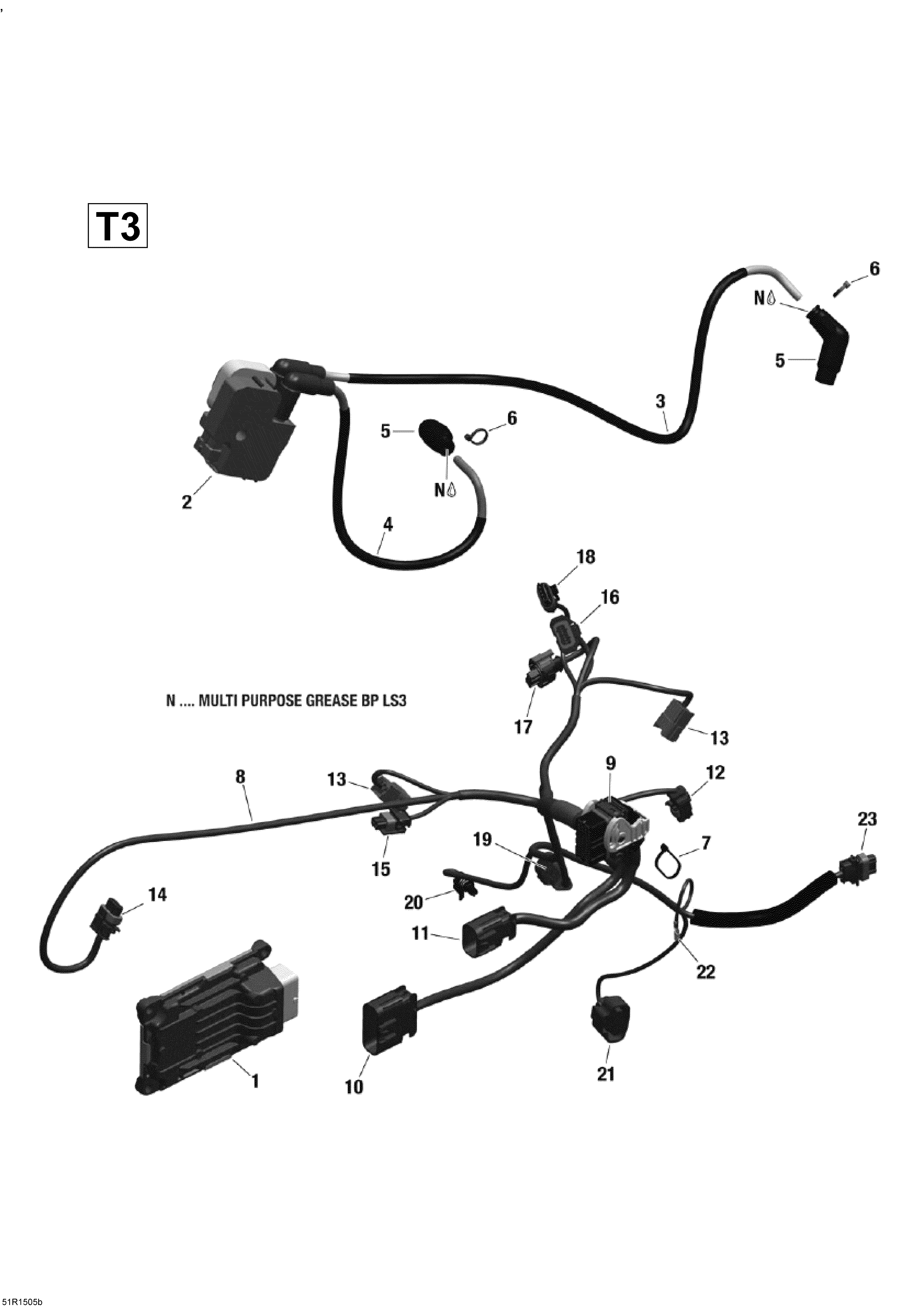

10- Engine Harness And Electronic Module (T3) для BRP Outlander 500 EFI - 2015
-
№АртикулНазвание
-
1420266868 ECM, Engine Control Module 500 T3ECM, Engine Control Module 500 T3
-
2278001546 Ignition CoilIgnition Coil
-
3420665330 Spark Plug Cable (610mm, PTO Side)Spark Plug Cable (610mm, PTO Side)
-
4420664300 Spark Plug Cable (365mm, MAG Side)Spark Plug Cable (365mm, MAG Side)
-
5420265248 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie Rap 142mmTie Rap 142mm
-
7293750001 Tie Rap 94mmTie Rap 94mm
-
8420666570 Wiring Harness. Includes 8 To 23Wiring Harness. Includes 8 To 23
-
10710001227 Connector HIC 1Connector HIC 1
-
11710001927 Connector HIC 2Connector HIC 2
-
12278001005 Connector CTSConnector CTS
-
14278000997 Connector Ignition CoilConnector Ignition Coil
-
15278001005 Connector CPSConnector CPS
-
16278001829 Connector TPSConnector TPS
-
17515176410 Connector MAPTSConnector MAPTS
-
19278002378 Connector VSSConnector VSS
-
20278001012 Connector OPSConnector OPS
-
21710000329 Connector 2X4 ACTConnector 2X4 ACT
-
22278001007 Insulated SheathInsulated Sheath
-
23278000997 Connector GBPSConnector GBPS
