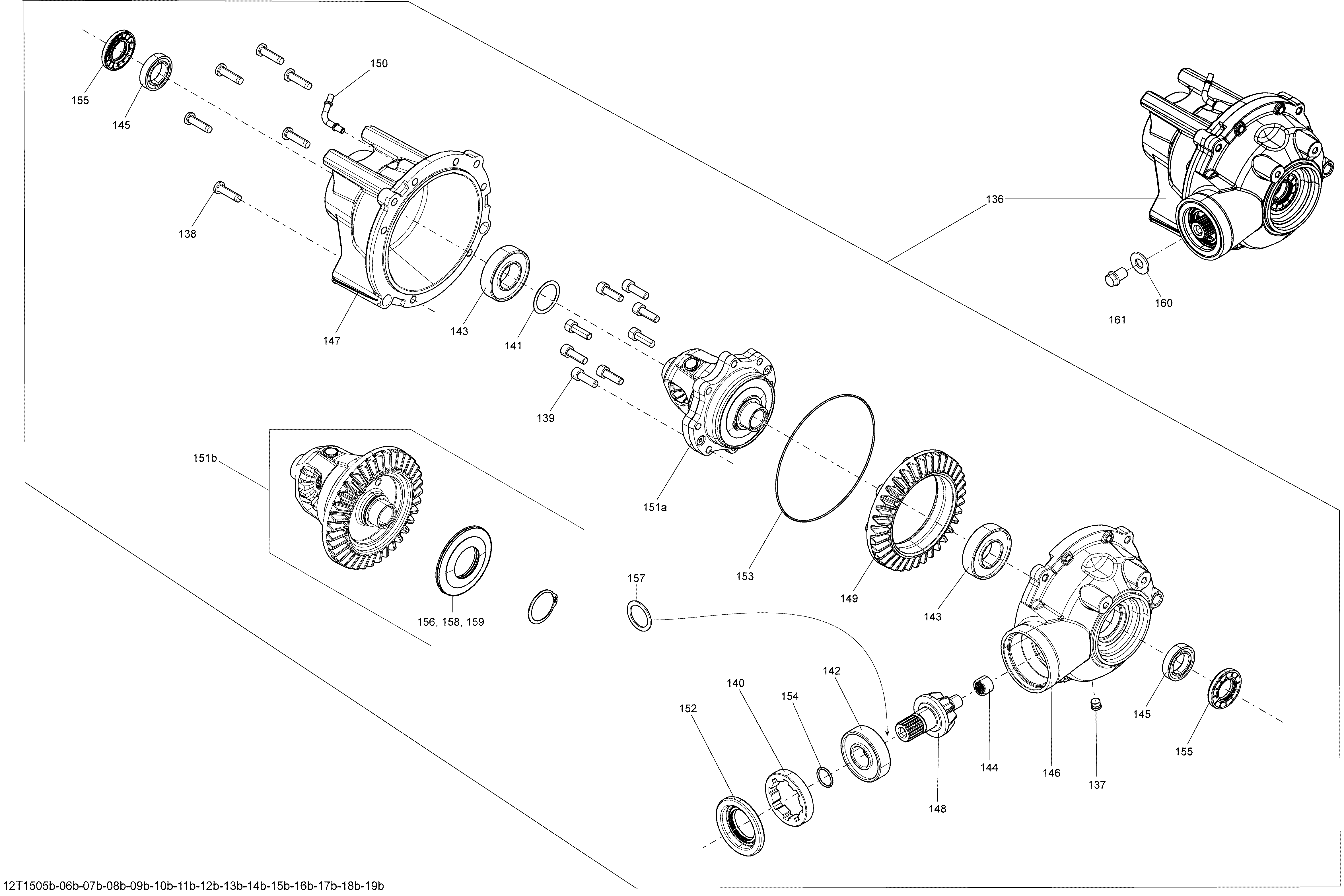

07- Drive System, Front _Differential_12T1505b для BRP Outlander 500 EFI - 2015
-
№АртикулНазвание
-
136705401511 Front Differential Ass'y. Package-DPS, XT, XTP. After May 30, 2014Front Differential Ass'y. Package-DPS, XT, XTP. After May 30, 2014
-
136705401485 Front Differential Ass'y. Package-DPS, XT, XTP. Before May 29, 2014Front Differential Ass'y. Package-DPS, XT, XTP. Before May 29, 2014
-
137705501885 Drain Plug. After May 30, 2015Drain Plug. After May 30, 2015
-
137705500894 Drain Plug. Before May 29, 2014Drain Plug. Before May 29, 2014
-
138705401601 Screw. After May 30, 2016Screw. After May 30, 2016
-
138705500892 Screw. Before May 29, 2014Screw. Before May 29, 2014
-
139705401602 Screw. After May 30, 2017Screw. After May 30, 2017
-
140705401603 Nut. After May 30, 2018Nut. After May 30, 2018
-
140705400661 Nut. Before May 29, 2014Nut. Before May 29, 2014
-
141705401604 Shim. After May 30, 2019Shim. After May 30, 2019
-
142705401605 Ball Bearing. After May 30, 2020Ball Bearing. After May 30, 2020
-
142705500260 Ball Bearing. Before May 29, 2014Ball Bearing. Before May 29, 2014
-
143705401606 Ball Bearing. After May 30, 2021Ball Bearing. After May 30, 2021
-
143705500259 Ball Bearing. Before May 29, 2014Ball Bearing. Before May 29, 2014
-
144705401607 Needle Bearing. After May 30, 2022Needle Bearing. After May 30, 2022
-
144705500261 Needle Bearing. Before May 29, 2014Needle Bearing. Before May 29, 2014
-
145705401608 Ball Bearing. After May 30, 2023Ball Bearing. After May 30, 2023
-
145293350044 Ball Bearing. Before May 29, 2014Ball Bearing. Before May 29, 2014
-
146705401609 Front Cover. After May 30, 2024Front Cover. After May 30, 2024
-
146705400761 Front Cover. Before May 29, 2014Front Cover. Before May 29, 2014
-
147705401610 Front Cover. After May 30, 2025Front Cover. After May 30, 2025
-
147705400762 Front Cover. Before May 29, 2014Front Cover. Before May 29, 2014
-
148705401611 Pinion 10 Teeth. After May 30, 2026Pinion 10 Teeth. After May 30, 2026
-
148705501588 10 Teeth Pinion. Before May 29, 201410 Teeth Pinion. Before May 29, 2014
-
149705401612 Gear 36 Teeth. After May 30, 2027Gear 36 Teeth. After May 30, 2027
-
150705401613 Vent Valve. After May 30, 2028Vent Valve. After May 30, 2028
-
150705500893 Vent Valve. Before May 29, 2014Vent Valve. Before May 29, 2014
-
151a705401506 Differential. Package-DPS, XT, XTP. After May 30, 2029Differential. Package-DPS, XT, XTP. After May 30, 2029
-
151b705400822 Differential. Package-DPS, XT, XTP. Before May 29, 2014Differential. Package-DPS, XT, XTP. Before May 29, 2014
-
152705401615 Oil Seal. After May 30, 2030Oil Seal. After May 30, 2030
-
152705401481 Oil Seal. Before May 29, 2014Oil Seal. Before May 29, 2014
-
153705401616 Seal. After May 30, 2031Seal. After May 30, 2031
-
153705500265 Seal. Before May 29, 2014Seal. Before May 29, 2014
-
154705401617 O'Ring. After May 30, 2032O'Ring. After May 30, 2032
-
154705500267 O-Ring. Before May 29, 2014O-Ring. Before May 29, 2014
-
155705401618 Gasket. After May 30, 2033Gasket. After May 30, 2033
-
155705401486 Oil Seal. Before May 29, 2014Oil Seal. Before May 29, 2014
-
156703500049 Pinion Shim Kit. Before May 29, 2014Pinion Shim Kit. Before May 29, 2014
-
157705501162 Pinion Gear Shim. Before May 29, 2014Pinion Gear Shim. Before May 29, 2014
-
158703500288 Differential Shim Spool Kit. Before May 29, 2014Differential Shim Spool Kit. Before May 29, 2014
-
159703500050 Differential Shim Spool Kit. Before May 29, 2014Differential Shim Spool Kit. Before May 29, 2014
-
160250200014 Flat Washer M10. After May 30, 2014Flat Washer M10. After May 30, 2014
-
160250200102 Flat Washer M12. Before May 29, 2014Flat Washer M12. Before May 29, 2014
-
161250000615 Hex Flanged Screwv M10 X 16. After May 30, 2014Hex Flanged Screwv M10 X 16. After May 30, 2014
-
161250000378 Hex Flanged Screw M12 X 16, Scotch Grip. Before May 29, 2014Hex Flanged Screw M12 X 16, Scotch Grip. Before May 29, 2014
