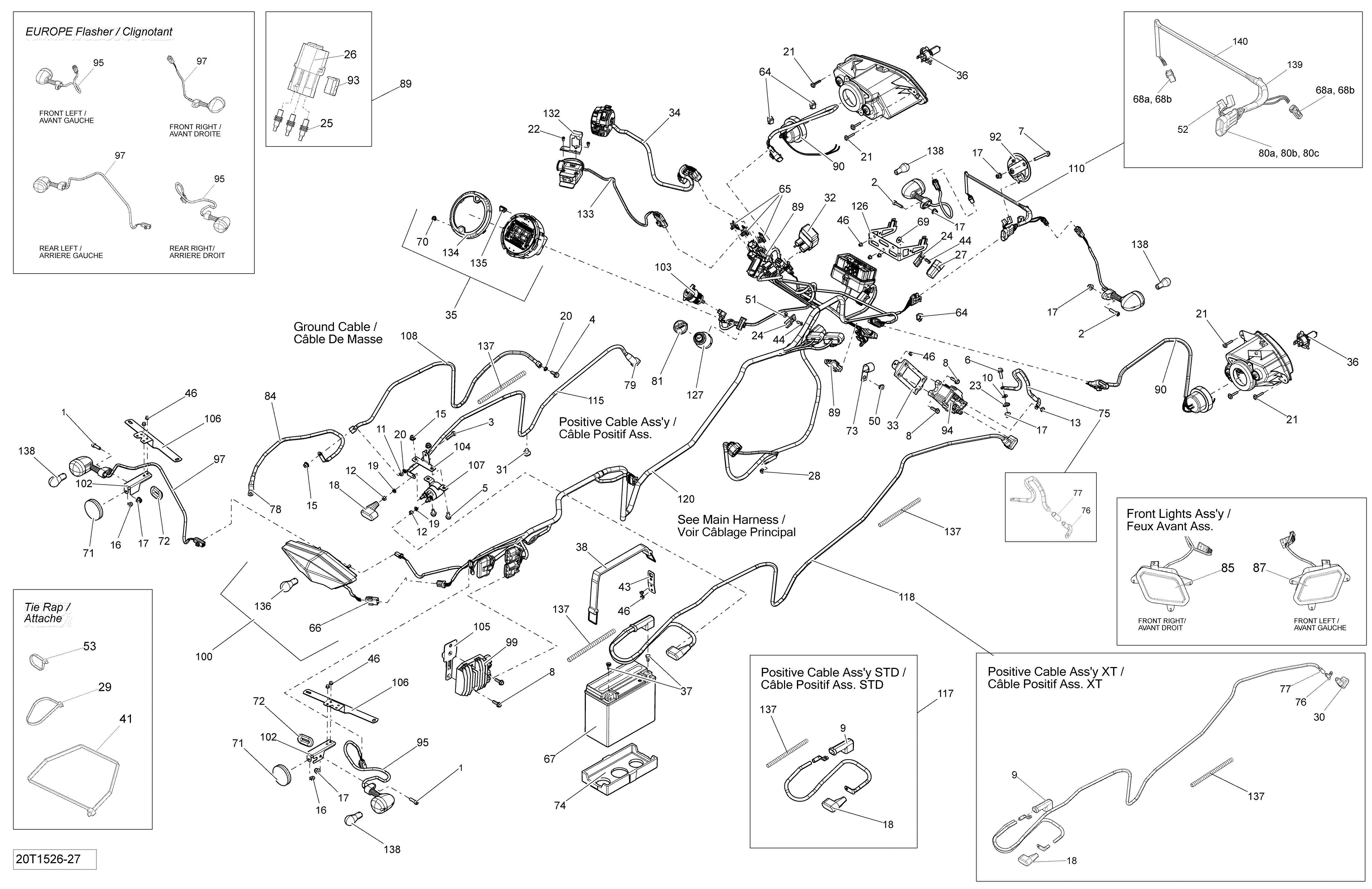

10- Electrical System _20T1526 для BRP Outlander 400 EFI, STD(International only) - 2015

  • №
    Артикул
    Название
  • 3
    207162544 Hex. Screw M6 X 25
    Hex. Screw M6 X 25
  • 4
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 5
    207661244 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 8
    210262080 Hex. Forming Screw M6 X 20
    Hex. Forming Screw M6 X 20
  • 9
    710001829 Protector Cap. STD
    Protector Cap. STD
  • 11
    232061414 Hex. Nut M6
    Hex. Nut M6
  • 12
    232061600 Hex. Nut M6
    Hex. Nut M6
  • 13
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 15
    233061414 Hex. Flanged Nut M6
    Hex. Flanged Nut M6
  • 17
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 18
    710001817 Protector Cap
    Protector Cap
  • 19
    234161601 Lock Washer Helical M6
    Lock Washer Helical M6
  • 20
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 21
    250000101 Plastite Screw Type K-40, M4 X 25
    Plastite Screw Type K-40, M4 X 25
  • 24
    270000141 Clip
    Clip
  • 25
    278000216 Wire Seal. STD
    Wire Seal. STD
  • 26
    278000281 Female Terminal Housing, 3 Circuits. STD
    Female Terminal Housing, 3 Circuits. STD
  • 27
    278002704 Diagnostic Connector
    Diagnostic Connector
  • 28
    293650100 Oetiker Clamp
    Oetiker Clamp
  • 29
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 31
    293730040 Mount Dart
    Mount Dart
  • 34
    710003063 Multi-Fonction Handle. International
    Multi-Fonction Handle. International
  • 35
    710003100 Speedometer Ass'y
    Speedometer Ass'y
  • 36
    710000871 Bulb, 12V 35/35W
    Bulb, 12V 35/35W
  • 37
    295500849 Battery Fastener Kit
    Battery Fastener Kit
  • 38
    293850097 Retainer Strap
    Retainer Strap
  • 43
    293850030 Strap Clip
    Strap Clip
  • 44
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 46
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 50
    390406500 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 51
    250200081 Flat Washer
    Flat Washer
  • 53
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 64
    414227300 Clip
    Clip
  • 65
    515175283 Housing Support
    Housing Support
  • 66
    515175494 Male Housing, 3 Circuits
    Male Housing, 3 Circuits
  • 67
    410301203 Battery Ass'y, 18 Amperes
    Battery Ass'y, 18 Amperes
  • 69
    517124300 Washer
    Washer
  • 70
    704901270 BRP Logo, 13 mm
    BRP Logo, 13 mm
  • 73
    705600311 Clamp
    Clamp
  • 74
    710000279 Insulator Pad
    Insulator Pad
  • 77
    710000483 Shrink Tubing
    Shrink Tubing
  • 78
    710000518 Open Barrel
    Open Barrel
  • 79
    710000526 Protector Cap
    Protector Cap
  • 81
    710000817 Black-Electronic Key. International
    Black-Electronic Key. International
  • 84
    710000830 Ground Cable Ass'y, Battery/Frame
    Ground Cable Ass'y, Battery/Frame
  • 85
    710001496 RH Headlamp Ass'y. International
    RH Headlamp Ass'y. International
  • 87
    710001497 LH Headlamp Ass'y. International
    LH Headlamp Ass'y. International
  • 89
    710000917 Connector Ass'y. STD
    Connector Ass'y. STD
  • 90
    710000828 Light Harness. International
    Light Harness. International
  • 93
    710000992 Clip. STD
    Clip. STD
  • 99
    710001103 Voltage Regulator
    Voltage Regulator
  • 100
    710001203 Tail Light Housing Ass'y. International
    Tail Light Housing Ass'y. International
  • 103
    710001248 Outlet DC
    Outlet DC
  • 104
    710001260 Solenoid Support
    Solenoid Support
  • 105
    710001262 Rectifier Support
    Rectifier Support
  • 107
    710001364 Starter Relay
    Starter Relay
  • 108
    710001443 Ground Cable
    Ground Cable
  • 115
    710001820 Positive Cable Ass'y
    Positive Cable Ass'y
  • 117
    710001822 Positive Cable Ass'y. STD
    Positive Cable Ass'y. STD
  • 120
    710002113 Main Harness Ass'y. International
    Main Harness Ass'y. International
  • 126
    710002176 Fuse Support
    Fuse Support
  • 127
    710002324 Ignition Switch
    Ignition Switch
  • 134
    710001416 Trim Ring
    Trim Ring
  • 135
    710001473 Button
    Button
  • 136
    520000758 Bulb
    Bulb
  • 137
    710000497 Protector Tube, 9 mm. STD
    Protector Tube, 9 mm. STD
  • 137
    710000497 Protector Tube, 9 mm
    Protector Tube, 9 mm
