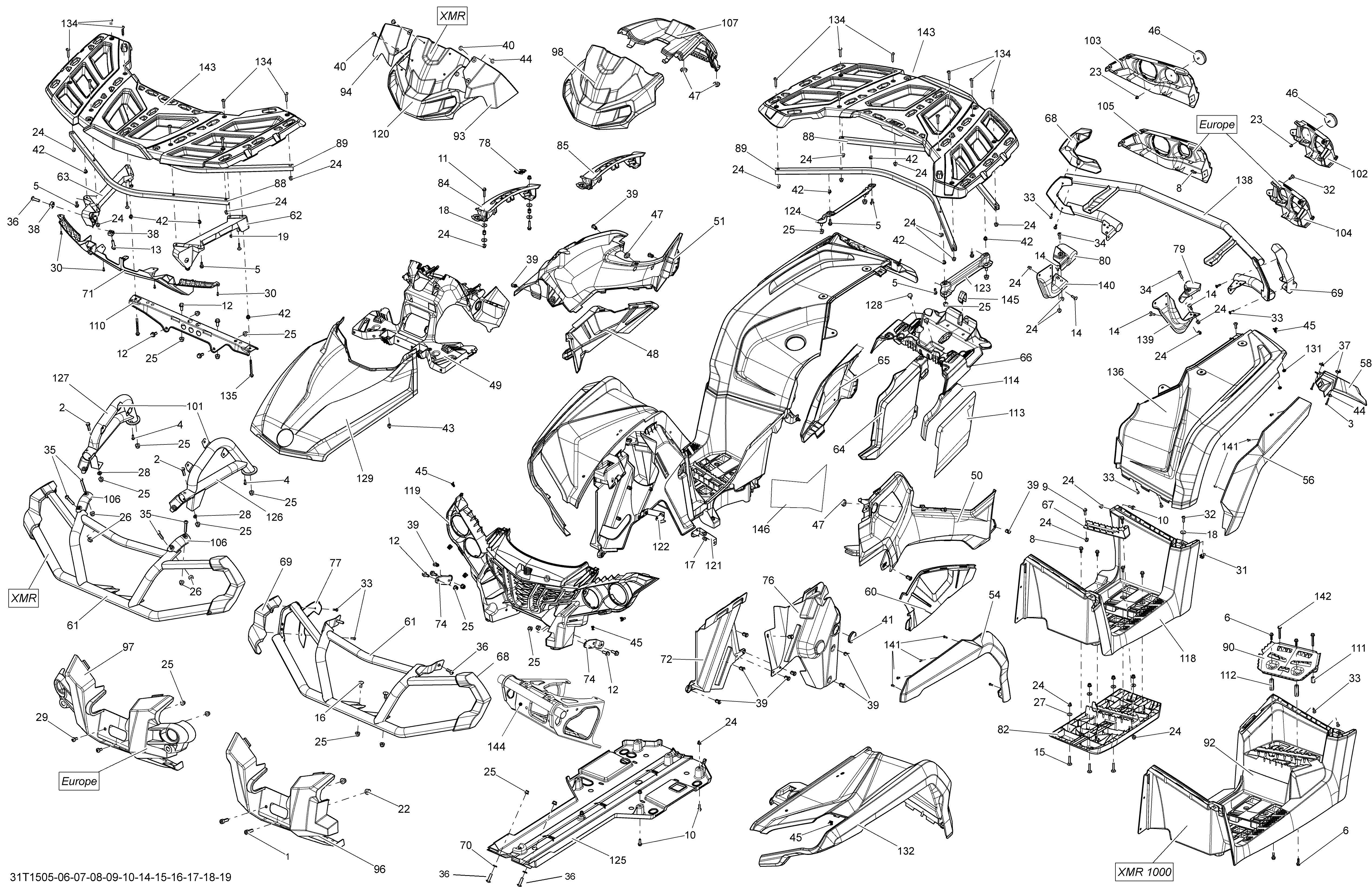

09- Body And Accessories _31T1510 для BRP Outlander 1000 EFI - 2015

  • №
    Артикул
    Название
  • 1
    205003044 Socket Screw M10 x 30
    Socket Screw M10 x 30
  • 4
    250000101 Plastite Screw Type K-40, M4 X 25
    Plastite Screw Type K-40, M4 X 25
  • 5
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 8
    207661684 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 10
    207662084 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 11
    207663034 Hex. Flanged Screw M6 X 30
    Hex. Flanged Screw M6 X 30
  • 12
    207682044 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 13
    207683534 Hex. Flanged Screw M8 X 35
    Hex. Flanged Screw M8 X 35
  • 14
    207762044 Carriage Bolt M6 X 20
    Carriage Bolt M6 X 20
  • 15
    207763584 Carriage Bolt M6 X 35
    Carriage Bolt M6 X 35
  • 16
    207782044 Carriage Bolt, M8 X 20
    Carriage Bolt, M8 X 20
  • 18
    224061201 Flat Washer
    Flat Washer
  • 19
    232561600 Hex. Elastic Stop Nut M6
    Hex. Elastic Stop Nut M6
  • 22
    233201434 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 23
    233251434 Flanged Elastic Nut M5
    Flanged Elastic Nut M5
  • 24
    233261434 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 25
    233281434 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 27
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 29
    236282084 Hex. Screw M8 X 20
    Hex. Screw M8 X 20
  • 30
    241140060 Screw K40 X 10
    Screw K40 X 10
  • 31
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 32
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 33
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 34
    250000371 Torx Screw M6 X 30 Stainless
    Torx Screw M6 X 30 Stainless
  • 36
    250000544 Torx Screw M8 X 30
    Torx Screw M8 X 30
  • 38
    269501943 Elastic Nut Housing M8
    Elastic Nut Housing M8
  • 39
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 41
    293250242 Rubber Cover
    Rubber Cover
  • 42
    293450274 Insert
    Insert
  • 43
    293830005 Rubber Bumper
    Rubber Bumper
  • 45
    517302785 Clip
    Clip
  • 46
    705002408 Red Reflector
    Red Reflector
  • 47
    705003264 Grommet
    Grommet
  • 48
    705003444 Engine Cover
    Engine Cover
  • 49
    715001552 Dash Support Kit. Model North America
    Dash Support Kit. Model North America
  • 49
    715002245 Dash Support Kit. Model Europe, International
    Dash Support Kit. Model Europe, International
  • 50
    705003446 Yellow LH Lateral Panel. Model-Yellow
    Yellow LH Lateral Panel. Model-Yellow
  • 50
    705005237 Red LH Pannel. Model-Viper Red
    Red LH Pannel. Model-Viper Red
  • 50
    705005238 Camo LH Panel. Model-Camo
    Camo LH Panel. Model-Camo
  • 50
    705006045 White LH Lateral Panel. Model-White
    White LH Lateral Panel. Model-White
  • 50
    705008578 Orange Crush LH Lateral Panel. Package-XTP Black
    Orange Crush LH Lateral Panel. Package-XTP Black
  • 50
    705007530 Quarry Gray LH Lateral Panel. Model-Light Grey
    Quarry Gray LH Lateral Panel. Model-Light Grey
  • 50
    705008588 Brush Alum. LH Lateral Panel. Model-Brushed Aluminium
    Brush Alum. LH Lateral Panel. Model-Brushed Aluminium
  • 51
    705008579 Orange Crush RH Lateral Panel. Package-XTP Black
    Orange Crush RH Lateral Panel. Package-XTP Black
  • 51
    705009019 Yellow RH Lateral Panel. Model-Yellow
    Yellow RH Lateral Panel. Model-Yellow
  • 51
    705009115 Viper Red RH Lateral Panel. Model-Viper Red
    Viper Red RH Lateral Panel. Model-Viper Red
  • 51
    705009118 CAMO RH Lateral Panel. Model-Camo
    CAMO RH Lateral Panel. Model-Camo
  • 51
    705009119 White RH Lateral Panel. Model-White
    White RH Lateral Panel. Model-White
  • 51
    705009116 Quarry Gray RH Lateral Panel. Model-Light Grey
    Quarry Gray RH Lateral Panel. Model-Light Grey
  • 51
    705008589 Brush Alum. RH Lateral Panel. Model-Brushed Aluminium
    Brush Alum. RH Lateral Panel. Model-Brushed Aluminium
  • 60
    705004147 LH Extension Pannel
    LH Extension Pannel
  • 61
    705005018 Front Bumper. Model-XT, XTP
    Front Bumper. Model-XT, XTP
  • 62
    705006700 LH Support Ass'y
    LH Support Ass'y
  • 63
    705006701 RH Support Ass'y
    RH Support Ass'y
  • 64
    715001897 LH Extension Panel
    LH Extension Panel
  • 65
    705004348 RH Extension Panel
    RH Extension Panel
  • 68
    705004409 Cap (Front LH) (Rear RH). Model-XT, XTP
    Cap (Front LH) (Rear RH). Model-XT, XTP
  • 69
    705004410 Cap (Front RH) (Rear LH). Model-XT, XTP
    Cap (Front RH) (Rear LH). Model-XT, XTP
  • 70
    705004497 Ring
    Ring
  • 71
    705004523 Lugage Rack Moulding
    Lugage Rack Moulding
  • 72
    705004558 RH Inner Fender
    RH Inner Fender
  • 72
    705004557 LH Inner Fender
    LH Inner Fender
  • 74
    705004565 Lower Fender Support
    Lower Fender Support
  • 76
    705004587 RH Inner Fender
    RH Inner Fender
  • 76
    705004588 LH Inner Fender
    LH Inner Fender
  • 77
    705004987 Bracket Cover. Model-XT, XTP
    Bracket Cover. Model-XT, XTP
  • 78
    705005003 Shiftgate Trim. Model-Europe
    Shiftgate Trim. Model-Europe
  • 79
    705005094 LH Bracket. Model-XT, XTP
    LH Bracket. Model-XT, XTP
  • 80
    705005095 RH Bracket. Model-XT, XTP
    RH Bracket. Model-XT, XTP
  • 82
    705005254 LH. Footboard
    LH. Footboard
  • 82
    705005253 RH. Footboard
    RH. Footboard
  • 84
    705005258 Indicator
    Indicator
  • 85
    705005259 Indicator. Model-Europe
    Indicator. Model-Europe
  • 88
    705005469 Tube
    Tube
  • 89
    705005470 Tube
    Tube
  • 96
    705006299 Front Guard Plate
    Front Guard Plate
  • 97
    705006300 Front Guard Plate. Model-Europe
    Front Guard Plate. Model-Europe
  • 98
    705006321 Gage Support. Model-DPS, XT
    Gage Support. Model-DPS, XT
  • 98
    705006322 Gage Support. Model-XTP
    Gage Support. Model-XTP
  • 102
    705006643 LH Rear Facia. Model-Nord America, International
    LH Rear Facia. Model-Nord America, International
  • 103
    705006650 RH Rear Facia. Model-Nord America, International
    RH Rear Facia. Model-Nord America, International
  • 104
    705006651 LH Rear Facia. Model-Europe
    LH Rear Facia. Model-Europe
  • 105
    705006652 RH Rear Facia. Model-Europe
    RH Rear Facia. Model-Europe
  • 107
    715001765 Dash Kit
    Dash Kit
  • 110
    705006812 Cargo Rack Center Support
    Cargo Rack Center Support
  • 118
    705007040 LH Footrest
    LH Footrest
  • 118
    705007039 RH Footrest
    RH Footrest
  • 119
    705007041 Front Facia
    Front Facia
  • 123
    705007277 LH Support
    LH Support
  • 124
    705007278 RH Support
    RH Support
  • 125
    715002374 Protective Plate Kit
    Protective Plate Kit
  • 129
    715001541 Yellow Hood Kit. Model-Yellow North America
    Yellow Hood Kit. Model-Yellow North America
  • 129
    715001543 Red Hood Kit. Model-Viper Red North America
    Red Hood Kit. Model-Viper Red North America
  • 129
    715001547 Camo Hood Kit. Model-Camo North America
    Camo Hood Kit. Model-Camo North America
  • 129
    715001845 White Hood Kit. Model-White North America
    White Hood Kit. Model-White North America
  • 129
    715002234 Yellow Hood Kit. Model-Yellow International
    Yellow Hood Kit. Model-Yellow International
  • 129
    715002234 Yellow Hood Kit. Model-Yellow Europe
    Yellow Hood Kit. Model-Yellow Europe
  • 129
    715002237 Grey Hood Kit. Model-Light Grey North America
    Grey Hood Kit. Model-Light Grey North America
  • 129
    715002600 Orange Hood Kit. Package-XTP North America
    Orange Hood Kit. Package-XTP North America
  • 129
    715002602 Orange Hood Kit. Package-XTP International
    Orange Hood Kit. Package-XTP International
  • 129
    715002602 Orange Hood Kit. Package-XTP Europe
    Orange Hood Kit. Package-XTP Europe
  • 129
    715002237 Grey Hood Kit. Model-Light Grey North America
    Grey Hood Kit. Model-Light Grey North America
  • 129
    715002610 Brushed Aluminium Hood Kit. Model-Brushed Aluminium North America
    Brushed Aluminium Hood Kit. Model-Brushed Aluminium North America
  • 129
    715002612 Brushed Alumnium Hood Kit. Model-Brushed Aluminium Europe
    Brushed Alumnium Hood Kit. Model-Brushed Aluminium Europe
  • 129
    715002612 Brushed Alumnium Hood Kit. Model-Brushed Aluminium International
    Brushed Alumnium Hood Kit. Model-Brushed Aluminium International
  • 131
    732610072 Push Nut
    Push Nut
  • 132
    715002180 Yellow LH Front Fender Kit. Model-Yellow North America
    Yellow LH Front Fender Kit. Model-Yellow North America
  • 132
    715002181 Black LH Front Fender Kit. Package-XTP North America
    Black LH Front Fender Kit. Package-XTP North America
  • 132
    715002182 Red LH Front Fender Kit. Model-Viper Red North America
    Red LH Front Fender Kit. Model-Viper Red North America
  • 132
    715002183 Camo LH Front Fender Kit. Model-Camo North America
    Camo LH Front Fender Kit. Model-Camo North America
  • 132
    715002184 Grey LH Front Fender Kit. Model-Light Grey North America
    Grey LH Front Fender Kit. Model-Light Grey North America
  • 132
    715002199 Yellow LH Front Fender Kit. Model-Yellow Europe
    Yellow LH Front Fender Kit. Model-Yellow Europe
  • 132
    715002199 Yellow LH Front Fender Kit. Model-Yellow International
    Yellow LH Front Fender Kit. Model-Yellow International
  • 132
    715002201 Black LH Front Fender Kit. Package-XTP Europe
    Black LH Front Fender Kit. Package-XTP Europe
  • 132
    715002201 Black LH Front Fender Kit. Package-XTP International
    Black LH Front Fender Kit. Package-XTP International
  • 132
    715002257 White LH Front Fender Kit. Model-White North America
    White LH Front Fender Kit. Model-White North America
  • 132
    715002184 Grey LH Front Fender Kit. Model-Light Grey North America
    Grey LH Front Fender Kit. Model-Light Grey North America
  • 132
    715001510 Yellow RH Front Fender Kit. Model-Yellow North America
    Yellow RH Front Fender Kit. Model-Yellow North America
  • 132
    715001512 Red RH Front Fender Kit. Model-Viper Red North America
    Red RH Front Fender Kit. Model-Viper Red North America
  • 132
    715001516 Camo RH Front Fender Kit. Model-Camo North America
    Camo RH Front Fender Kit. Model-Camo North America
  • 132
    715001757 Black RH Front Fender Kit. Package-XTP North America
    Black RH Front Fender Kit. Package-XTP North America
  • 132
    715002207 Black RH Front Fender Kit. Package-XTP Europe
    Black RH Front Fender Kit. Package-XTP Europe
  • 132
    715002207 Black RH Front Fender Kit. Package-XTP International
    Black RH Front Fender Kit. Package-XTP International
  • 132
    715002208 Yellow RH Front Fender Kit. Model-Yellow Europe
    Yellow RH Front Fender Kit. Model-Yellow Europe
  • 132
    715002208 Yellow RH Front Fender Kit. Model-Yellow International
    Yellow RH Front Fender Kit. Model-Yellow International
  • 132
    715002209 Grey RH Front Fender Kit. Model-Light Grey North America
    Grey RH Front Fender Kit. Model-Light Grey North America
  • 132
    715002603 White RH Front Fender Kit. Model-White North America
    White RH Front Fender Kit. Model-White North America
  • 132
    715002209 Grey RH Front Fender Kit. Model-Light Grey North America
    Grey RH Front Fender Kit. Model-Light Grey North America
  • 132
    715002586 Brushed Aluminium LH Front Fender Kit. Model-Brushed Aluminium North America
    Brushed Aluminium LH Front Fender Kit. Model-Brushed Aluminium North America
  • 132
    715002590 Brushed Aluminium RH Front Fender Kit. Model-Brushed Aluminium North America
    Brushed Aluminium RH Front Fender Kit. Model-Brushed Aluminium North America
  • 132
    715002588 Brushed Aluminium LH Front Fender Kit. Model-Brushed Aluminium Europe
    Brushed Aluminium LH Front Fender Kit. Model-Brushed Aluminium Europe
  • 132
    715002592 Brushed Aluminium RH Front Fender Kit. Model-Brushed Aluminium Europe
    Brushed Aluminium RH Front Fender Kit. Model-Brushed Aluminium Europe
  • 132
    715002588 Brushed Aluminium LH Front Fender Kit. Model-Brushed Aluminium International
    Brushed Aluminium LH Front Fender Kit. Model-Brushed Aluminium International
  • 132
    715002592 Brushed Aluminium RH Front Fender Kit. Model-Brushed Aluminium International
    Brushed Aluminium RH Front Fender Kit. Model-Brushed Aluminium International
  • 134
    250000646 Torx Screw M6 X 35
    Torx Screw M6 X 35
  • 135
    207567044 Hex. Flanged Screw M6x70, Scotch Grip
    Hex. Flanged Screw M6x70, Scotch Grip
  • 136
    715001858 Yellow LH Rear Fender Kit. Model-Yellow North America
    Yellow LH Rear Fender Kit. Model-Yellow North America
  • 136
    715001862 Camo LH Rear Fender Kit. Model-Camo North America
    Camo LH Rear Fender Kit. Model-Camo North America
  • 136
    715001864 Red LH Rear Fender Kit. Model-Viper Red North America
    Red LH Rear Fender Kit. Model-Viper Red North America
  • 136
    715001875 Black LH Rear Fender Kit. Package-XTP North America
    Black LH Rear Fender Kit. Package-XTP North America
  • 136
    715002212 Yellow LH Rear Fender Kit. Model-Yellow Europe
    Yellow LH Rear Fender Kit. Model-Yellow Europe
  • 136
    715002221 Black LH Rear Fender Kit. Package-XTP Europe
    Black LH Rear Fender Kit. Package-XTP Europe
  • 136
    715002225 Grey LH Rear Fender Kit. Model-Light Grey North America
    Grey LH Rear Fender Kit. Model-Light Grey North America
  • 136
    715002279 Yellow LH Rear Fender Kit. Model-Yellow International
    Yellow LH Rear Fender Kit. Model-Yellow International
  • 136
    715002281 Black LH Rear Fender Kit. Package-XTP International
    Black LH Rear Fender Kit. Package-XTP International
  • 136
    715002605 White LH Rear Fender Kit. Model-White North America
    White LH Rear Fender Kit. Model-White North America
  • 136
    715002225 Grey LH Rear Fender Kit. Model-Light Grey North America
    Grey LH Rear Fender Kit. Model-Light Grey North America
  • 136
    715001811 Camo RH Rear Fender Kit. Model-Camo North America
    Camo RH Rear Fender Kit. Model-Camo North America
  • 136
    715001820 Yellow RH Rear Fender Kit. Model-Yellow North America
    Yellow RH Rear Fender Kit. Model-Yellow North America
  • 136
    715001836 Black RH Rear Fender Kit. Package-XTP North America
    Black RH Rear Fender Kit. Package-XTP North America
  • 136
    715002229 Yellow RH Rear Fender Kit. Model-Yellow Europe
    Yellow RH Rear Fender Kit. Model-Yellow Europe
  • 136
    715002229 Yellow RH Rear Fender Kit. Model-Yellow International
    Yellow RH Rear Fender Kit. Model-Yellow International
  • 136
    715002230 Black RH Rear Fender Kit. Package-XTP International
    Black RH Rear Fender Kit. Package-XTP International
  • 136
    715002230 Black RH Rear Fender Kit. Package-XTP Europe
    Black RH Rear Fender Kit. Package-XTP Europe
  • 136
    715002232 Grey RH Rear Fender Kit. Model-Light Grey North America
    Grey RH Rear Fender Kit. Model-Light Grey North America
  • 136
    715002607 White RH Rear Fender Kit. Model-White North America
    White RH Rear Fender Kit. Model-White North America
  • 136
    715002232 Grey RH Rear Fender Kit. Model-Light Grey North America
    Grey RH Rear Fender Kit. Model-Light Grey North America
  • 136
    715002593 Brushed Aluminium LH Rear Fender Kit. Model-Brushed Aluminium North America
    Brushed Aluminium LH Rear Fender Kit. Model-Brushed Aluminium North America
  • 136
    715002595 Brushed Aluminium LH Rear Fender Kit. Model-Brushed Aluminium International
    Brushed Aluminium LH Rear Fender Kit. Model-Brushed Aluminium International
  • 136
    715002596 Brushed Aluminium LH Rear Fender Kit. Model-Brushed Aluminium Europe
    Brushed Aluminium LH Rear Fender Kit. Model-Brushed Aluminium Europe
  • 136
    705008572 Brushed Aluminium RH Rear Fender Kit. Model-Brushed Aluminium North America
    Brushed Aluminium RH Rear Fender Kit. Model-Brushed Aluminium North America
  • 136
    715002599 Brushed Aluminium RH Rear Fender Kit. Model-Brushed Aluminium Except North America
    Brushed Aluminium RH Rear Fender Kit. Model-Brushed Aluminium Except North America
  • 138
    705005019 Black Bumper. Model-XT, XTP
    Black Bumper. Model-XT, XTP
  • 139
    705008164 LH Rear Bracket. Model-XT, XTP
    LH Rear Bracket. Model-XT, XTP
  • 140
    705008165 RH Rear Bracket. Model-XT, XTP
    RH Rear Bracket. Model-XT, XTP
  • 143
    715001852 Rack Kit. North America
    Rack Kit. North America
  • 143
    715002784 Rack Kit. Europe, Int'l
    Rack Kit. Europe, Int'l
  • 144
    705009253 Black Front Bumper Support
    Black Front Bumper Support
  • 145
    708200462 Rod Cap
    Rod Cap

Все узлы модели:
