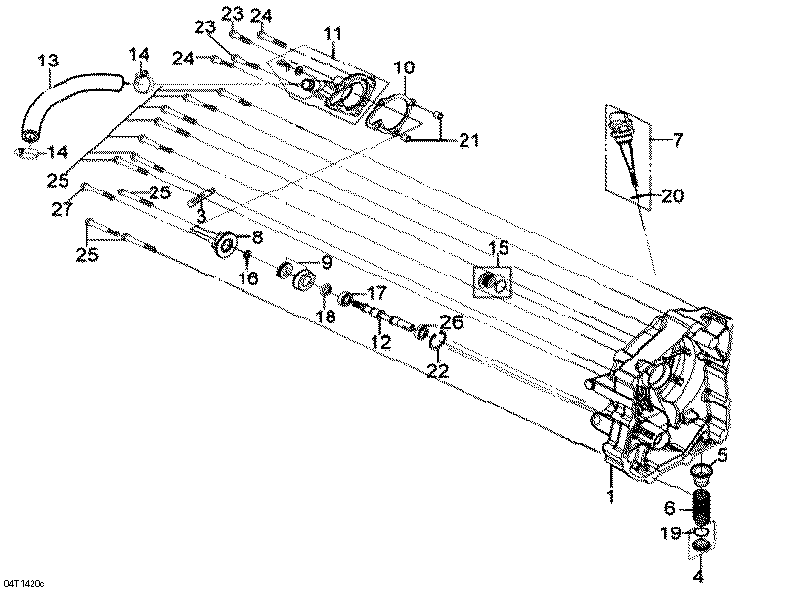

03- Magneto Cover And Water Pump для BRP DS 250 NA & INT - 2015
-
№АртикулНазвание
-
1S11330RB1000 Crankcase. EURCrankcase. EUR
-
3S12342RFS000 Clamp. EURClamp. EUR
-
4S1236AV02000 Cap Ass'y. EURCap Ass'y. EUR
-
5S15421B9D000 Oil Filter Screen. EUROil Filter Screen. EUR
-
6S15426M9Q000 Oil Filter Screw Spring. EUROil Filter Screw Spring. EUR
-
7S1565ARCA000 Oil Level Gauge Ass'y. EUROil Level Gauge Ass'y. EUR
-
8S19215HLA000 Water Pump Impeller. EURWater Pump Impeller. EUR
-
9S19217H9A300 Mechanical Seal. EURMechanical Seal. EUR
-
10S19229H9A000 Gasket. EURGasket. EUR
-
11S1922AHLA000 Water Pump Cover. EURWater Pump Cover. EUR
-
12S19231HMA000 Water Pump Shaft. EURWater Pump Shaft. EUR
-
13S19502RB1000 Hose. EURHose. EUR
-
14S19505RFS000 Clamp. EURClamp. EUR
-
15S9008AH9A000 Cap And Seal Ass'y. EURCap And Seal Ass'y. EUR
-
16S90423KJ9000 Washer. EURWasher. EUR
-
17S91001KJ9005 Ball Bearing. EURBall Bearing. EUR
-
18S91205KF0003 Oil Seal. EUROil Seal. EUR
-
19S91302RCA000 O-Ring. EURO-Ring. EUR
-
20293300037 O-Ring. EURO-Ring. EUR
-
21S9430108140 Dowel Pin. EURDowel Pin. EUR
-
22S9452026000 Circlip. EURCirclip. EUR
-
23S960010602200 Flanged Bolt M6 X 22. EURFlanged Bolt M6 X 22. EUR
-
24S960010603200 Flanged Bolt M6 X 32. EURFlanged Bolt M6 X 32. EUR
-
25S960010604500 Flanged Bolt M6 X 45. EURFlanged Bolt M6 X 45. EUR
-
26S961006000000 Ball Bearing. EURBall Bearing. EUR
-
27S960010607000 Flanged Hex. Screw M6 X 70. EURFlanged Hex. Screw M6 X 70. EUR
