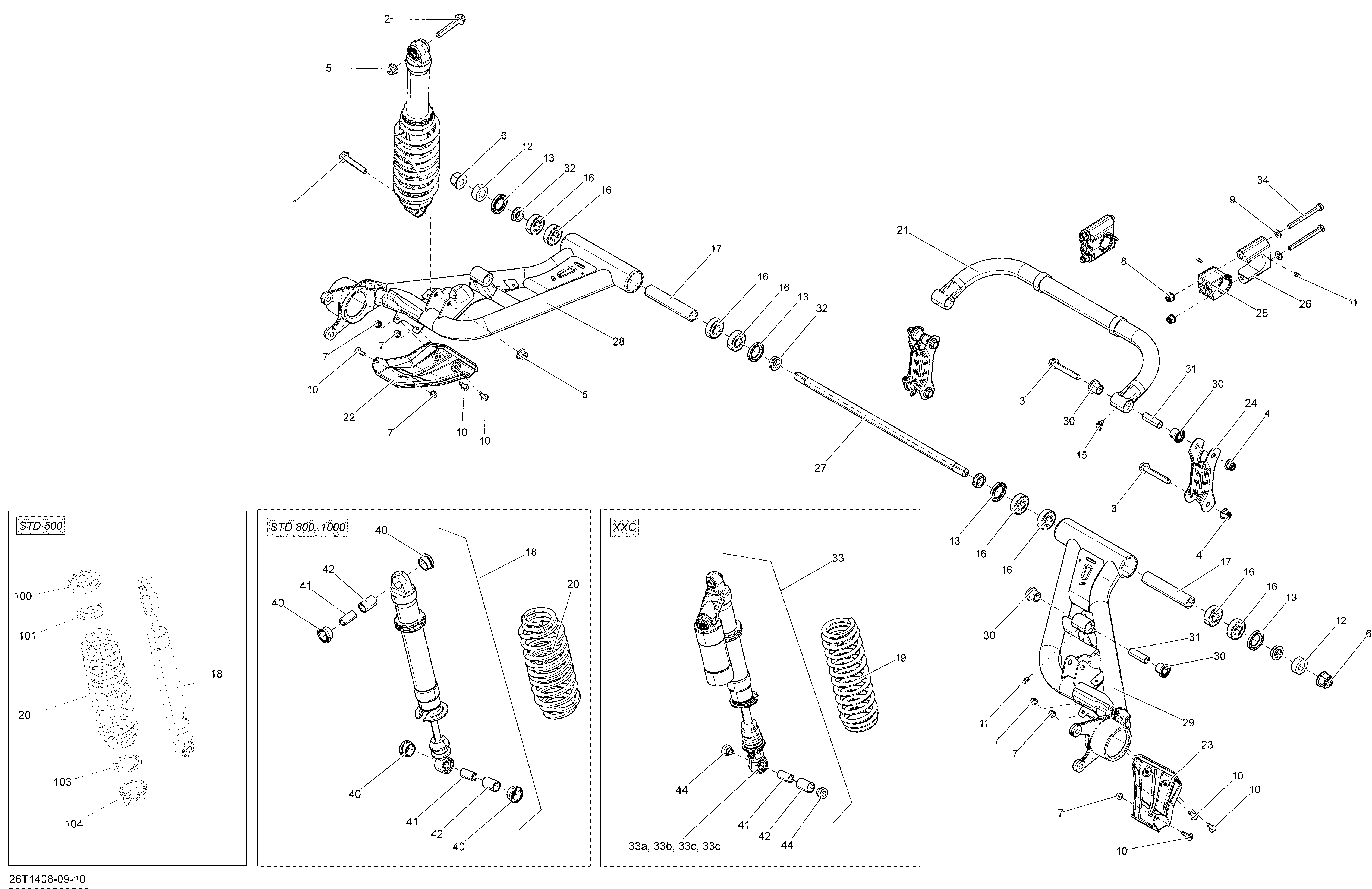

08- Rear Suspension для BRP Renegade 500EFI STD - 2014
-
№АртикулНазвание
-
1207605546 Flanged Hex. Screw M10 X 55Flanged Hex. Screw M10 X 55
-
2207606046 Flanged Hex. Screw M10 X 60Flanged Hex. Screw M10 X 60
-
3207606536 Hex Flange Screw M10 X 65Hex Flange Screw M10 X 65
-
4233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
5233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
6233211466 Hex. Flanged Elastic Nut M16Hex. Flanged Elastic Nut M16
-
7233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
8233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9234081430 Flat Washer M8Flat Washer M8
-
10250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
11250000315 Grease FittingGrease Fitting
-
12250200112 Flat Washer M17Flat Washer M17
-
13293200132 SealSeal
-
15293550056 Grease Fitting 90°Grease Fitting 90°
-
16706000826 Ball BearingBall Bearing
-
17706000828 SpacerSpacer
-
18706000958 ShockShock
-
20706001497 Yellow SpringYellow Spring
-
21706000988 SwaybarSwaybar
-
22706001009 LH ProtectorLH Protector
-
23706001010 RH ProtectorRH Protector
-
24706001020 Swaybar LinkageSwaybar Linkage
-
25706001098 CushionCushion
-
26706001099 Bushing HolderBushing Holder
-
27706001664 Axial Pivot M16Axial Pivot M16
-
28706001543 Black LH Swing ArmBlack LH Swing Arm
-
29706001544 Black RH Swing ArmBlack RH Swing Arm
-
30703500875 Bushing Kit. Includes 31Bushing Kit. Includes 31
-
31703500875 Bushing Kit. Includes 30Bushing Kit. Includes 30
-
32706001282 SpacerSpacer
-
34207088587 Hex,. Screw M8 X 85Hex,. Screw M8 X 85
-
100706200785 CapCap
-
101503187500 Spring GuideSpring Guide
-
103706200881 Spring StopperSpring Stopper
-
104505070150 Adjustment CamAdjustment Cam
