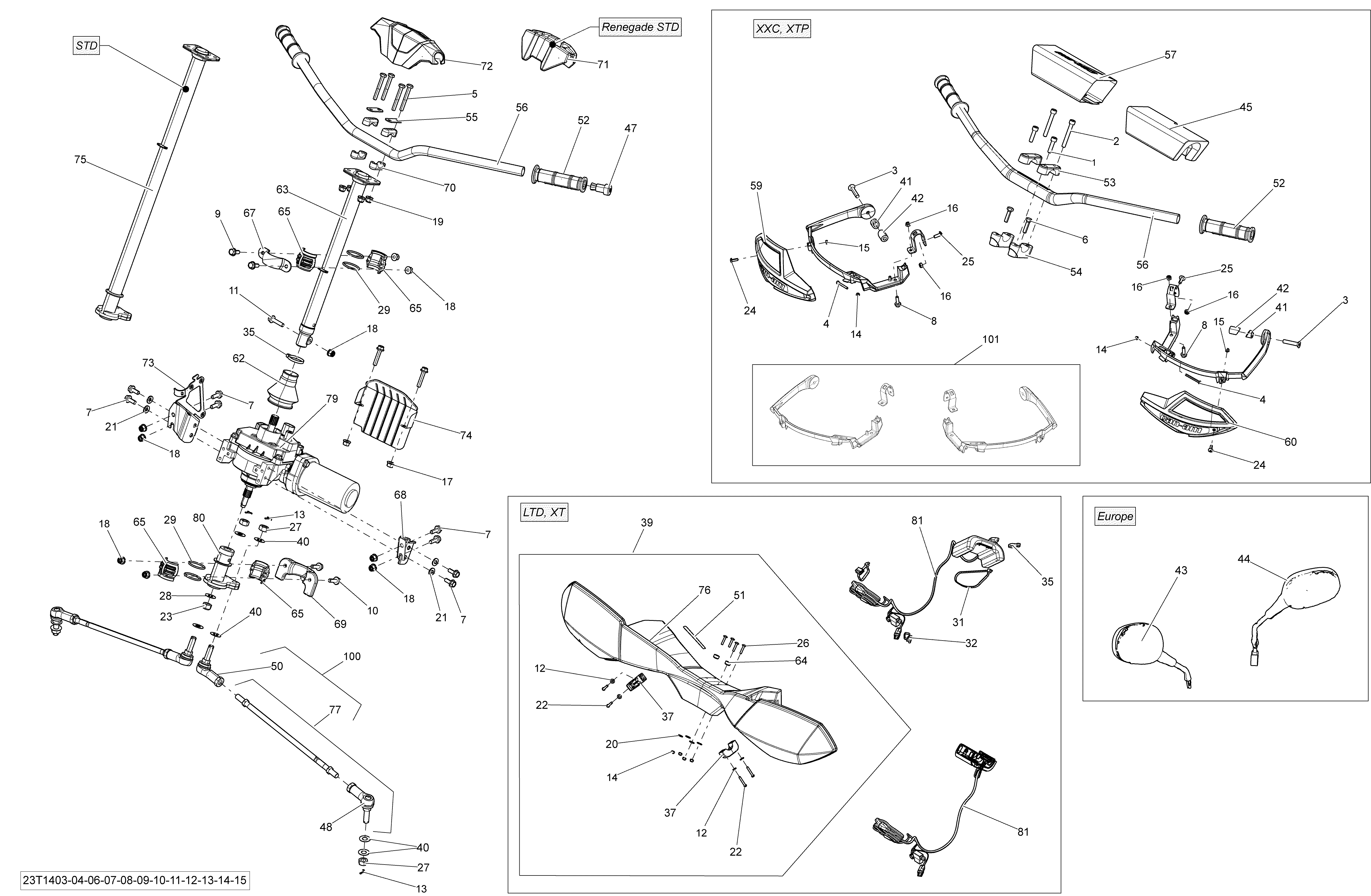

07- Steering для BRP Outlander MAX 800R EFI, DPS, XT & XT-P - 2014

  • №
    Артикул
    Название
  • 1
    205083060 Socket Screw M8 X 30
    Socket Screw M8 X 30
  • 2
    205086060 Socket Head Screw M8 X 60
    Socket Head Screw M8 X 60
  • 3
    205384034 Socket Head Screw
    Socket Head Screw
  • 4
    205444086 Socket Head Screw M4 X 40
    Socket Head Screw M4 X 40
  • 5
    207086046 Hex. Screw M8 X 60
    Hex. Screw M8 X 60
  • 6
    207183060 Hex. Screw M8 X 30
    Hex. Screw M8 X 30
  • 7
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 8
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 9
    207682044 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 10
    207682544 Hex. Flanged Screw M8 X 25
    Hex. Flanged Screw M8 X 25
  • 11
    207683544 Hex. Flanged Screw M8 X 35
    Hex. Flanged Screw M8 X 35
  • 12
    211200035 Flat Washer
    Flat Washer
  • 13
    211400013 Cotter Pin
    Cotter Pin
  • 14
    232541414 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 15
    232551600 Hex. Elastic Nut M5
    Hex. Elastic Nut M5
  • 16
    232561600 Hex. Elastic Stop Nut M6
    Hex. Elastic Stop Nut M6
  • 17
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 18
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 19
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
  • 21
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 22
    241142560 Hex. Flanged Screw K40 X 25
    Hex. Flanged Screw K40 X 25
  • 23
    250000047 Hex. Flanged Elastic Nut M12
    Hex. Flanged Elastic Nut M12
  • 24
    250000145 Torx Screw M5 X 14
    Torx Screw M5 X 14
  • 25
    250000223 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 27
    250100099 Nut M12
    Nut M12
  • 28
    250200086 Flat Washer
    Flat Washer
  • 29
    293300068 O-Ring
    O-Ring
  • 37
    517303264 U-Clamp
    U-Clamp
  • 39
    703100352 Handle Guard Ass'y, XT
    Handle Guard Ass'y, XT
  • 40
    250200086 Flat Washer
    Flat Washer
  • 41
    709400161 Bracket, Small
    Bracket, Small
  • 42
    709400162 Bracket, Large
    Bracket, Large
  • 43
    709400406 LH Mirror
    LH Mirror
  • 44
    709400523 RH Mirror
    RH Mirror
  • 45
    709400422 Foam
    Foam
  • 47
    709400449 End Piece
    End Piece
  • 48
    709400486 Ball Joint, LH Threads
    Ball Joint, LH Threads
  • 50
    709400490 Ball Joint
    Ball Joint
  • 51
    704902966 DPS Decal
    DPS Decal
  • 52
    709400493 Handle Grip
    Handle Grip
  • 53
    709400496 Support
    Support
  • 54
    709400497 Steering Support
    Steering Support
  • 55
    709400509 Stiffner
    Stiffner
  • 56
    709400513 Aluminum- Handle Bar. XTP
    Aluminum- Handle Bar. XTP
  • 56
    709401240 Steering, Black. Except XTP
    Steering, Black. Except XTP
  • 57
    709400519 Cover
    Cover
  • 59
    709400530 RH Air Deflector
    RH Air Deflector
  • 60
    709400531 LH Air Deflector
    LH Air Deflector
  • 62
    709400674 Bellows
    Bellows
  • 63
    709400703 Upper Main Tube
    Upper Main Tube
  • 65
    709400783 Spherical Half Bushing
    Spherical Half Bushing
  • 67
    709400827 Upper Column Attachment
    Upper Column Attachment
  • 68
    709400848 Power Steering Module Bracket
    Power Steering Module Bracket
  • 69
    709400912 Lower Column Attachment
    Lower Column Attachment
  • 70
    709400919 Steering Support
    Steering Support
  • 72
    709400939 Cover. DPS
    Cover. DPS
  • 72
    709400939 Cover. STD
    Cover. STD
  • 73
    709400994 RH Steering Bracket
    RH Steering Bracket
  • 74
    709401005 Heat Deflector
    Heat Deflector
  • 76
    709400822 Handle Bar Protector
    Handle Bar Protector
  • 77
    703500783 Tie-Rod Ass'y
    Tie-Rod Ass'y
  • 79
    709401182 Power Steering Ass'y
    Power Steering Ass'y
  • 80
    709401320 Lower Steering Tube, Black
    Lower Steering Tube, Black
  • 100
    703500783 Tie-Rod Ass'y
    Tie-Rod Ass'y
  • 101
    715000545 Deflector Support Kit
    Deflector Support Kit
