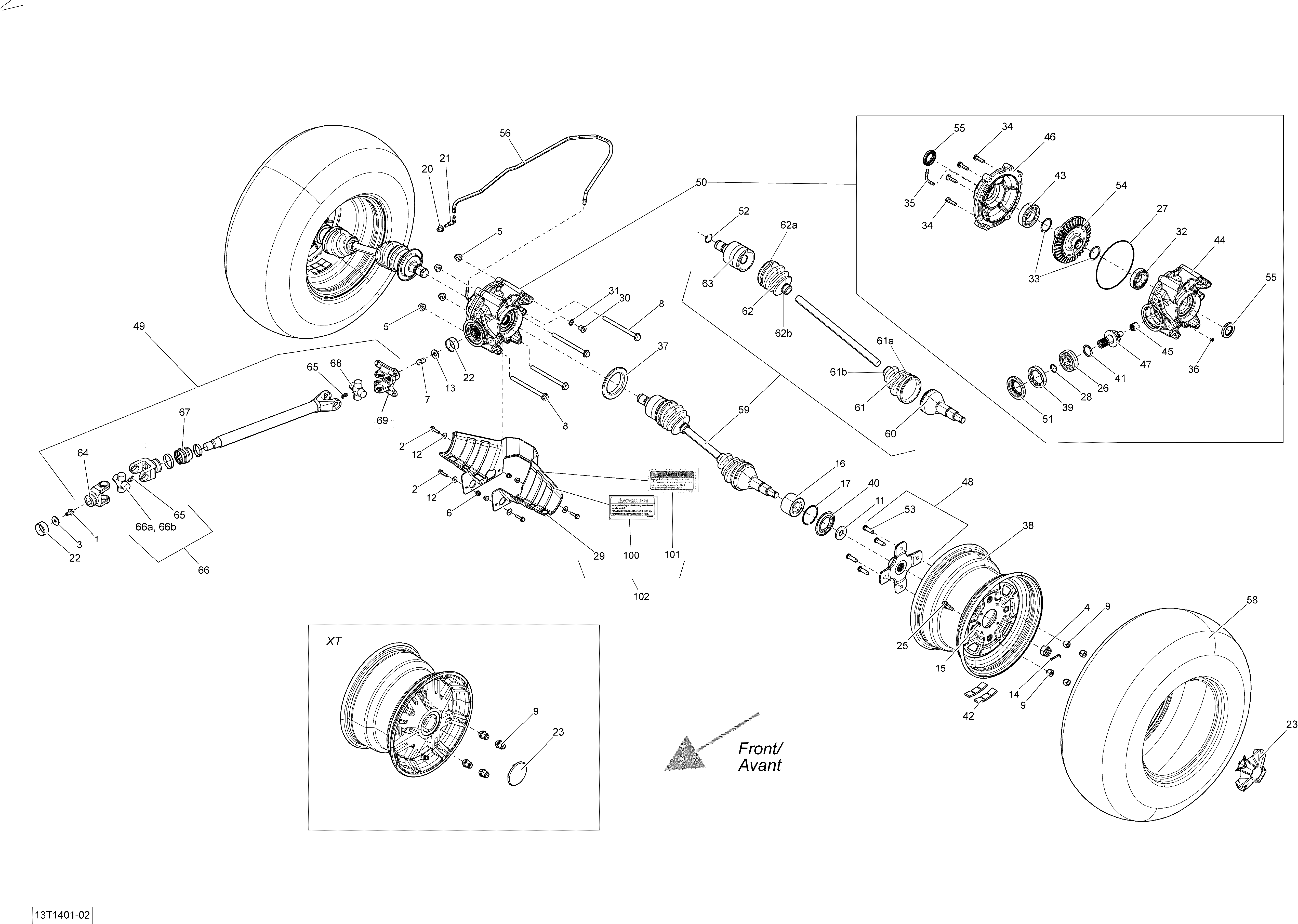

08- Drive System, Rear для BRP Outlander Max 400 EFI, STD, XT - 2014
-
№АртикулНазвание
-
1207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
2207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
3211200041 WasherWasher
-
4250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
5233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
6233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7250000378 Hex Flanged Screw M12 X 16, Scotch GripHex Flanged Screw M12 X 16, Scotch Grip
-
8250000508 Hex. Flanged Screw M10 x 135Hex. Flanged Screw M10 x 135
-
9250100042 Wheel Nut. STDWheel Nut. STD
-
9250100082 Chrome Wheel Nut M10 X 1.25. XTChrome Wheel Nut M10 X 1.25. XT
-
11250200049 Spring WasherSpring Washer
-
12250200082 Flat WasherFlat Washer
-
13250200102 Flat Washer M12Flat Washer M12
-
14250400036 Cotter PinCotter Pin
-
15293000110 Valve CapValve Cap
-
16293350040 Cone BearingCone Bearing
-
17293370019 CirclipCirclip
-
20293720029 GrommetGrommet
-
21414580600 Elbow Male ConnectorElbow Male Connector
-
22705400036 Wear RingWear Ring
-
23705400563 Wheel Cap. STDWheel Cap. STD
-
23705400680 Wheel Cap. XTWheel Cap. XT
-
25705400193 Rim Valve With CapRim Valve With Cap
-
26705500260 Ball BearingBall Bearing
-
27705500265 SealSeal
-
28705500267 O-RingO-Ring
-
29703500722 Protector KitProtector Kit
-
30705500504 Fill Level PlugFill Level Plug
-
31705500506 Copper WasherCopper Washer
-
32705500749 Ball BearingBall Bearing
-
33703500548 Differential Shim KitDifferential Shim Kit
-
34705500892 ScrewScrew
-
35705500893 Vent ValveVent Valve
-
36705500894 Drain PlugDrain Plug
-
37705501124 Wear RingWear Ring
-
38705500986 Rear Rim. XTRear Rim. XT
-
38705501607 Black Rear Rim. STDBlack Rear Rim. STD
-
39705500987 NutNut
-
40705501121 Wear SleeveWear Sleeve
-
41703500049 Pinion Shim KitPinion Shim Kit
-
41705501162 Pinion Gear ShimPinion Gear Shim
-
42705501385 1/2 OZ Weight1/2 OZ Weight
-
43705501389 Ball BearingBall Bearing
-
44705501395 Pinion Rear CoverPinion Rear Cover
-
45705501408 Needle BearingNeedle Bearing
-
46705501393 Rear CoverRear Cover
-
47705501570 10 Teeth Pinion10 Teeth Pinion
-
48705501713 Wheel HubWheel Hub
-
49703500825 Rear Propeller Shaft. OutlanderRear Propeller Shaft. Outlander
-
49703500826 Rear Propeller Shaft. Outlander MAXRear Propeller Shaft. Outlander MAX
-
50705501997 Rear Differential Ass'yRear Differential Ass'y
-
51705401481 Oil SealOil Seal
-
52705501781 CirclipCirclip
-
53250300055 Wheel StudWheel Stud
-
54705501403 36 Teeth Pinion36 Teeth Pinion
-
55705501996 Oil SealOil Seal
-
56415080200 Hose, PolyurethaneHose, Polyurethane
-
58705500933 Rear Tire. XT Except EuropeRear Tire. XT Except Europe
-
58705500598 Rear Tire. XT EuropeRear Tire. XT Europe
-
58705500934 Rear Tire. STD EuropeRear Tire. STD Europe
-
58705500385 Rear Tire. STD Except EuropeRear Tire. STD Except Europe
-
59705501486 RH Homocinetic JointRH Homocinetic Joint
-
59705501485 LH Homocinetic JointLH Homocinetic Joint
-
60705501776 CV JointCV Joint
-
61705501777 Rubber Boot Kit. Includes 61 to 61bRubber Boot Kit. Includes 61 to 61b
-
61a715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
61b715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
62705501777 Rubber Boot Kit. Includes 62 to 62bRubber Boot Kit. Includes 62 to 62b
-
62a715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
62b715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
63705501780 Plunging JointPlunging Joint
-
64715900116 Fixed Yoke JointFixed Yoke Joint
-
65703500813 Grease FittingGrease Fitting
-
66703500814 Unit Pack KitUnit Pack Kit
-
66a715900183 U-JointU-Joint
-
66b715900117 Snap RingSnap Ring
-
67715900118 Rubber BootRubber Boot
-
68715500371 Universal JointUniversal Joint
-
69715900107 Disc JointDisc Joint
-
100704900766 Warning Decal-English-TrailerWarning Decal-English-Trailer
-
101704901489 Warning Decal, Maximum TowingWarning Decal, Maximum Towing
-
102703500722 Protector KitProtector Kit
