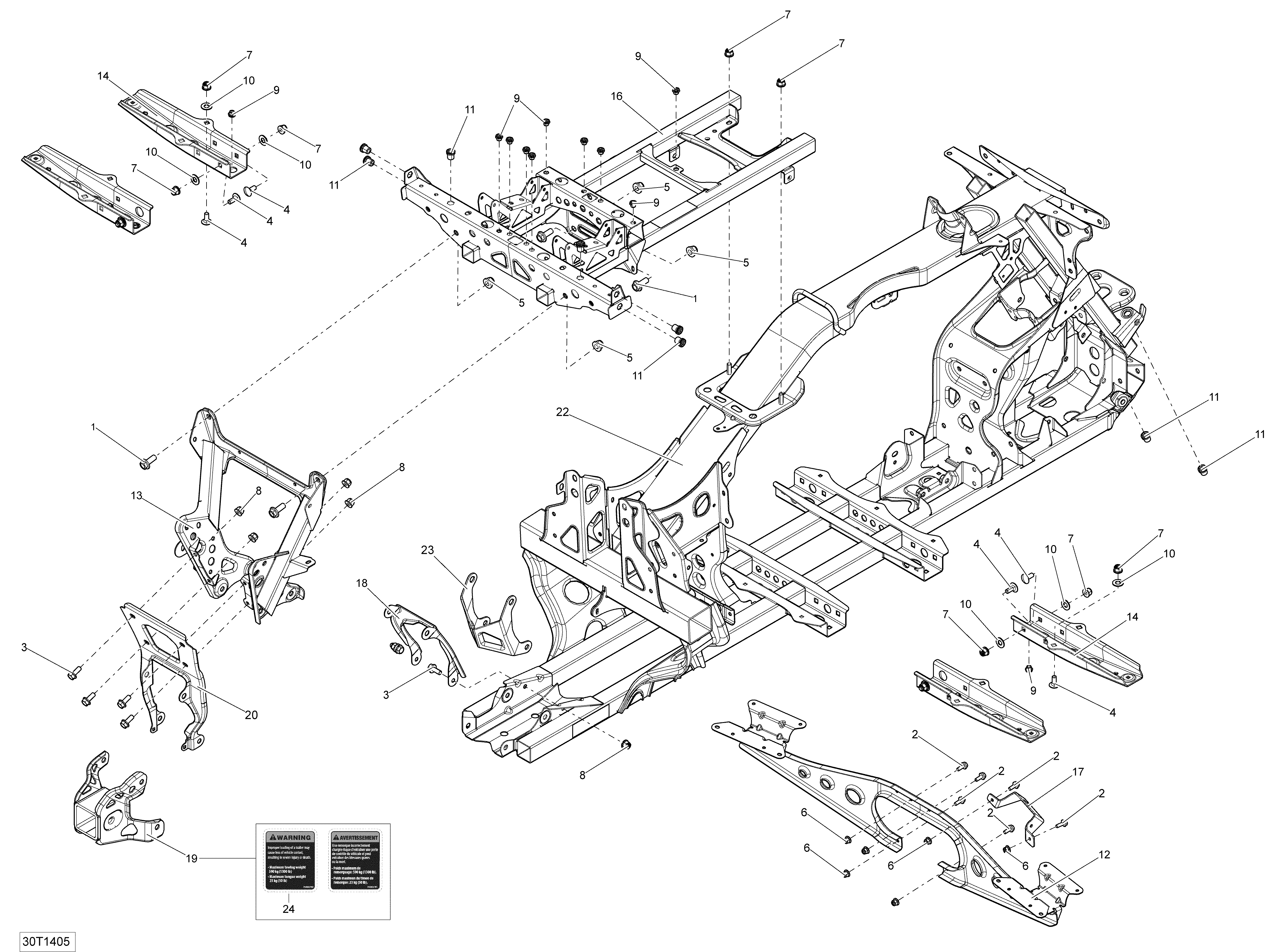

09- Frame для BRP Outlander 650EFI XMR - 2014
-
№АртикулНазвание
-
1207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
3207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
4207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
5233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
9293450232 InsertInsert
-
10234001410 Flat Washer 10 mmFlat Washer 10 mm
-
11293450307 InsertInsert
-
13705203387 Black Rear SupportBlack Rear Support
-
14705202021 Footrest SupportFootrest Support
-
16705202291 Welded Extension, BlackWelded Extension, Black
-
18705202900 Front LinkFront Link
-
19715002243 Black Trailer Hitch KitBlack Trailer Hitch Kit
-
20705203301 Rear SupportRear Support
-
22705203598 Frame, BlackFrame, Black
-
24704902780 Warning Decal, TrailerWarning Decal, Trailer
