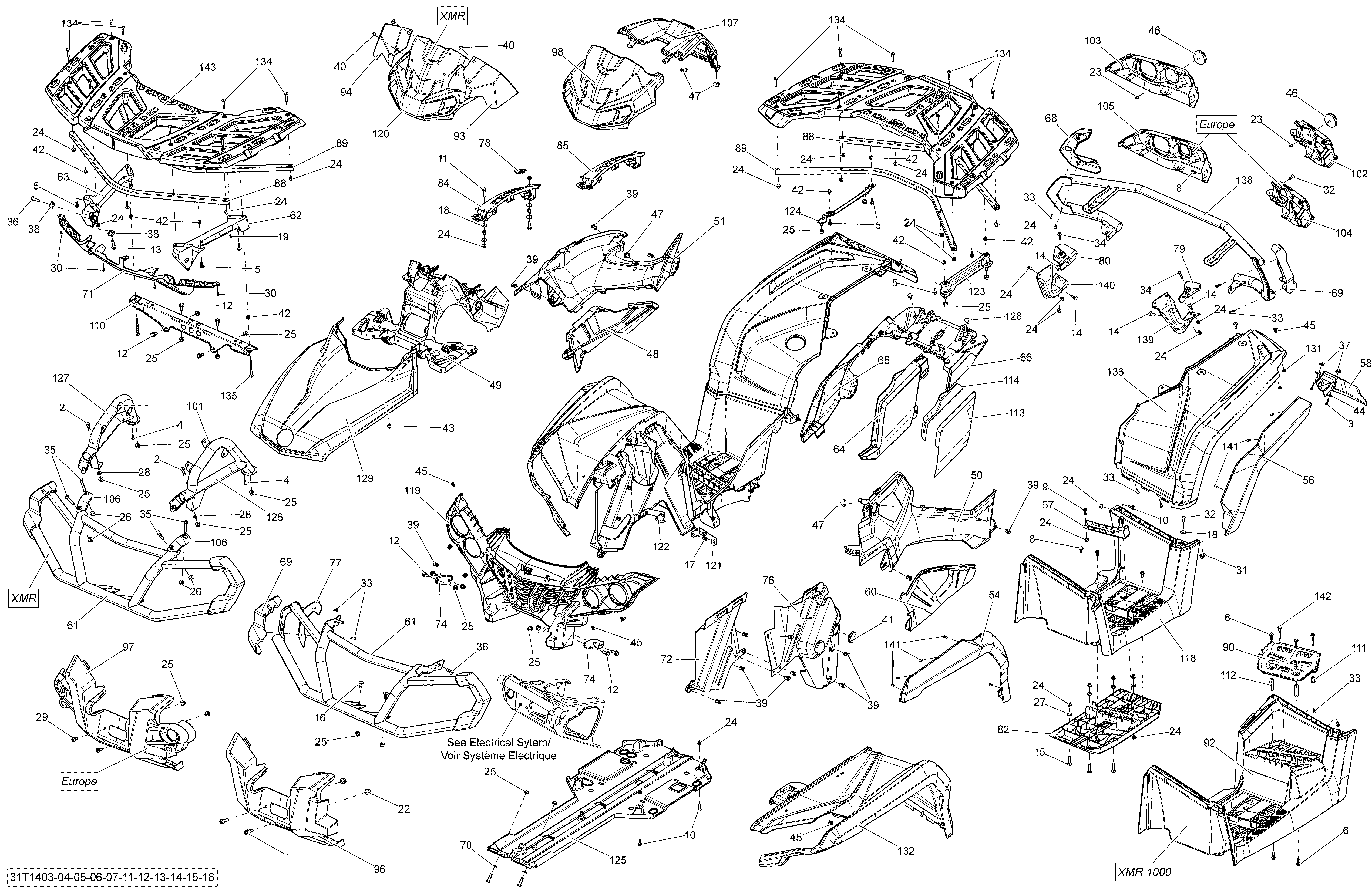

09- Body And Accessories для BRP Outlander 650EFI XMR - 2014
-
№АртикулНазвание
-
1205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
2207183054 Hex. Cap Screw M8 X 30Hex. Cap Screw M8 X 30
-
4207551634 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
5207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
9207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
12207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
15207763584 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
16207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
17210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
18224061201 Flat WasherFlat Washer
-
22233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
23233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
24233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
25233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
26233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
27234062410 Flat Washer 6 mmFlat Washer 6 mm
-
28234081670 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
29236282084 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
31250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
32250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
33250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
35250000535 Torx Screw M8 X 55Torx Screw M8 X 55
-
36250000544 Torx Screw M8 X 30Torx Screw M8 X 30
-
39293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
40293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
41293250242 Rubber CoverRubber Cover
-
42293450274 InsertInsert
-
43293830005 Rubber BumperRubber Bumper
-
44517124300 WasherWasher
-
45517302785 ClipClip
-
46705002408 Red ReflectorRed Reflector
-
47705003264 GrommetGrommet
-
48705003444 Engine CoverEngine Cover
-
49715001552 Dash Support KitDash Support Kit
-
50705003446 Yellow LH Lateral PanelYellow LH Lateral Panel
-
51705003447 Yellow RH PannelYellow RH Pannel
-
60705004147 LH Extension PannelLH Extension Pannel
-
61705006876 Black Front BumperBlack Front Bumper
-
67705004352 LH FootrestLH Footrest
-
67705005395 RH FootrestRH Footrest
-
68705004409 Cap (Front LH) (Rear RH)Cap (Front LH) (Rear RH)
-
69705004410 Cap (Front RH) (Rear LH)Cap (Front RH) (Rear LH)
-
70705004497 RingRing
-
72705004558 RH Inner FenderRH Inner Fender
-
72705004557 LH Inner FenderLH Inner Fender
-
74705004565 Lower Fender SupportLower Fender Support
-
76705004587 RH Inner FenderRH Inner Fender
-
76705004588 LH Inner FenderLH Inner Fender
-
77705004987 Bracket CoverBracket Cover
-
82705005254 LH. FootboardLH. Footboard
-
82705005253 RH. FootboardRH. Footboard
-
84705005258 IndicatorIndicator
-
88705005469 TubeTube
-
89705005470 TubeTube
-
93705006134 LH Air DeflectorLH Air Deflector
-
94705006135 RH Air DeflectorRH Air Deflector
-
96705006299 Front Guard PlateFront Guard Plate
-
101705006402 Anchor BracketAnchor Bracket
-
102705006643 LH Rear Facia. Model-Nord America/InternationalLH Rear Facia. Model-Nord America/International
-
103705006650 RH Rear Facia. Model-Nord America/InternationalRH Rear Facia. Model-Nord America/International
-
106705006691 Upper BracketUpper Bracket
-
107715001765 Dash KitDash Kit
-
110705006220 Front Bumper Center SupportFront Bumper Center Support
-
118705007040 LH FootrestLH Footrest
-
118705007039 RH FootrestRH Footrest
-
119705007041 Front FaciaFront Facia
-
120705007095 Gauge SupportGauge Support
-
121705007140 LH Inner Fender BracketLH Inner Fender Bracket
-
122705007141 RH Inner Fender BracketRH Inner Fender Bracket
-
123705007277 LH SupportLH Support
-
124705007278 RH SupportRH Support
-
125705007553 Central Skid PlateCentral Skid Plate
-
126705007878 LH Radiator SupportLH Radiator Support
-
127705007879 RH Radiator SupportRH Radiator Support
-
129708301154 Yellow Hood KitYellow Hood Kit
-
131732610072 Push NutPush Nut
-
132715002301 Black LH Front Fender Kit. Model-Nord AmericaBlack LH Front Fender Kit. Model-Nord America
-
132715002303 Black LH Front Fender Kit. Model-InternationalBlack LH Front Fender Kit. Model-International
-
132715001514 Black RH Front Fender Kit. Model-Nord AmericaBlack RH Front Fender Kit. Model-Nord America
-
132715002311 Black RH Front Fender Kit. Model-InternationalBlack RH Front Fender Kit. Model-International
-
134250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
136715001798 Black LH Rear Fender Kit. Model-Nord AmericaBlack LH Rear Fender Kit. Model-Nord America
-
136715002312 Black LH Rear Fender Kit. Model-InternationalBlack LH Rear Fender Kit. Model-International
-
136715002315 Black RH Rear Fender Kit. Model-InternationalBlack RH Rear Fender Kit. Model-International
-
136715002315 Black RH Rear Fender Kit. Model-Nord AmericaBlack RH Rear Fender Kit. Model-Nord America
-
139705007896 LH Rear BracketLH Rear Bracket
-
140705007897 RH Rear BracketRH Rear Bracket
-
143715001852 Rack KitRack Kit
