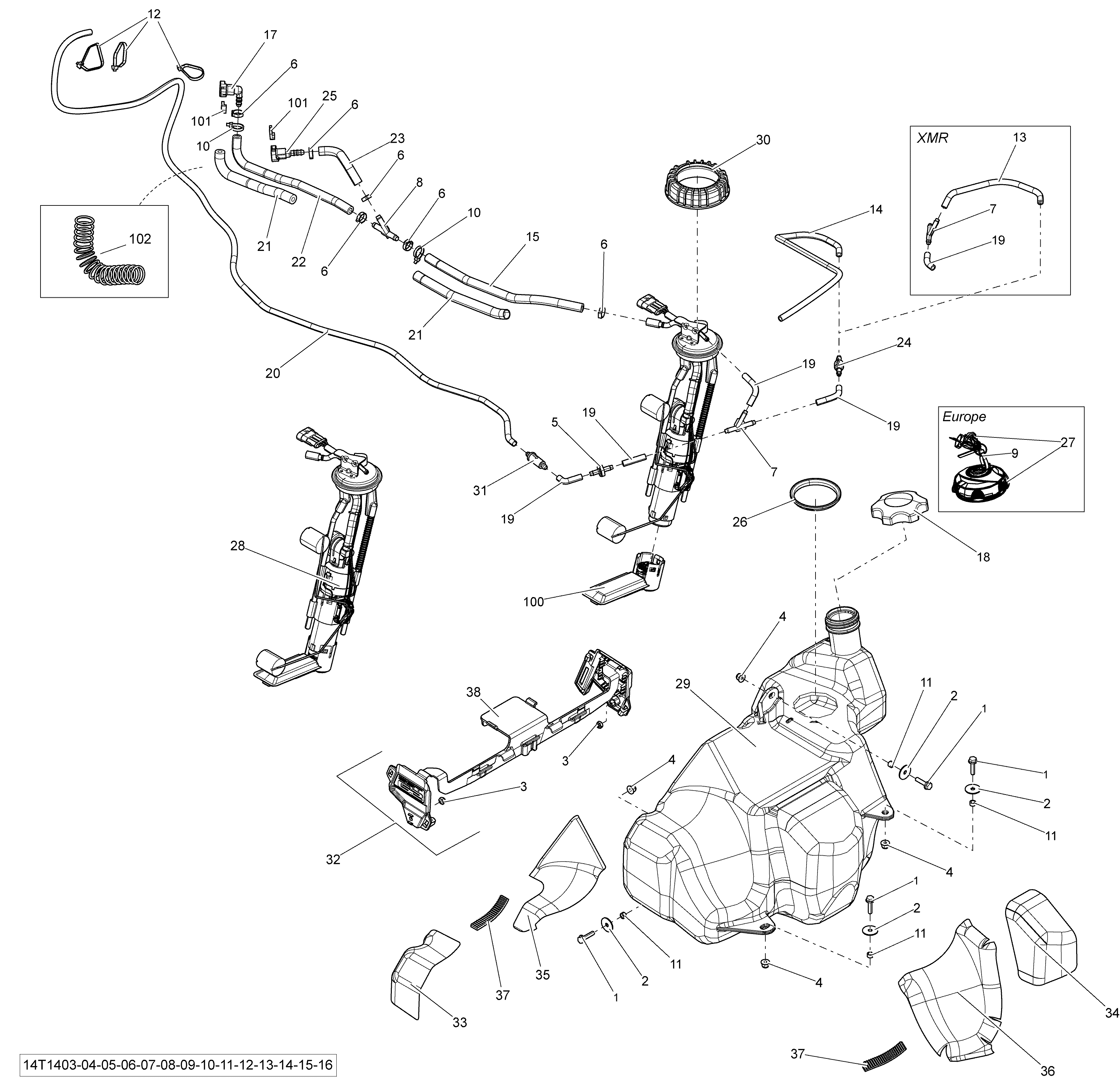

02- Fuel System для BRP Outlander 650EFI XMR - 2014
-
№АртикулНазвание
-
1207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
2224060251 WasherWasher
-
3232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
4233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
5275500398 Check ValveCheck Valve
-
6293650047 Crimp ClampCrimp Clamp
-
7293710059 Y-FittingY-Fitting
-
8293710136 Y-Fitting, 5/16''Y-Fitting, 5/16''
-
9293750001 Tie-Rap 94 mm. EuropeTie-Rap 94 mm. Europe
-
10293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
11293900104 BushingBushing
-
12414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
13415080200 Hose, PolyurethaneHose, Polyurethane
-
14709000516 Fuel LineFuel Line
-
15709000393 Fuel LineFuel Line
-
17415128965 Quick Fitting 90° Ass'yQuick Fitting 90° Ass'y
-
18513033025 Fuel Tank Cap. North America, InternationalFuel Tank Cap. North America, International
-
19415080200 Hose, PolyurethaneHose, Polyurethane
-
20415080200 Hose, PolyurethaneHose, Polyurethane
-
21415080000 Tubing 16 mmTubing 16 mm
-
22709000393 Fuel LineFuel Line
-
23709000393 Fuel LineFuel Line
-
24513033469 Check ValveCheck Valve
-
25709000125 Female Quick Fitting Ass'yFemale Quick Fitting Ass'y
-
26709000208 SealSeal
-
27860200387 Locking Cap Tank. EuropeLocking Cap Tank. Europe
-
28709000287 Fuel Pump Module Ass'yFuel Pump Module Ass'y
-
29709000310 Fuel Tank Ass'yFuel Tank Ass'y
-
30709000328 Fuel Pump Module NutFuel Pump Module Nut
-
31709000330 FilterFilter
-
32709000359 Hose Support Ass'yHose Support Ass'y
-
33709000381 Heat Reflective SheetHeat Reflective Sheet
-
34709000382 Heat Reflective SheetHeat Reflective Sheet
-
35709000387 Heat Reflective SheetHeat Reflective Sheet
-
36709000388 Heat Reflective SheetHeat Reflective Sheet
-
37293830129 Rubber PadRubber Pad
-
38709000359 Hose Support Ass'yHose Support Ass'y
-
100709000389 Fuel Pre-Filter KitFuel Pre-Filter Kit
-
101513033135 Locking ClipLocking Clip
