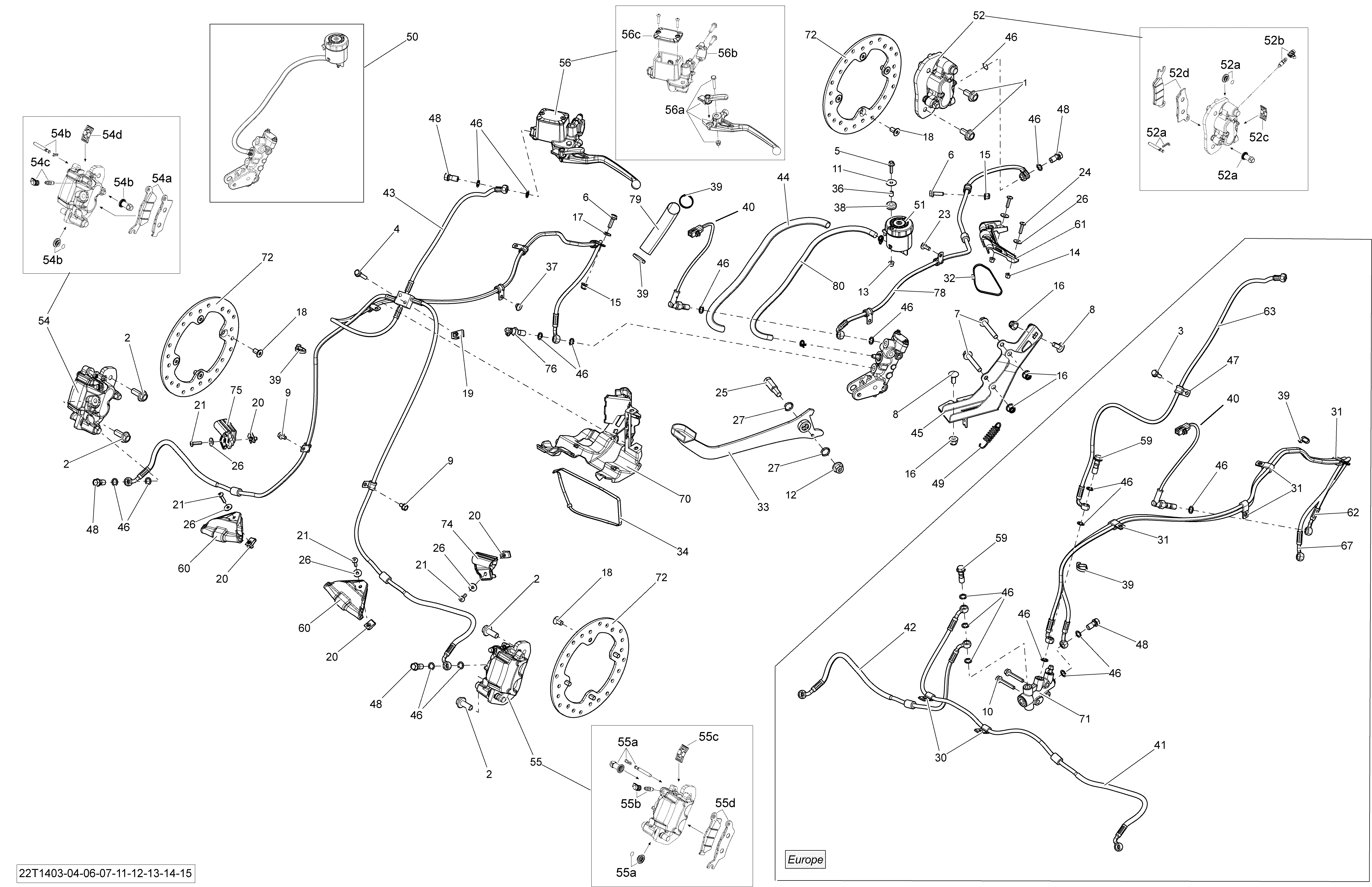

06- Brakes для BRP Outlander 650EFI STD, DPS & XT - 2014

  • №
    Артикул
    Название
  • 1
    207502046 Hex. Flanged Screw M10 X 20
    Hex. Flanged Screw M10 X 20
  • 2
    207502546 Hex. Flanged Screw M10 X 25
    Hex. Flanged Screw M10 X 25
  • 3
    207562044 Flanged Screw M6 X 20, Scotch Grip
    Flanged Screw M6 X 20, Scotch Grip
  • 4
    207563044 Hex. Flanged Screw M6 X 30, Scotch Grip
    Hex. Flanged Screw M6 X 30, Scotch Grip
  • 5
    207652044 Flanged Hex. Screw M5 X 20
    Flanged Hex. Screw M5 X 20
  • 6
    207562044 Flanged Screw M6 X 20, Scotch Grip
    Flanged Screw M6 X 20, Scotch Grip
  • 7
    207685544 Hex. Flanged Screw M8 X 55
    Hex. Flanged Screw M8 X 55
  • 8
    207782044 Carriage Bolt, M8 X 20
    Carriage Bolt, M8 X 20
  • 9
    210261040 Hex. Flanged Screw M6 X 10
    Hex. Flanged Screw M6 X 10
  • 10
    210264080 Hex. Screw M6 X 40
    Hex. Screw M6 X 40
  • 11
    224060201 Flat Washer
    Flat Washer
  • 12
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 13
    233251414 Hex. Flanged Elastic Nut M5
    Hex. Flanged Elastic Nut M5
  • 14
    233251494 Elastic Flanged Nut M5
    Elastic Flanged Nut M5
  • 15
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 16
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 17
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 18
    235381646 Torx Screw M8 X 16, Scotch Grip
    Torx Screw M8 X 16, Scotch Grip
  • 19
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 20
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 21
    250000130 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 23
    250000261 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 24
    250000465 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 25
    250000513 Shoulder Screw M10
    Shoulder Screw M10
  • 26
    250200025 Washer M5
    Washer M5
  • 26
    250200025 Washer M5
    Washer M5
  • 27
    293300144 O-Ring
    O-Ring
  • 30
    293650219 Clamp
    Clamp
  • 31
    293650220 Clamp
    Clamp
  • 32
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 33
    705601155 Brake Pedal
    Brake Pedal
  • 34
    293750047 Tie Rap, 533 mm
    Tie Rap, 533 mm
  • 36
    293900112 Bushing
    Bushing
  • 37
    390406500 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 38
    414036300 Grommet
    Grommet
  • 39
    414115200 Tie-Rap 180 mm. Except Europe
    Tie-Rap 180 mm. Except Europe
  • 39
    414115200 Tie-Rap 180 mm. Europe
    Tie-Rap 180 mm. Europe
  • 40
    705601250 Brake Switch
    Brake Switch
  • 40
    705601251 Brake Switch. Europe
    Brake Switch. Europe
  • 41
    705601124 LH Brake Line
    LH Brake Line
  • 42
    705601125 RH Brake Line
    RH Brake Line
  • 43
    705601122 Brake Line
    Brake Line
  • 44
    415079900 Tubing 10 mm
    Tubing 10 mm
  • 45
    705202000 Bracket Brake Pedal
    Bracket Brake Pedal
  • 46
    705600310 Copper Washer. Europe
    Copper Washer. Europe
  • 46
    705600310 Copper Washer. Except Europe
    Copper Washer. Except Europe
  • 47
    705600459 Clamp. Except Europe
    Clamp. Except Europe
  • 47
    705600459 Clamp. Europe
    Clamp. Europe
  • 48
    705600609 Banjo Bolt. Except Europe
    Banjo Bolt. Except Europe
  • 48
    705600609 Banjo Bolt. Europe
    Banjo Bolt. Europe
  • 49
    705600792 Brake Pedal Spring
    Brake Pedal Spring
  • 50
    705601273 Rear Master Cylinder. Except Europe
    Rear Master Cylinder. Except Europe
  • 50
    705601274 Rear Master Cylinder. Europe
    Rear Master Cylinder. Europe
  • 51
    705601020 Oil Tank
    Oil Tank
  • 52
    705600859 RH Rear Caliper Ass'y
    RH Rear Caliper Ass'y
  • 52a
    705601016 Pin Set
    Pin Set
  • 52b
    705601017 Bleeding Screw
    Bleeding Screw
  • 52c
    705601018 Spring
    Spring
  • 52d
    705601014 RH Brake Pad Kit
    RH Brake Pad Kit
  • 54
    705600861 RH Front Caliper Ass'y
    RH Front Caliper Ass'y
  • 54a
    705601014 RH Brake Pad Kit
    RH Brake Pad Kit
  • 54b
    705601016 Pin Set
    Pin Set
  • 54c
    705601017 Bleeding Screw
    Bleeding Screw
  • 54d
    705601018 Spring
    Spring
  • 55
    705600862 LH Front Caliper Ass'y
    LH Front Caliper Ass'y
  • 55a
    705601016 Pin Set
    Pin Set
  • 55b
    705601017 Bleeding Screw
    Bleeding Screw
  • 55c
    705601018 Spring
    Spring
  • 55d
    705601015 LH Brake Pad Kit
    LH Brake Pad Kit
  • 56
    705600865 Front Master Cylinder
    Front Master Cylinder
  • 56a
    705601013 Lever Set
    Lever Set
  • 56b
    507032477 Clamp And Screw Kit
    Clamp And Screw Kit
  • 56c
    219800096 Cap Set
    Cap Set
  • 59
    705600958 Banjo Bolt
    Banjo Bolt
  • 60
    705600962 Front Hose Protector
    Front Hose Protector
  • 61
    705600963 Rear Hose Protector
    Rear Hose Protector
  • 62
    705600964 Outlet Hose, Master Cylinder
    Outlet Hose, Master Cylinder
  • 63
    705600967 Brake Handle Line
    Brake Handle Line
  • 67
    705600973 Inlet Hose, Master Cylinder
    Inlet Hose, Master Cylinder
  • 70
    705600983 Front Hose Bracket
    Front Hose Bracket
  • 71
    705600994 Splitter
    Splitter
  • 72
    705600999 Disc Brake
    Disc Brake
  • 74
    705601048 LH Hose Bracket
    LH Hose Bracket
  • 75
    705601049 RH Hose Bracket
    RH Hose Bracket
  • 76
    705601051 Bleeding Screw
    Bleeding Screw
  • 78
    705601005 RH Brake Line. Europe
    RH Brake Line. Europe
  • 78
    705601002 Brake Line Ass'y. Except Europe
    Brake Line Ass'y. Except Europe
  • 80
    705601019 Housing Oil Hose
    Housing Oil Hose
