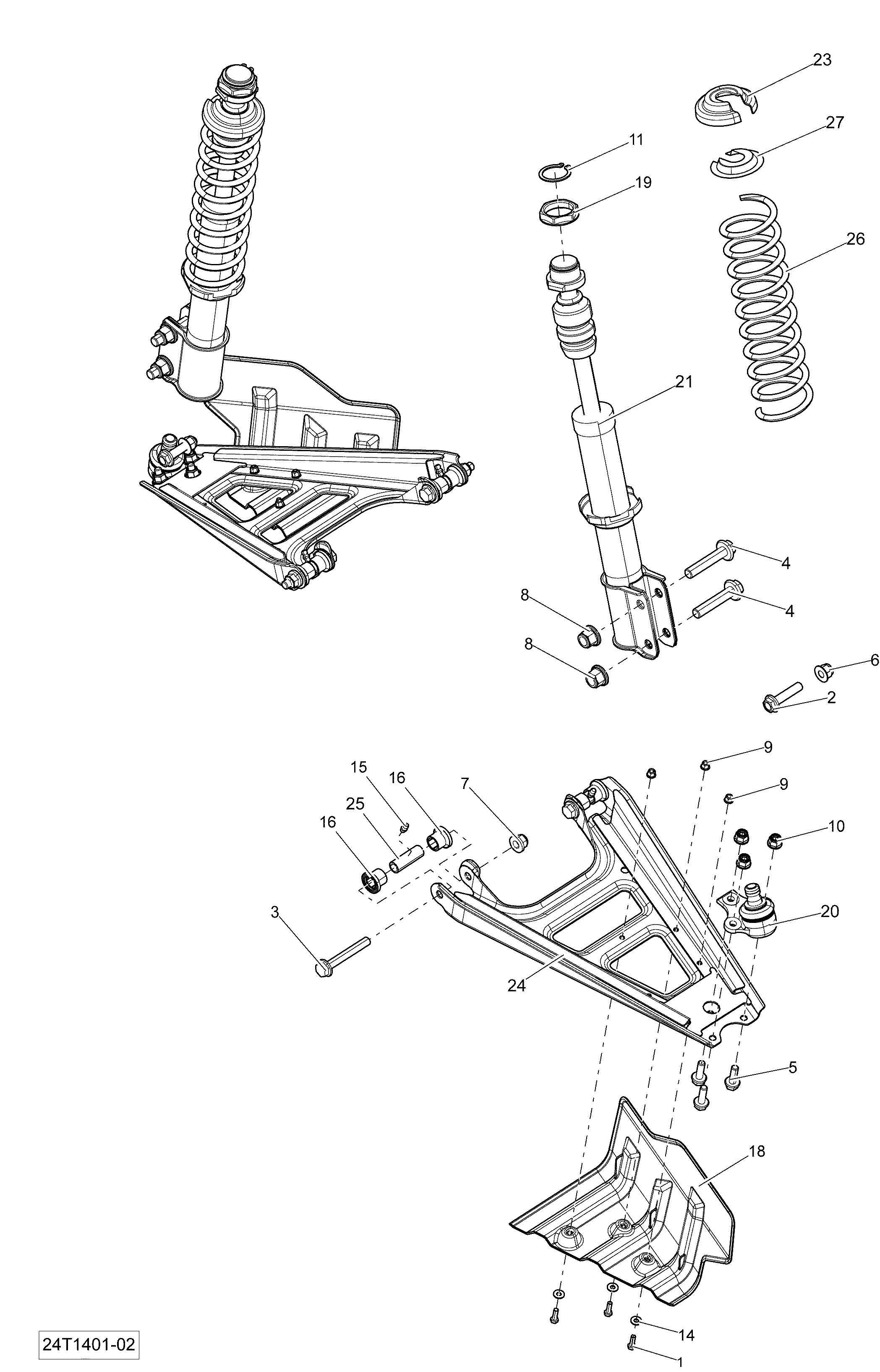

07- Front Suspension для BRP Outlander 400 EFI, STD, XT - 2014
-
№АртикулНазвание
-
1207151644 Hex. Screw M5 X 16Hex. Screw M5 X 16
-
2207604544 Hex. Flanged Screw M10 X 45Hex. Flanged Screw M10 X 45
-
3207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
4207626046 Hex. Flanged Screw M12 X 60Hex. Flanged Screw M12 X 60
-
5207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
6233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
7233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
8233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
9233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11293370009 Circlip 32 mmCirclip 32 mm
-
14250200081 Flat WasherFlat Washer
-
15408200700 Grease FittingGrease Fitting
-
16706200181 CushionCushion
-
18706200213 LH ProtectorLH Protector
-
18706200214 RH ProtectorRH Protector
-
19706200443 NutNut
-
20706200444 Joint AttachmentJoint Attachment
-
21706200658 Front ShockFront Shock
-
23706200882 Stopper SpringStopper Spring
-
24706201050 Suspension Arm, BlackSuspension Arm, Black
-
25706201587 Inner BushingInner Bushing
-
26706200819 Front Spring. OutlanderFront Spring. Outlander
-
27706200793 Cap. OutlanderCap. Outlander
