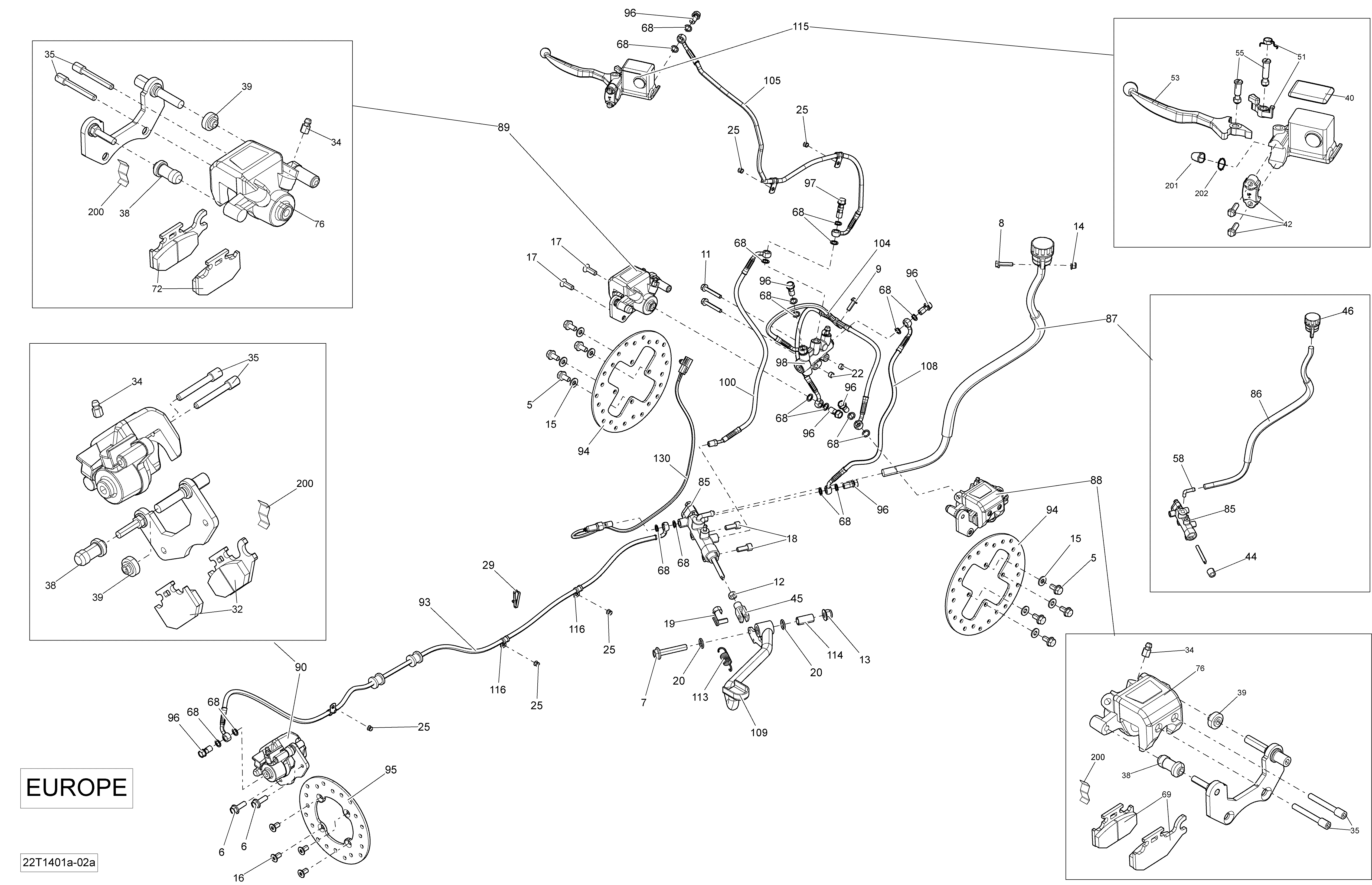

06- Brakes EUROPE для BRP Outlander 400 EFI, STD, XT - 2014
-
№АртикулНазвание
-
5207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
6207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
7207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
8207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
9210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
11210264080 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
12232081414 Hex. Nut M8Hex. Nut M8
-
13233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15234281474 Conical Spring Washer M8Conical Spring Washer M8
-
16235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
17250000143 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
18250000136 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
19219702305 Pin KitPin Kit
-
20293300144 O-RingO-Ring
-
22293900104 BushingBushing
-
25390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
32705600398 LH Brake Pad KitLH Brake Pad Kit
-
34705600080 Bleeding ScrewBleeding Screw
-
35705600081 Pin SetPin Set
-
38705600082 Compression BootCompression Boot
-
39705600083 Compression BootCompression Boot
-
40705600084 Cap SetCap Set
-
42705600087 Bracket KitBracket Kit
-
44705600090 Compression BootCompression Boot
-
45705600100 YokeYoke
-
46705600182 Oil Tank, Brake Fluid ReservoirOil Tank, Brake Fluid Reservoir
-
51705600477 Parking Kit, Brake Lever LockParking Kit, Brake Lever Lock
-
53705600243 Lever ArmLever Arm
-
55705600246 Brake Lever Bolt KitBrake Lever Bolt Kit
-
58705600064 Pusher Bracket, Hose ConnectorPusher Bracket, Hose Connector
-
68705600310 Copper WasherCopper Washer
-
69705600004 Brake Pad KitBrake Pad Kit
-
72705600014 Brake Pad KitBrake Pad Kit
-
76705600078 Piston SetPiston Set
-
85705600255 Piston SetPiston Set
-
86705600754 Oil Housing HoseOil Housing Hose
-
87705600743 Rear Master Cylinder Ass'yRear Master Cylinder Ass'y
-
88705600728 RH CaliperRH Caliper
-
89705600729 LH CaliperLH Caliper
-
90705600791 Rear CaliperRear Caliper
-
93705600929 Rear HoseRear Hose
-
94705600603 Disk BrakeDisk Brake
-
95705600604 Disk BrakeDisk Brake
-
96705600609 Banjo BoltBanjo Bolt
-
97705600958 Banjo BoltBanjo Bolt
-
98705600800 SplitterSplitter
-
100705600756 Line BrakeLine Brake
-
104705600757 Line BrakeLine Brake
-
105705600758 Line BrakeLine Brake
-
108705600759 Line BrakeLine Brake
-
109705601154 Brake pedal, BlackBrake pedal, Black
-
113705600792 Brake Pedal SpringBrake Pedal Spring
-
114705600815 Inner SpacerInner Spacer
-
115705600844 Front Master CylinderFront Master Cylinder
-
116705600459 ClampClamp
-
130705600798 Brake SwitchBrake Switch
-
200705600079 SpringSpring
-
201705600089 Compression BootCompression Boot
-
202705600088 CirclipCirclip
