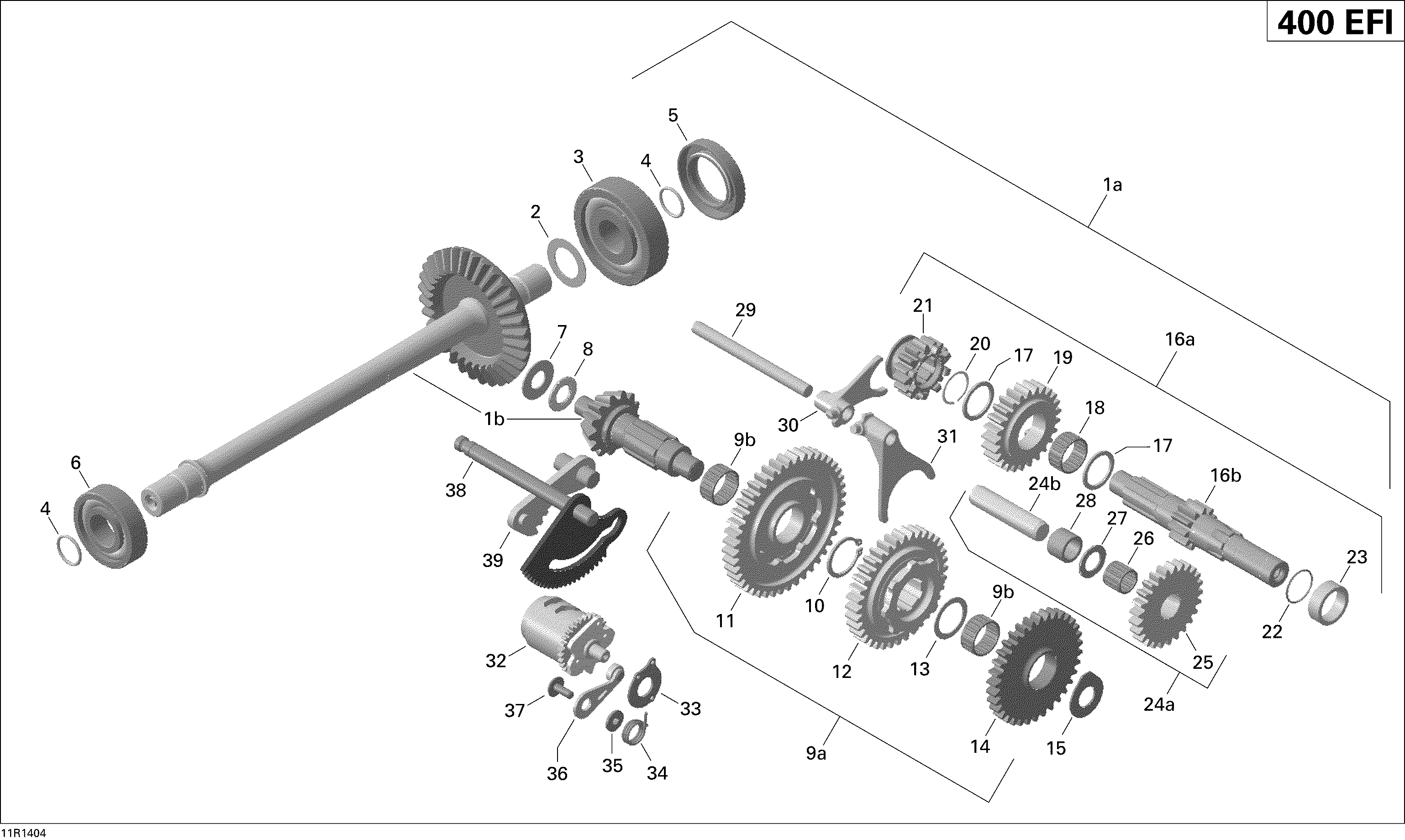

05- Gear Shift для BRP Outlander 400 EFI, STD, XT - 2014
-
№АртикулНазвание
-
1a420684221 Drive Ass'y. Includes 1a to 28Drive Ass'y. Includes 1a to 28
-
1b420635555 Bevel Gear Ass'yBevel Gear Ass'y
-
2420281300 Washer Thrust SetWasher Thrust Set
-
3420632280 Ball Bearing 6405Ball Bearing 6405
-
4420430370 O-RingO-Ring
-
5420650682 Oil SealOil Seal
-
6420932825 Ball BearingBall Bearing
-
7420281306 Thrust Washer Set, MAG SideThrust Washer Set, MAG Side
-
8420632300 Axial Needle BearingAxial Needle Bearing
-
9a420281286 Gear Wheel Set. Includes 9a to 14Gear Wheel Set. Includes 9a to 14
-
9b420632070 Needle BearingNeedle Bearing
-
10420245850 Retaining RingRetaining Ring
-
15420281302 Thrust Washer Set, CVT SideThrust Washer Set, CVT Side
-
16a420620441 Countershaft Ass'y, 11 Teeth. Includes 16a to 23Countershaft Ass'y, 11 Teeth. Includes 16a to 23
-
18420632070 Needle BearingNeedle Bearing
-
20420445300 CirclipCirclip
-
22420630040 O-RingO-Ring
-
23420247114 Distance RingDistance Ring
-
24a420635673 Intermediate Gear Shaft Ass'y. Includes 24a to 28Intermediate Gear Shaft Ass'y. Includes 24a to 28
-
24b420229600 Needle PinNeedle Pin
-
26420432030 Needle CageNeedle Cage
-
29420229540 PinPin
-
30420257330 Shift ForkShift Fork
-
31420257340 Shift ForkShift Fork
-
32420257325 Shift Drum Ass'yShift Drum Ass'y
-
33420627780 Isolating WasherIsolating Washer
-
34420238290 Index SpringIndex Spring
-
35420227711 Step RingStep Ring
-
36703500254 Index Lever KitIndex Lever Kit
-
37420241529 Torx Screw M6 X 16Torx Screw M6 X 16
-
38420620135 Shift Shaft Ass'yShift Shaft Ass'y
-
39420257315 Parking Lock Lever Ass'yParking Lock Lever Ass'y
