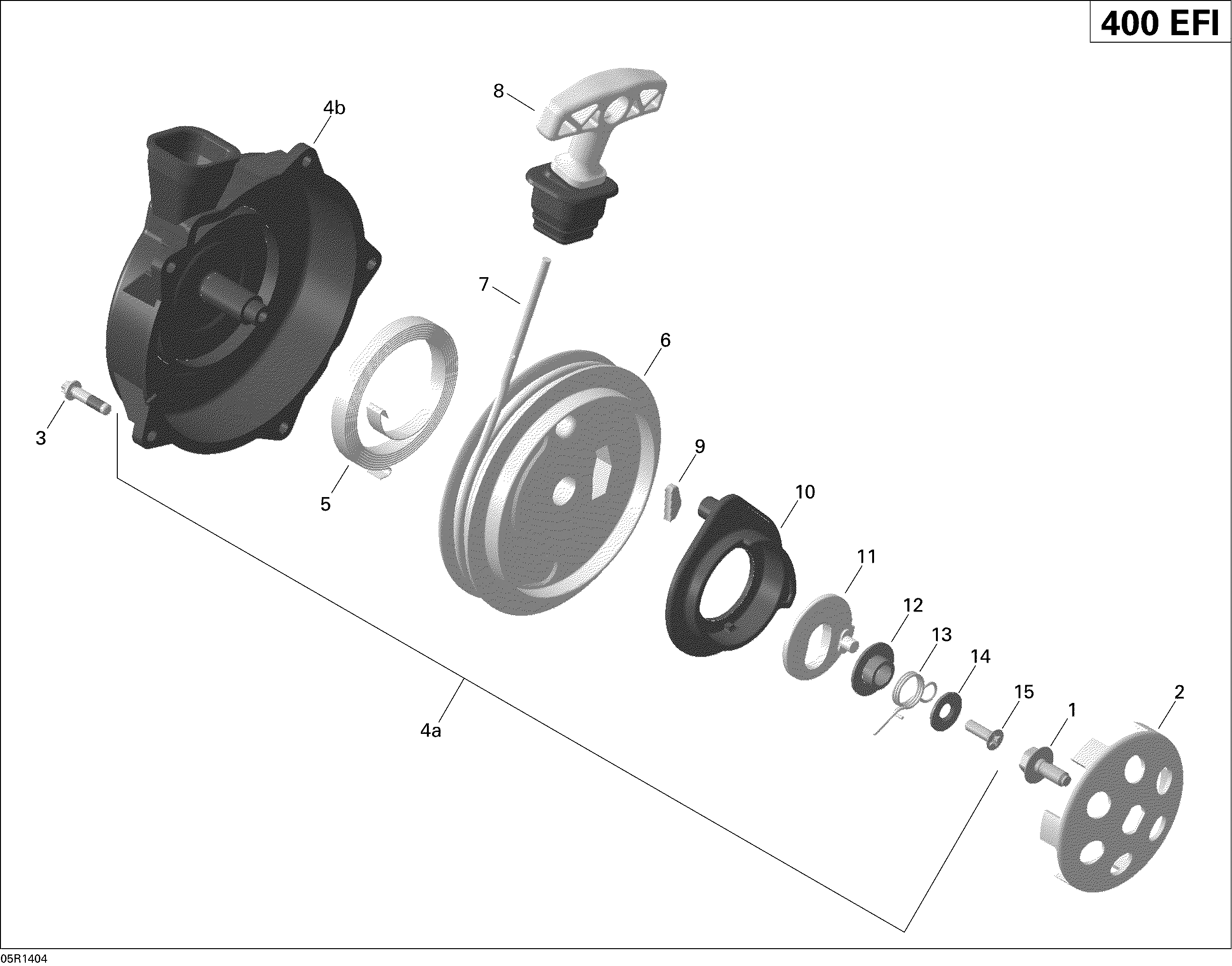

04- Rewind Starter для BRP Outlander 400 EFI, STD, XT - 2014
-
№АртикулНазвание
-
1420241721 Hex. Collar Screw M8 X 20Hex. Collar Screw M8 X 20
-
2420852501 Starting PulleyStarting Pulley
-
3420240031 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
4a715001034 Starter Rope Housing Ass'y. Includes 4a to 15Starter Rope Housing Ass'y. Includes 4a to 15
-
4b420610930 Starter Rope HousingStarter Rope Housing
-
5420939115 Rewind SpringRewind Spring
-
6420852283 Rope SheaveRope Sheave
-
7412500200 Starter Rope, MeterStarter Rope, Meter
-
8420852555 Starting Grip With Rubber BufferStarting Grip With Rubber Buffer
-
9420852070 Key ClampKey Clamp
-
10420852299 PawlPawl
-
11420852306 Lock PawlLock Pawl
-
12420847927 Stage SleeveStage Sleeve
-
13420938989 Locking SpringLocking Spring
-
14420244320 Flat WasherFlat Washer
-
15420241730 Plastite Screw M6 X 20Plastite Screw M6 X 20
