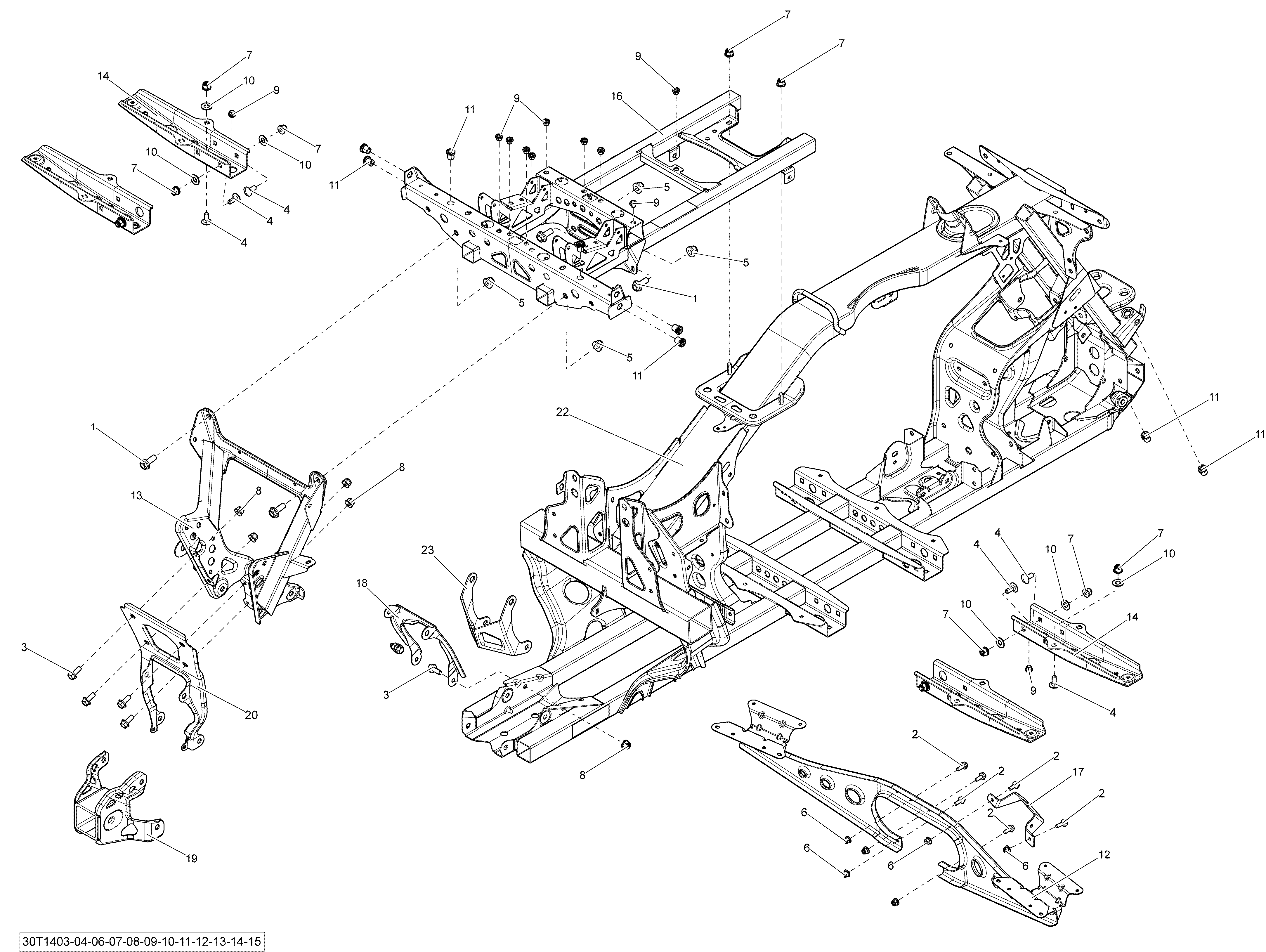

09- Frame для BRP Outlander 1000EFI, DPS, XT & XT-P - 2014

  • №
    Артикул
    Название
  • 1
    207602546 Hex. Flanged Screw M10 X 25
    Hex. Flanged Screw M10 X 25
  • 3
    207682046 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 4
    207782044 Carriage Bolt, M8 X 20
    Carriage Bolt, M8 X 20
  • 5
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 7
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 8
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
  • 9
    293450232 Insert
    Insert
  • 10
    234001410 Flat Washer 10 mm
    Flat Washer 10 mm
  • 11
    293450307 Insert
    Insert
  • 13
    705201907 Welded Rear Support
    Welded Rear Support
  • 14
    705202021 Footrest Support
    Footrest Support
  • 16
    705202291 Welded Extension, Black
    Welded Extension, Black
  • 18
    705202900 Front Link
    Front Link
  • 19
    715001329 Welded Hitch, Black
    Welded Hitch, Black
  • 20
    705203301 Rear Support
    Rear Support
  • 22
    705203598 Frame, Black
    Frame, Black
