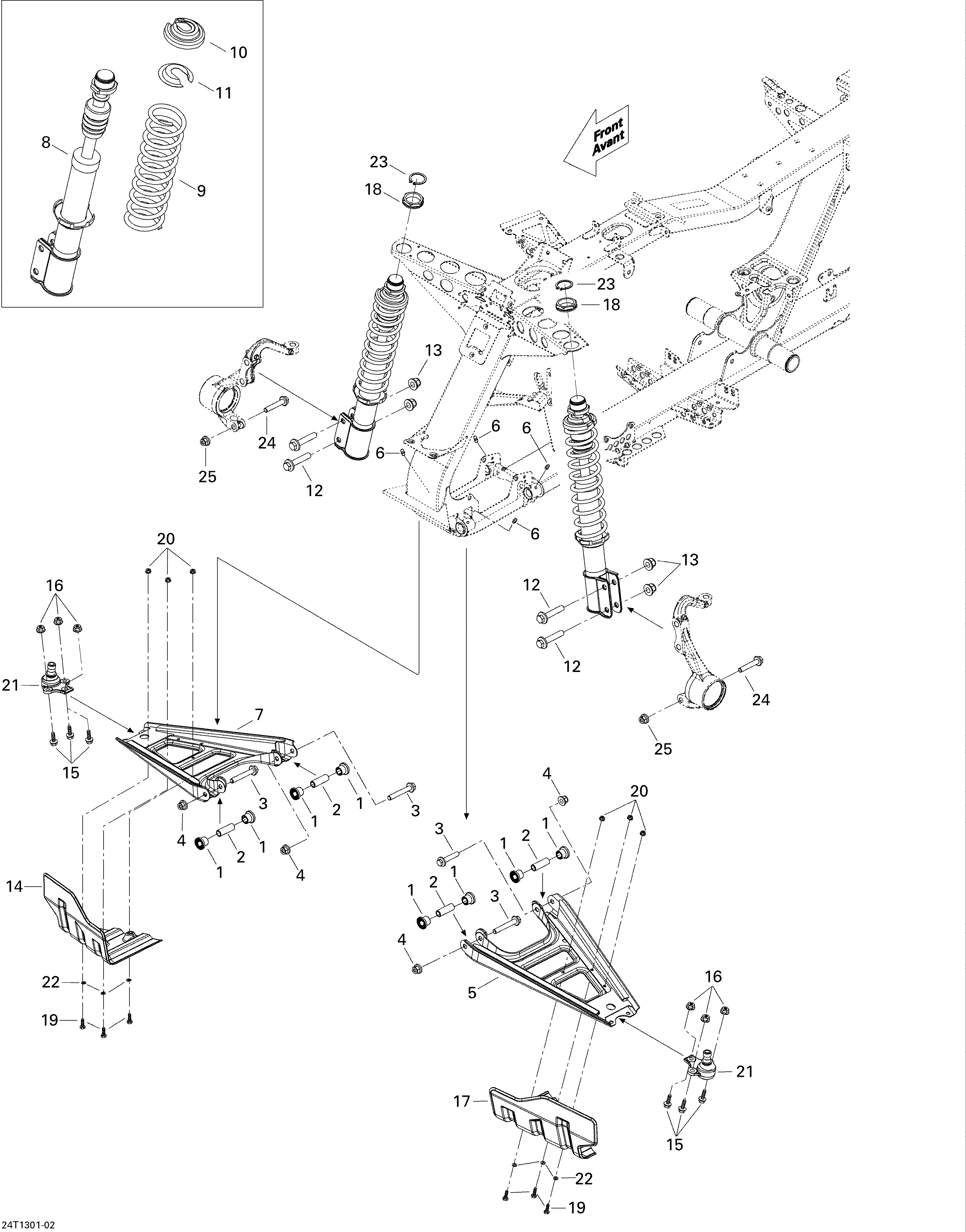

07- Front Suspension для BRP Outlander Max STD, XT, 400 EFI - 2013
-
№АртикулНазвание
-
1706200181 CushionCushion
-
2706201587 Inner BushingInner Bushing
-
3207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
4233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
5706201050 Suspension Arm, BlackSuspension Arm, Black
-
6408200700 Grease FittingGrease Fitting
-
7706201050 Suspension Arm, BlackSuspension Arm, Black
-
8706200658 Front ShockFront Shock
-
9706200818 Front SpringFront Spring
-
10706200882 Stopper SpringStopper Spring
-
11706200793 CapCap
-
12207626046 Hex. Flanged Screw M12 X 60Hex. Flanged Screw M12 X 60
-
13233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
14706200214 RH ProtectorRH Protector
-
15207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
16233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
17706200213 LH ProtectorLH Protector
-
18706200443 NutNut
-
19207151644 Hex. Screw M5 X 16Hex. Screw M5 X 16
-
20233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
21706200444 Joint AttachmentJoint Attachment
-
22391301700 WasherWasher
-
23293370009 Circlip 32 mmCirclip 32 mm
-
24207604544 Hex. Flanged Screw M10 X 45Hex. Flanged Screw M10 X 45
-
25233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
