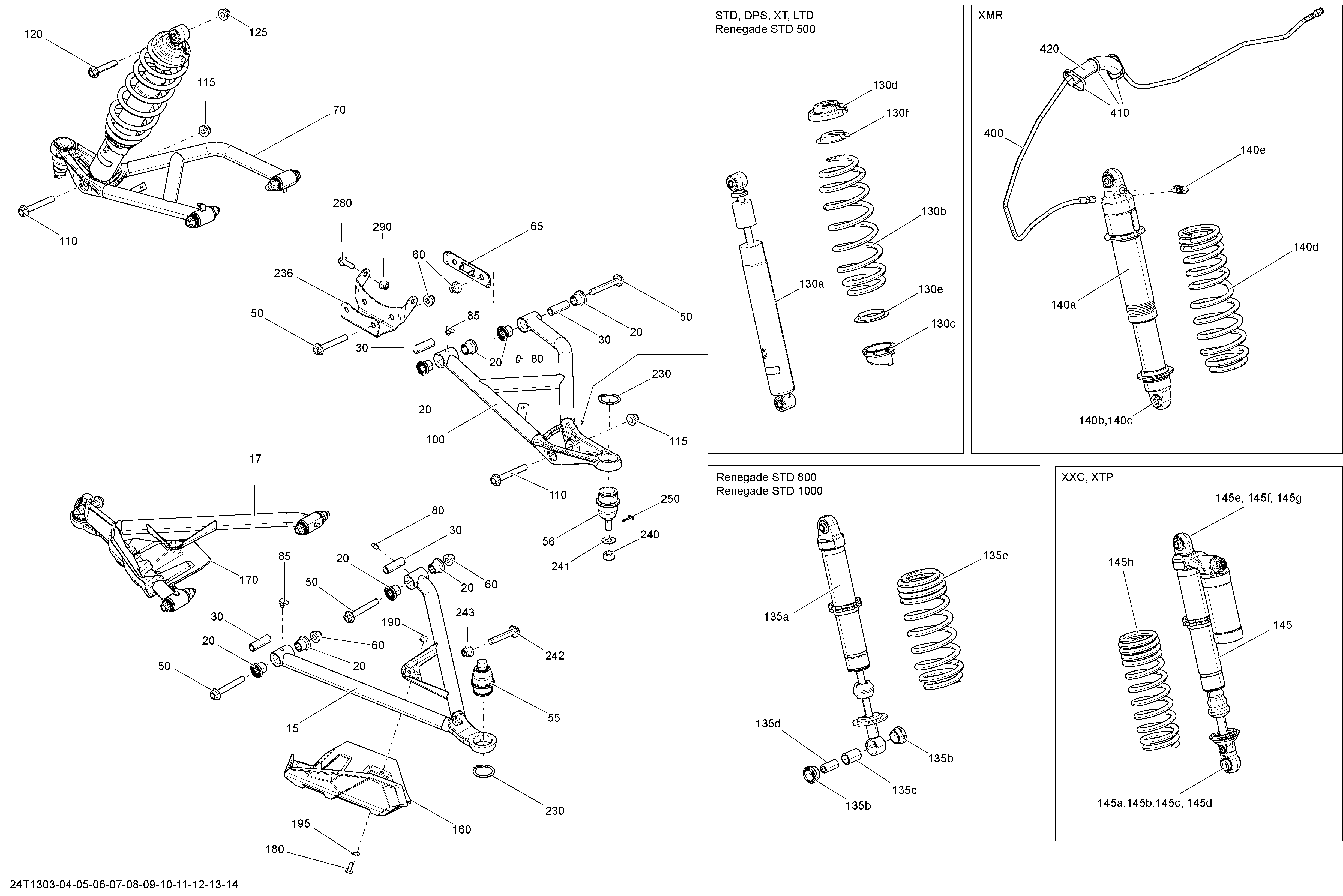

07- Front Suspension для BRP Outlander MAX 500EFI STD, DPS & XT - 2013

  • №
    Артикул
    Название
  • 15
    706200955 LH Lower Arm
    LH Lower Arm
  • 17
    706200984 RH Lower Arm
    RH Lower Arm
  • 20
    703500875 Bushing Kit. Includes 30
    Bushing Kit. Includes 30
  • 30
    703500875 Bushing Kit. Includes 20
    Bushing Kit. Includes 20
  • 50
    207607046 Hex. Flanged Screw M10 X 70
    Hex. Flanged Screw M10 X 70
  • 55
    706201393 Ball Joint
    Ball Joint
  • 56
    706201394 Ball Joint
    Ball Joint
  • 60
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 65
    706200998 Front Suspension Cross Plate
    Front Suspension Cross Plate
  • 70
    706201527 RH Upper Arm
    RH Upper Arm
  • 80
    408200700 Grease Fitting
    Grease Fitting
  • 85
    293550056 Grease Fitting 90°
    Grease Fitting 90°
  • 100
    706201526 LH Upper Arm
    LH Upper Arm
  • 110
    207607587 Flanged Hex. Screw M10 X 75
    Flanged Hex. Screw M10 X 75
  • 115
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 120
    207605546 Flanged Hex. Screw M10 X 55
    Flanged Hex. Screw M10 X 55
  • 125
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 130a
    706201243 Shock Absorber. Outlander MAX, STD, DPS, XT
    Shock Absorber. Outlander MAX, STD, DPS, XT
  • 130b
    706201649 Black Spring. Outlander MAX, STD, DPS
    Black Spring. Outlander MAX, STD, DPS
  • 130b
    706201251 Black Spring. Outlander MAX, XT
    Black Spring. Outlander MAX, XT
  • 130c
    505070150 Adjustment Cam
    Adjustment Cam
  • 130d
    706200881 Spring Stopper
    Spring Stopper
  • 130e
    503187500 Spring Guide
    Spring Guide
  • 130f
    503191610 Cap. Outlander MAX
    Cap. Outlander MAX
  • 160
    706201303 LH Protector
    LH Protector
  • 170
    706201304 RH Protector
    RH Protector
  • 180
    250000129 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 190
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 195
    234062670 Flat Washer
    Flat Washer
  • 230
    293370035 Circlip
    Circlip
  • 236
    705203247 Upper Front Holder
    Upper Front Holder
  • 240
    250100099 Nut M12
    Nut M12
  • 241
    706200281 Hardened Washer
    Hardened Washer
  • 242
    207606044 Hex. Flange Screw M10 X 60
    Hex. Flange Screw M10 X 60
  • 243
    233201434 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 250
    211400017 Cotter Pin
    Cotter Pin
  • 280
    207682544 Hex. Flanged Screw M8 X 25
    Hex. Flanged Screw M8 X 25
  • 290
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
