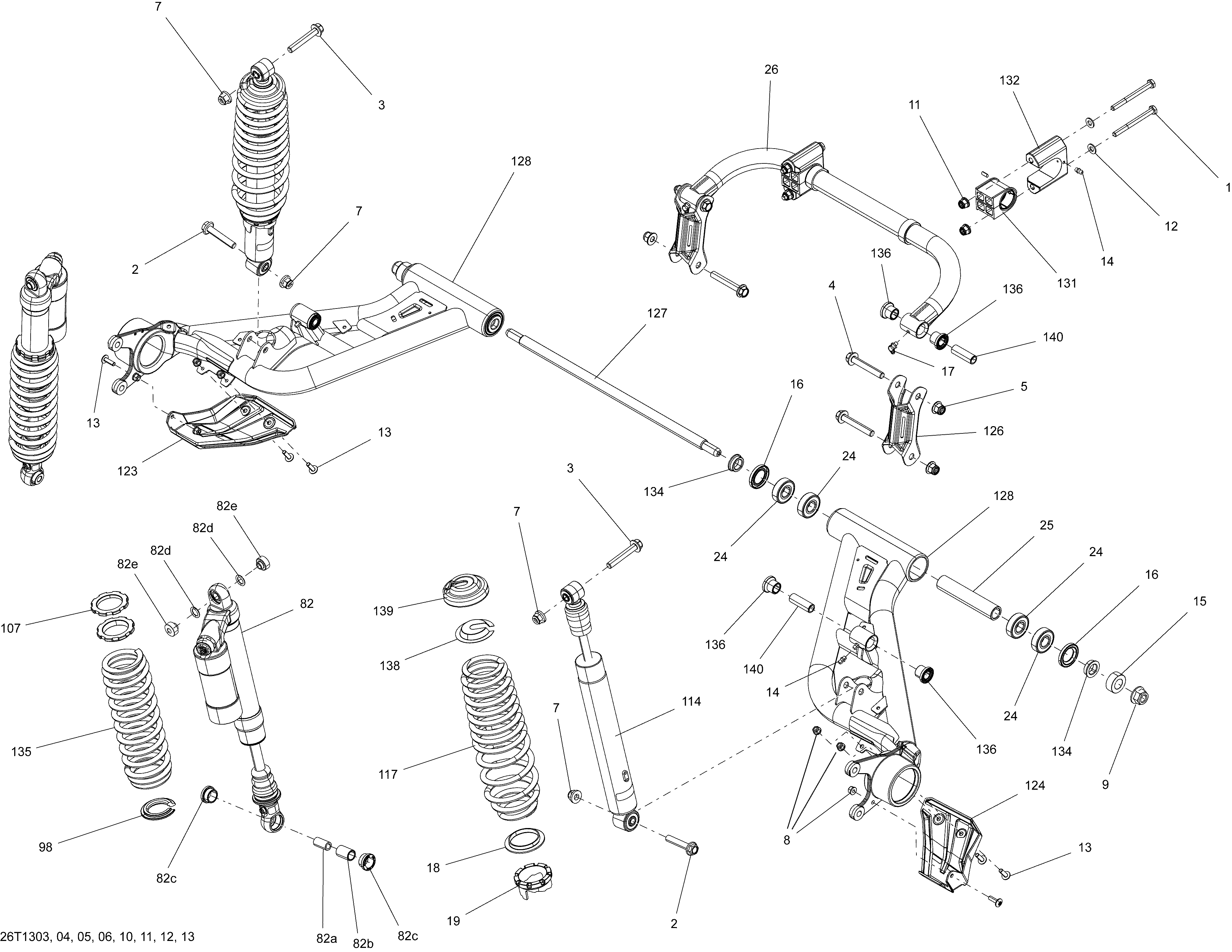

08- Rear Suspension для BRP Outlander MAX 1000EFI, DPS, XT & XT-P - 2013

  • №
    Артикул
    Название
  • 1
    207088587 Hex,. Screw M8 X 85
    Hex,. Screw M8 X 85
  • 2
    207605546 Flanged Hex. Screw M10 X 55
    Flanged Hex. Screw M10 X 55
  • 3
    207606046 Flanged Hex. Screw M10 X 60
    Flanged Hex. Screw M10 X 60
  • 4
    207606536 Hex Flange Screw M10 X 65
    Hex Flange Screw M10 X 65
  • 5
    233201414 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 7
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 8
    233211466 Hex. Flanged Elastic Nut M16
    Hex. Flanged Elastic Nut M16
  • 9
    233211466 Hex. Flanged Elastic Nut M16
    Hex. Flanged Elastic Nut M16
  • 11
    233281434 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 12
    234081430 Flat Washer M8
    Flat Washer M8
  • 13
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 14
    250000315 Grease Fitting
    Grease Fitting
  • 15
    250200112 Flat Washer M17
    Flat Washer M17
  • 16
    293200132 Seal
    Seal
  • 17
    293550056 Grease Fitting 90°
    Grease Fitting 90°
  • 18
    503187500 Spring Guide. DPS
    Spring Guide. DPS
  • 18
    503187500 Spring Guide. XT
    Spring Guide. XT
  • 19
    505070150 Adjustment Cam. DPS
    Adjustment Cam. DPS
  • 19
    505070150 Adjustment Cam. XT
    Adjustment Cam. XT
  • 24
    706000826 Ball Bearing
    Ball Bearing
  • 25
    706000828 Spacer
    Spacer
  • 26
    706000988 Swaybar
    Swaybar
  • 82
    706000868 Rear Shock. XTP
    Rear Shock. XTP
  • 82a
    706201586 Bushing Sleeve. XTP
    Bushing Sleeve. XTP
  • 82b
    706201585 Bushing Sleeve. XTP
    Bushing Sleeve. XTP
  • 82c
    706201648 Bushing. XTP
    Bushing. XTP
  • 82d
    715500360 O-Ring Bushing. XTP
    O-Ring Bushing. XTP
  • 82e
    715500361 Interior Bushing. XTP
    Interior Bushing. XTP
  • 114
    706000958 Shock. DPS
    Shock. DPS
  • 114
    706000970 Rear Shock. XT
    Rear Shock. XT
  • 117
    706000971 Black Spring. DPS
    Black Spring. DPS
  • 117
    706000971 Black Spring. XT
    Black Spring. XT
  • 123
    706001009 LH Protector
    LH Protector
  • 124
    706001010 RH Protector
    RH Protector
  • 126
    706001020 Swaybar Linkage
    Swaybar Linkage
  • 127
    706001364 Axial Pivot M16
    Axial Pivot M16
  • 128
    706000722 LH Swing Arm, Black
    LH Swing Arm, Black
  • 128
    706000723 RH Swing Arm, Black
    RH Swing Arm, Black
  • 131
    706001098 Cushion
    Cushion
  • 132
    706001099 Bushing Holder
    Bushing Holder
  • 134
    706001282 Spacer
    Spacer
  • 135
    706001362 Black Spring. XTP
    Black Spring. XTP
  • 136
    703500875 Bushing Kit. Includes 140
    Bushing Kit. Includes 140
  • 138
    706200785 Cap
    Cap
  • 139
    706200881 Spring Stopper
    Spring Stopper
  • 140
    703500875 Bushing Kit. Includes 136
    Bushing Kit. Includes 136
